ARDMS Abdomen Sonography Examination AB-Abdomen Exam Dumps: Updated Questions & Answers (October 2025)

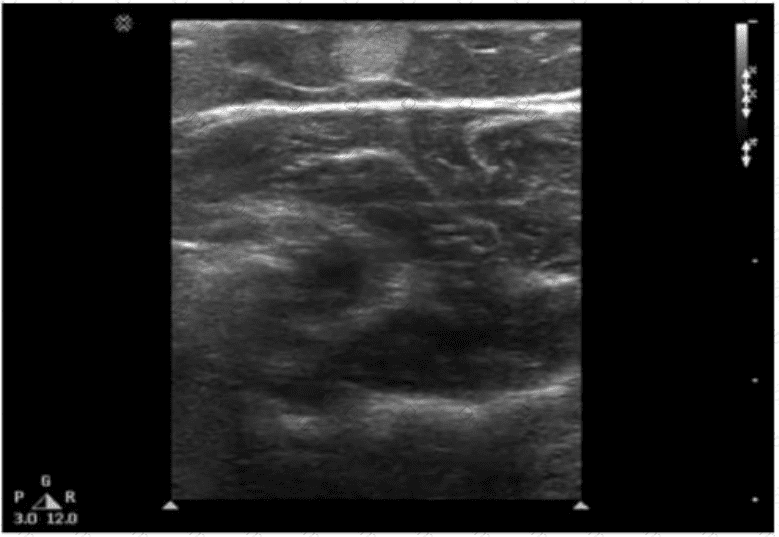

The ultrasound image demonstrates a well-defined, ovoid, hypoechoic to isoechoic mass within the subcutaneous tissue of the abdominal wall. The lesion appears compressible and shows linear striations parallel to the skin surface — a classic appearance of a lipoma.

Lipomas are the most common benign soft tissue tumors and frequently arise in the subcutaneous tissue. They are composed of mature adipose tissue and are typically asymptomatic unless large or compressing adjacent structures.

Sonographic features of a lipoma:

Isoechoic to mildly hyperechoic or hypoechoic relative to subcutaneous fat

Oval or elliptical in shape with well-defined margins

Internal linear striations or “feathered” echotexture

Compressible and non-vascular on Doppler imaging

Located in subcutaneous fat plane parallel to the skin surface

Differentiation from other options:

B. Fibroma: Typically appears as a homogeneous, hypoechoic mass but is far less common in the abdominal wall.

C. Desmoid: Appears as an ill-defined or infiltrative mass within deeper soft tissues; more heterogeneous and may distort surrounding tissue planes.

D. Metastasis: Often more irregular, heterogeneous, and may show increased vascularity or invasion into adjacent structures.

On ultrasound, tendons appear as cord-like hyperechoic structures with linear fibrillar echotexture when imaged in long axis. The fibrils are highly reflective, creating the typical hyperechoic appearance. Posterior shadowing is not typical unless there is calcification.

According to Rumack’s Diagnostic Ultrasound:

“Tendons have a highly organized hyperechoic linear fibrillar pattern when examined along their long axis.”

Prostate adenocarcinoma is by far the most common malignancy of the prostate gland, typically arising in the peripheral zone. Seminoma is a testicular tumor, sarcomas are rare in the prostate, and hamartomas are benign lesions.

According to Rumack’s Diagnostic Ultrasound:

“Adenocarcinoma accounts for the vast majority of prostate cancers and is typically located in the peripheral zone.”

Salivary glands are superficial structures, and high-frequency transducers (10–15 MHz) are optimal to obtain high spatial resolution. Lower frequencies are inappropriate as they lack sufficient resolution for superficial structures. A 12 MHz transducer provides excellent detail necessary for detecting small lesions, duct abnormalities, and vascular structures.

According to Rumack et al., Diagnostic Ultrasound:

"High-frequency linear transducers (10–15 MHz) are recommended for evaluating superficial structures such as salivary glands." (Rumack CM et al., Diagnostic Ultrasound, 5th ed.).

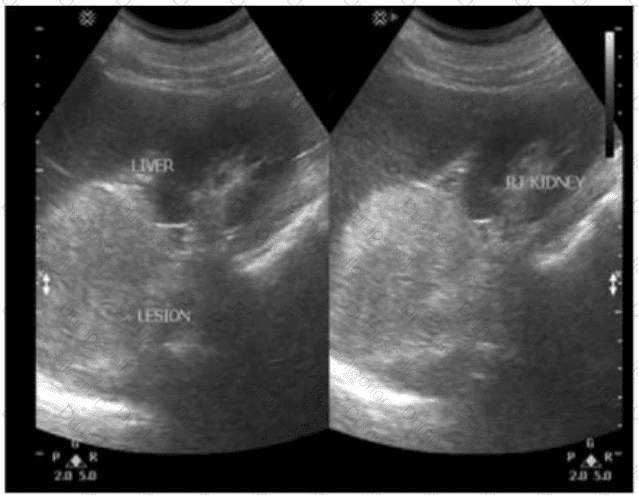

The ultrasound images show a heterogeneous, solid-appearing mass within the right kidney. The patient has a history of hypertension and hematuria—classic clinical features that raise suspicion for renal cell carcinoma (RCC), especially in an adult.

Renal cell carcinoma is the most common primary malignant tumor of the kidney in adults. Common presenting symptoms include:

Hematuria (most frequent symptom)

Flank pain

Palpable abdominal mass

Hypertension (due to increased renin secretion)

Sometimes paraneoplastic syndromes (e.g., polycythemia due to erythropoietin production)

Ultrasound Features of RCC:

Solid renal mass, often with heterogeneous echotexture

May contain cystic components, calcifications, or necrotic areas

May distort the renal contour

Doppler may show internal vascularity

Differentiation from other options:

B. Adenoma: Rare and typically small, benign cortical lesions. They do not typically present with hematuria or hypertension and cannot be reliably distinguished from RCC on ultrasound.

C. Nephroblastoma (Wilms tumor): Pediatric renal tumor seen almost exclusively in children under age 5.

D. Pheochromocytoma: Arises from the adrenal gland (not the kidney); associated with hypertension but not hematuria.

A varicocele is an abnormal dilatation of the pampiniform plexus veins, usually seen on the left side due to the perpendicular insertion of the left testicular vein into the left renal vein, making it more susceptible to elevated venous pressure. Sonographically, varicoceles appear as multiple serpiginous anechoic tubular structures that show venous flow on color Doppler, often accentuated with Valsalva maneuver.

Hydrocele (A) is a fluid collection surrounding the testis.

Hematocele (C) is blood within the tunica vaginalis.

Spermatocele (D) is a cystic lesion arising from the epididymis.

Reference Extracts:

Dogra VS, Bhatt S. "Sonographic evaluation of testicular varicoceles." Journal of Ultrasound in Medicine. 2004;23(6): 829-838.

Rumack CM, Wilson SR, Charboneau JW, Levine D. Diagnostic Ultrasound. 5th ed. Elsevier, 2017.

—

Scrotal inflammation, such as epididymitis or orchitis, typically presents with increased blood flow (hyperemia) on color Doppler sonography. This finding reflects the inflammatory process and vascular dilation. Abscesses, granulomas, or hydroceles may be present but are not as consistent or specific for inflammation.

According to AIUM Practice Parameters and Rumack’s Diagnostic Ultrasound:

“In acute inflammation, color Doppler ultrasound demonstrates prominent hyperemia of the epididymis or testis.”

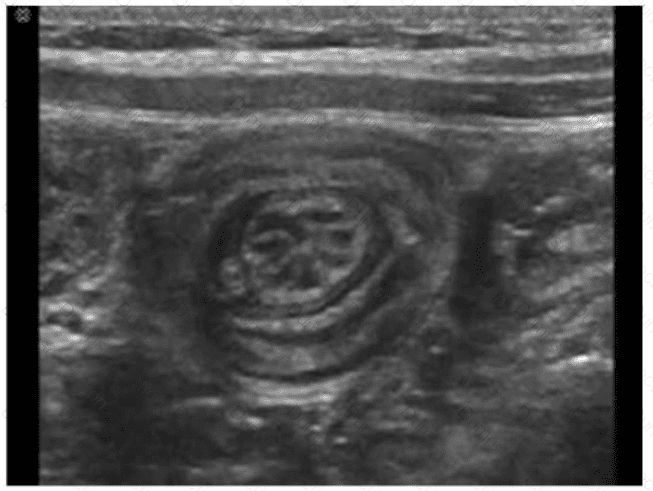

The ultrasound image shows a classic “target sign” or “donut sign,” characterized by concentric rings of alternating echogenicity. This sonographic finding is pathognomonic for intussusception, particularly when seen in the transverse plane.

Intussusception occurs when a segment of bowel telescopes into an adjacent segment, typically in children aged 6 months to 3 years. It commonly presents with intermittent abdominal pain, vomiting, and sometimes “red currant jelly” stools.

Key ultrasound features of intussusception:

Target sign in transverse view (concentric rings of bowel layers)

Pseudokidney or sandwich sign in longitudinal view

May show intraluminal mesenteric fat or vessels dragged in with the intussusceptum

Comparison of answer choices:

A. Bowel obstruction may show dilated loops of bowel with air-fluid levels and to-and-fro peristalsis but lacks the concentric ring sign.

B. Diverticulitis typically shows bowel wall thickening and pericolic fat stranding; not the concentric target appearance.

C. Appendicitis may appear as a blind-ending tubular structure (>6 mm), not with concentric ring pattern.

D. Intussusception — Correct. The image demonstrates the classic target sign seen with this condition.

The hallmark feature of focal nodular hyperplasia (FNH) is a central stellate scar seen on imaging. This fibrous scar may not always be seen on ultrasound but is a classic distinguishing feature from hepatic adenomas, which usually lack a central scar.

According to Rumack’s Diagnostic Ultrasound:

“Focal nodular hyperplasia often demonstrates a central stellate scar, which may be echogenic or isoechoic.”

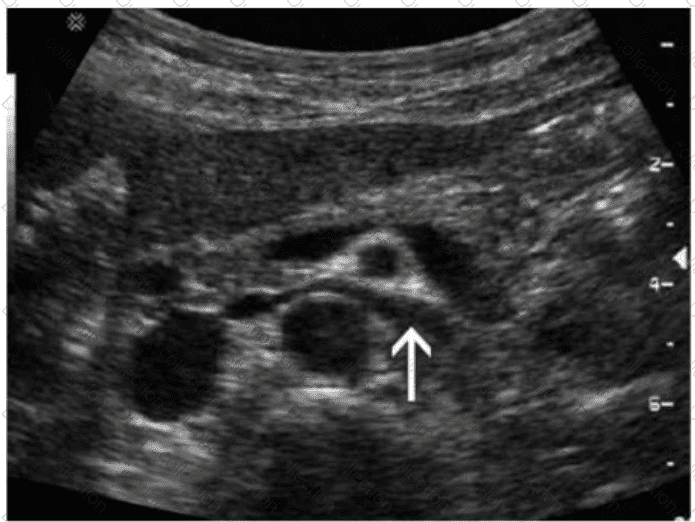

The ultrasound image shows a transverse section through the upper abdomen. The arrow is pointing to a vascular structure running posterior to the pancreas and anterior to the left kidney. This vessel is the splenic vein.

Anatomically:

The splenic vein runs along the posterior border of the pancreas.

It courses medially to join the superior mesenteric vein (SMV) and form the portal vein.

It receives tributaries from the spleen, short gastric veins (draining the stomach), and the inferior mesenteric vein.

In this case, the question asks which organ is primarily drained via the vessel marked by the arrow. The splenic vein's main tributary is from the spleen.

Comparison of answer choices:

A. Spleen — Correct. The splenic vein is the primary drainage vessel for the spleen.

B. Stomach — Some gastric veins drain into the splenic vein, but the primary drainage is via left and right gastric veins into the portal system.

C. Left kidney — Drains into the left renal vein, not the splenic vein.

D. Duodenum — Drains mainly into the superior mesenteric vein (SMV).
