A customer would like to use Brocade VDX switches for connectivity to servers running at 100 Mbps and 1000 Mbps. The customer would also like the option to upgrade the switch ports to 10 Gbps for additional bandwidth in the near future.
Which Brocade VDX switch should you use?
Your customer wants to establish a LAG connection on a Brocade VDX 6740T-1G connecting to another vendor's switch using 1 GbE interfaces. Every time they try to enable the port channel, the interfaces shut down.
In this situation, which statement is true?
What are two valid ways to transfer firmware to a Brocade VDX when you perform a firmware upgrade? (Choose two.)
Which two statements are true when traffic is transmitted over a fabric ISL trunk? (Choose two.)
A customer has a four-port vLAG between two VDX switches and a server. Two of the four links are up but the vLAG will not come up.
VDX8770_3-131# show interface po 710
Port-channel 710 is up, line protocol is down (link protocol down)
Hardware is AGGREGATE, address is 0005.33d4.0d2c
Current address is 0005.33d4.0d2c
Interface index (ifindex) is 671089350
Minimum number of links to bring Port-channel up is 3
MTU 2500 bytes
LineSpeed Actual : Nil
Allowed Member Speed : 10000 Mbit
Priority Tag disable
IPv6 RA Guard disable
Last clearing of show interface counters: 2d05h53m
Queueing strategy: fifo
Receive Statistics:
0 packets, 0 bytes
Unicasts: 0, Multicasts: 0, Broadcasts: 0
64-byte pkts: 0, Over 64-byte pkts: 0, Over 127-byte pkts: 0
Over 255-byte pkts: 0, Over 511-byte pkts: 0, Over 1023-byte pkts: 0
Over 1518-byte pkts(Jumbo): 0
Runts: 0, Jabbers: 0, CRC: 0, Overruns: 0
Errors: 0, Discards: 0
Transmit Statistics:
0 packets, 0 bytes
Unicasts: 0, Multicasts: 0, Broadcasts: 0
Underruns: 0
Errors: 0, Discards: 0
Rate info (interval 299 seconds):
Input 0.000000 Mbits/sec, 0 packets/sec, 0.00% of line-rate
Output 0.000000 Mbits/sec, 0 packets/sec, 0.00% of line-rate
Time since last interface status change: 2d05h53m
What should the customer do to bring the vLAG online?
A Brocade VCS Fabric is running NOS 4.1.1 on two Brocade VDX 8770s and four Brocade VDX 6740s in logical chassis mode. You are required to deploy FCoE servers and Layer 3 features in the solution.
Which two licenses are required? (Choose two.)

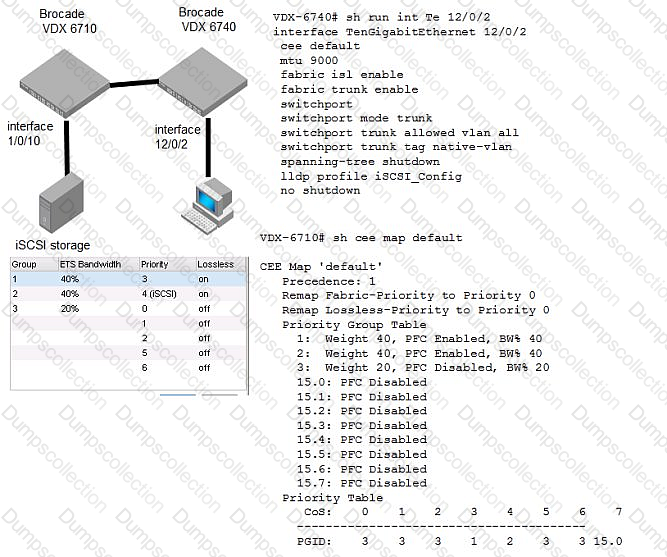

-- Exhibit –
-- Exhibit --
Click the exhibit button.
You notice that iSCSI traffic is slow on the iSCSI storage device. The
Brocade VCS Fabric is in logical-chassis mode.
Which two actions would increase performance? (Choose two.)
Your customer is using Brocade Network Advisor as a trap recipient for a Brocade VCS Fabric. A Brocade VDX is discovered and the customer is testing SNMP traps by removing the power supply. You are not receiving traps.
Which three actions will determine the problem? (Choose three.)

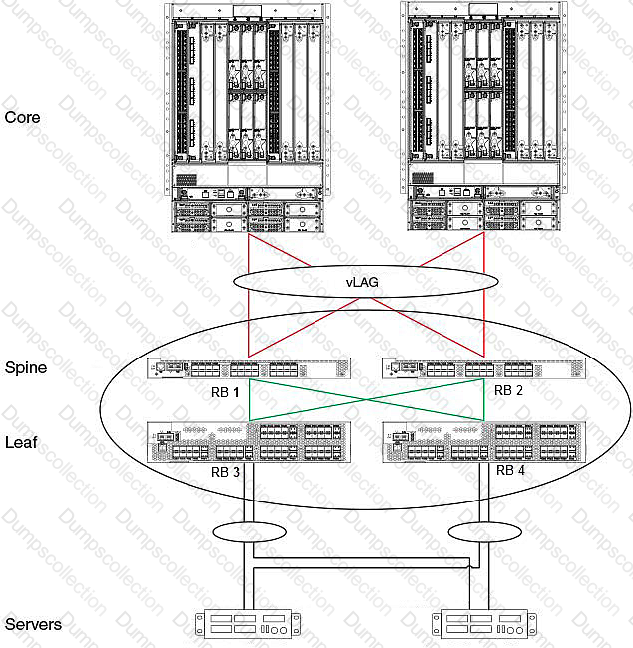

Referring to the exhibit,
to minimize downtime, what is the Brocade recommended approach to fabric node upgrades?
You are asked to implement PIM in your existing Brocade VCS Fabric running NOS 4.1. The fabric consists of VDX 8770s, VDX 6740s, VDX 6730s, and VDX 6720s.
On which two Brocade VDX models would this be implemented? (Choose two.)
