Cisco Designing and Implementing Cloud Connectivity (ENCC) 300-440 Exam Dumps: Updated Questions & Answers (September 2025)

The connectivity model that meets the requirements of high availability, redundancy, and low latency for the company’s business applications is ExpressRoute with private peering using SDCI.

ExpressRoute is a service that provides a dedicated, private, and high-bandwidth connection between the customer’s on-premises network and Microsoft Azure cloud network1.

Private peering is a type of ExpressRoute circuit that allows the customer to access Azure services that are hosted in a virtual network, such as virtual machines, storage, and databases2.

SDCI (Secure Data Center Interconnect) is a Cisco solution that enables secure and scalable connectivity between multiple data centers and cloud providers, using technologies such as MPLS, IPsec, and SD-WAN3.

By using ExpressRoute with private peering and SDCI, the company can achieve the following benefits:

High availability: ExpressRoute circuits are redundant and resilient, and can be configured with multiple service providers and locations for failover and load balancing1. SDCI also provides high availability by using dynamic routing protocols and encryption mechanisms to ensure optimal and secure path selection3.

Redundancy: ExpressRoute circuits can be paired together to form a redundant connection between the customer’s network and Azure4. SDCI also supports redundancy by allowing multiple connections between data centers and cloud providers, using different transport technologies and service levels3.

Low latency: ExpressRoute circuits offer lower latency than public internet connections, as they bypass the congestion and variability of the internet1. SDCI also reduces latency by using MPLS and SD-WAN to optimize the performance and quality of service for the traffic between data centers and cloud providers3.

References:

What is Azure ExpressRoute?

Azure ExpressRoute peering

Cisco Secure Data Center Interconnect

ExpressRoute circuit and routing domain

To send traffic into an IPsec tunnel to the cloud VPN gateway, the engineer must configure two actions:

Configure access lists that match the interesting user traffic. This is the traffic that needs to be encrypted and sent over the IPsec tunnel. The access lists are applied to the crypto map that defines the IPsec parameters for the tunnel.

Configure policy-based routing (PBR). This is a technique that allows the engineer to override the routing table and forward packets based on a defined policy. PBR can be used to send specific traffic to the IPsec tunnel interface, regardless of the destination IP address. This is useful when the cloud VPN gateway has a dynamic IP address or when multiple cloud VPN gateways are available for load balancing or redundancy. References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Implementing IPsec VPNs to the Cloud, Topic: Configuring IPsec VPNs on Cisco IOS XE Routers

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs, Topic: Configuring Crypto Maps

[Cisco IOS XE Gibraltar 16.12.x Feature Guide], Chapter: Policy-Based Routing, Topic: Policy-Based Routing Overview

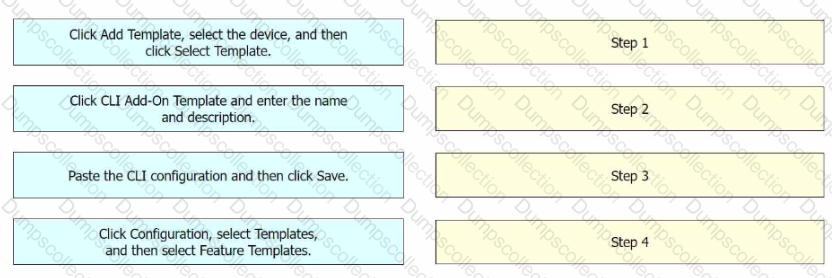

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Select Template. Step 3 = Click CLI Add-On Template and enter the name and description. Step 4 = Paste the CLI configuration and then click Save.

The process of configuring a CLI add-on feature template in Cisco vManage for enhanced policy-based routing (ePBR) for IPv4 involves several steps1234.

Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.

Click Add Template, select the device, and then click Select Template: In this step, you add a new template for the device1.

Click CLI Add-On Template and enter the name and description: After setting up the template, you select the CLI Add-On Template option, and then enter the name and description for the template1.

Paste the CLI configuration and then click Save: Finally, you paste the CLI configuration into the template and save the changes1.

References :=

CLI Add-On Feature Templates - Cisco

Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates

Cisco SD-WAN vSmart CLI Template - NetworkLessons.com

CLI Templates for Cisco XE SD-WAN Routers

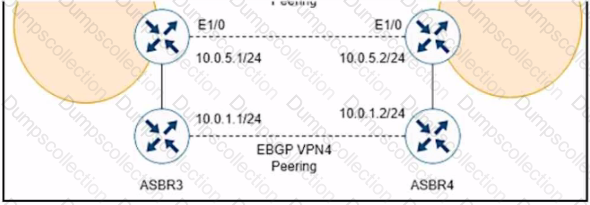

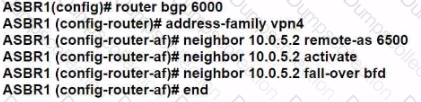

The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise-best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receivestwo paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails. References := IP Routing: BGP Configuration Guide - BGP Additional Paths … - Cisco, BGP Additional Paths

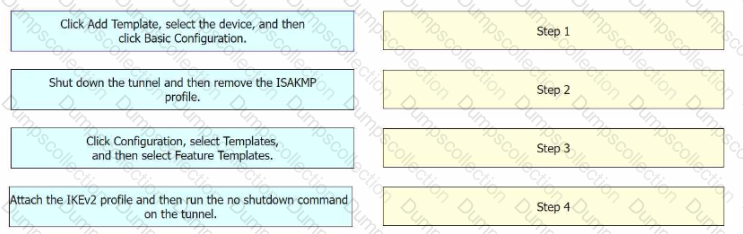

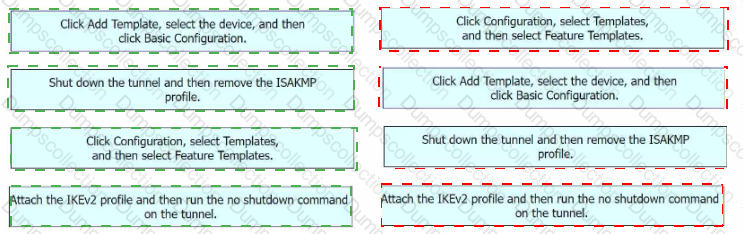

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Basic Configuration. Step 3 = Shut down the tunnel and then remove the ISAKMP profile. Step 4 = Attach the IKEv2 profile and then run the no shutdown command on the tunnel.

The process of configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router in Controller mode and AWS, and changing the IKE version from IKEv1 to IKEv2 in Cisco vManage involves several steps123.

Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.

Click Add Template, select the device, and then click Basic Configuration: In this step, you add a new template for the device and proceed with the basic configuration1.

Shut down the tunnel and then remove the ISAKMP profile: Before changing the IKE version, you need to shut down the existing tunnel and remove the ISAKMP profile that is configured for IKEv12.

Attach the IKEv2 profile and then run the no shutdown command on the tunnel: Finally, you attach the newly created IKEv2 profile to the tunnel and bring the tunnel back up2.

References :=

Configuring Internet Key Exchange Version 2 (IKEv2) - Cisco

Switch from IKEv1 to IKEv2 on Cisco Routers - Cisco Community

Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition. This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD-WAN devices in the overlay network1

References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

According to the FedRAMP Authorization Boundary Guidance document1, the method used to create authorization boundary diagrams (ABDs) is to identify all tools as either external orinternal to the boundary. The ABD is a visual representation of the components that make up the authorization boundary, which includes all technologies, external and internal services, and leveraged systems and accounts for all federal information, data, and metadata that a Cloud Service Offering (CSO) is responsible for. The ABD should illustrate a CSP’s scope of control over the system and show components or services that are leveraged from external services or controlled by the customer1. The other options are incorrect because they do not capture the full scope and details of the authorization boundary as required by FedRAMP. References := FedRAMP Authorization Boundary Guidance document1

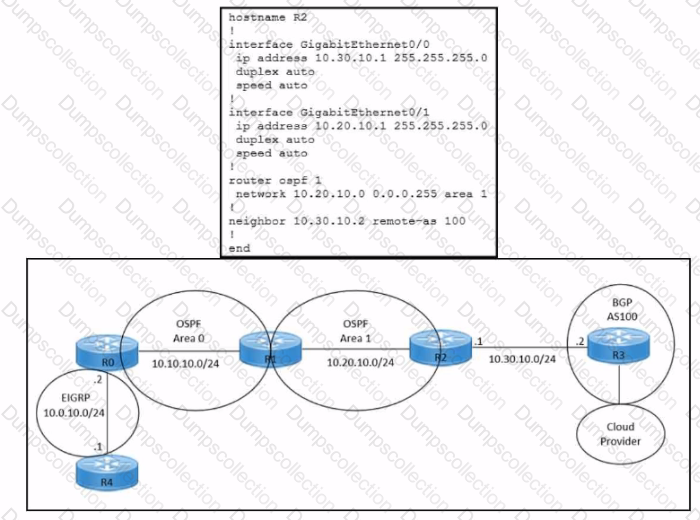

To redistribute OSPF internal routes into BGP, the engineer needs to configure two commands on router R2. The first command is router bgp 100, which enables BGP routing process and specifies the autonomous system number of 100. The second command is redistribute ospf 1 match internal external, which redistributes the routes from OSPF process 1 into BGP, and matches both internal and external OSPF routes. This way, the engineer can avoid introducing extra routes that are not part of OSPF process 1, such as the default route or the connected routes. References: = Designing and Implementing Cloud Connectivity (ENCC) v1.0, [ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS], [Deploying Cisco IOS VTI-Based Point-to-Point IPsec VPNs]

Enhanced Policy-Based Routing (ePBR) is used to direct packets that arrive at an interface to a specified next-hop. It is very useful in managing a large number of configured access lists more efficiently. In ePBR, the router drops the traffic packets if the next hop configured in the PBR policy is not reachable. To avoid packet loss in such scenarios, you must configure multiple next hops for each access control entry.

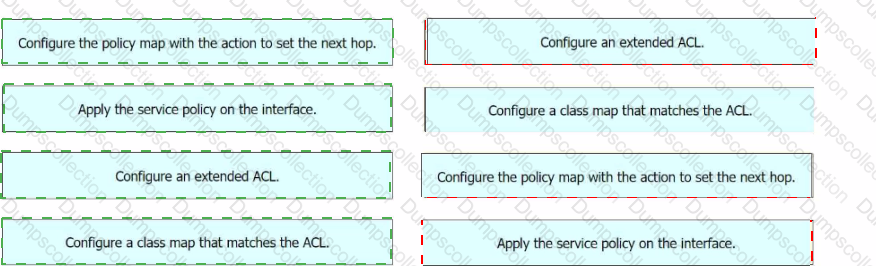

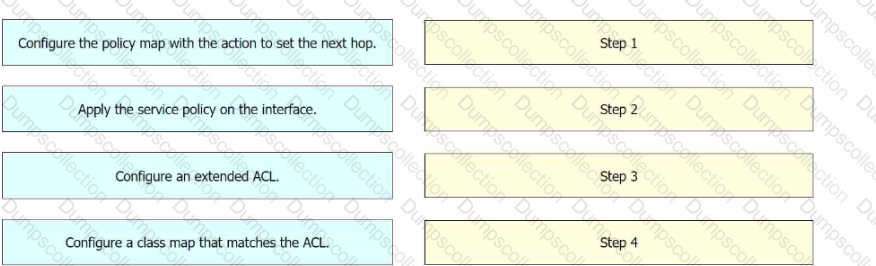

Here are the steps to configure ePBR for IPv4 using Cisco vManage:

Configure an extended ACL: This step involves defining the network or the host. For example, you can permit IPv4 traffic from any source to specific hosts.

Configure a class map that matches the ACL: Class maps match the parameters in the ACLs. For instance, you can create a class map of type traffic and match it with the previously created ACL.

Configure the policy map with the action to set the next hop: Policy maps with ePBR then take detailed actions based on the set statements configured. You can configure an ePBR policy map with the class map and set the next hop.

Apply the service policy on the interface: Finally, you apply the ePBR policy map to the interface. For example, you can apply the policy map to a GigabitEthernet interface.

References :=

Implementing Enhanced Policy Based Routing - Cisco

Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE

How to configure PBR - Cisco Community

 Cisco SD-WAN IPsec tunnels are different from native IPsec VPN tunnels in several ways. One of the unique features of Cisco SD-WAN IPsec tunnels is that they support real-time dynamic path selection, which means that they can automatically choose the best path for each application based on the network conditions and policies. This feature improves the performance, reliability, and efficiency of the network traffic. Native IPsec VPN tunnels, on the other hand, do not have this capability and rely on static routing or manual configuration to select the path for each tunnel. This can result in suboptimal performance, increased latency, and higher costs. References := Traditional IPsec Versus Cisco SD-WAN IPsec, SD-WAN vs IPsec VPN’s - What’s the difference?, SD-WAN vs. VPN: How Do They Compare?, Traditional IPSEC Versus SD-WAN IPSEC
