In a PIM-SM environment, which mechanism determines the traffic that a receiver receives?
Refer to the exhibit.

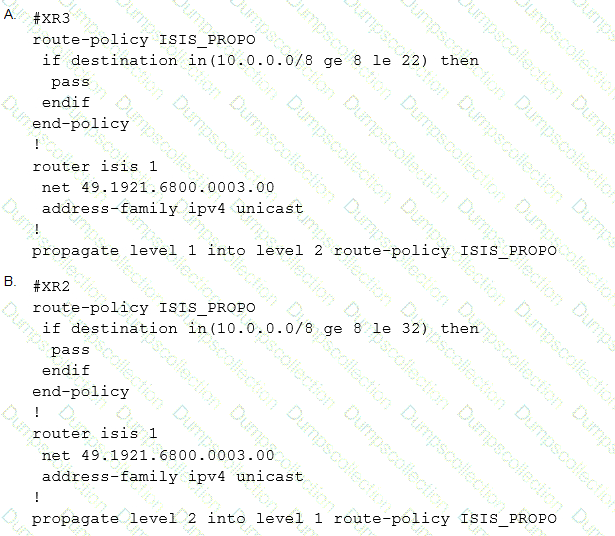

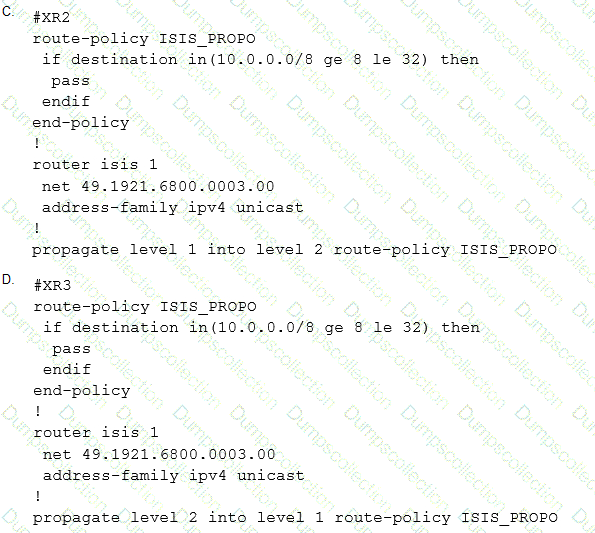

A network operator must inject a Level 1 route from XR2 (10.16.16.0/24) into the ISIS
topology. Which configuration allows the injection in a way that XR3 and XR1 have a valid and working route for 10.16.16.0/24?

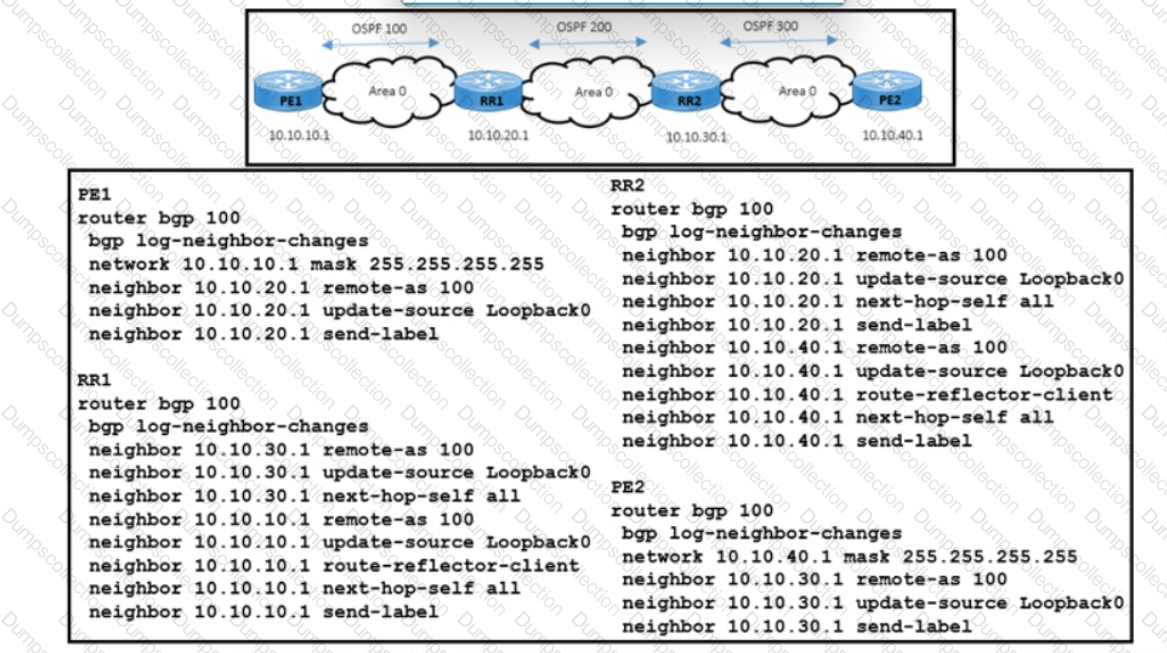

Refer to the exhibit. A network engineer is investigating a report of packet drops in an application running on a server connected to PE2 The engineer determined that:
The OSPF adjacency in area 0 is up. and it is learning the loopback addresses of all routers in area 0.
Traffic from users connected to PE1 to the application is also passing normally.
Packets from PE2 back to PE1 are being dropped

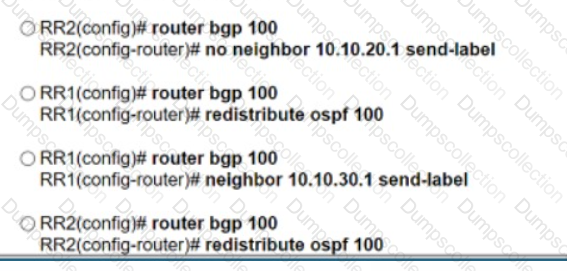

Which action resolves the issue?

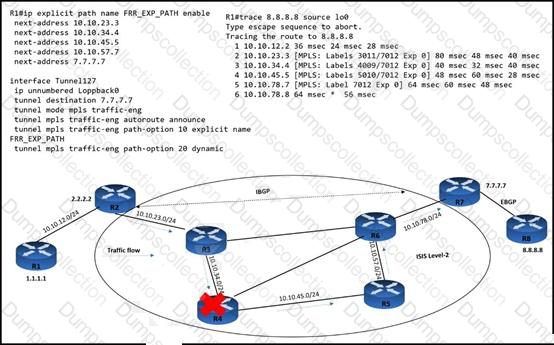

Refer to the exhibit.
An MPLS core network has connectivity issues R4 has failed. It impacts traffic loss between R1 and R8. Customers report no access to their file servers, which delays their transformation work. Which quick action resolves the issue until R4 recovers?
Refer to the exhibit.
Routers RA and RB are IS-IS peers configured for NSF but router RC is an IS-IS peer without NSF capability If RA undergoes processor switchover what is the effect on the network environment?
Refer to the exhibit.
Router 1. Router 2. and Router 3 are co-located in an onsite data center of an office, but Router 4. Router 5. and Router 6 are installed in another data center 'eral miles away. A network engineer is troubleshooting an RSVP-TE issue on the network. On most of the devices, the engineer can move all LSPs away from a selected dace and take it down for maintenance without interrupting traffic. However, when an interface on Router 3 is taken down, traffic on the network is disrupted. What must the engineer enable to resolve the issue on Router 3?

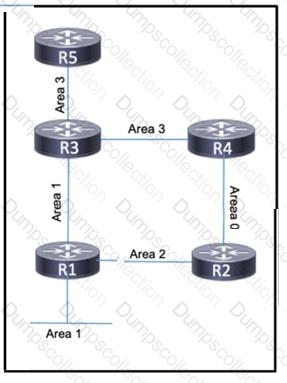

Refer to the exhibit.
OSPF is running in the network, which spans multiple areas as shown, and all OSPF neighbors are established. Hosts that reside on the LAN on R1 are trying to reach a server connected to R5, but R1 cannot reach the R5 routes. The server must maintain a TCP connection with the hosts. Which action must the engineer take to resolve the issue?
A network administrator is planning an upgrade for a PE router that has BGP peering sessions with several CE routers. The SLA has stringent uptime requirements, so the administrator wants to implement BGP NSR with SSO to provide fast convergence during the upgrade. Which action must the engineer take as part of the NSR implementation?
Refer io the exhibit.
While applying the configurations on two routers an engineer notices that OSPF adjacency Between them remains down Through the ping test the engineer confirmed that both me routers have Layer 3 reachability between them Which action should me engineer take to make the adjacencies to full?

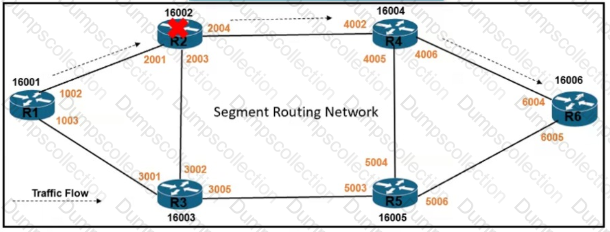

Refer to the exhibit.

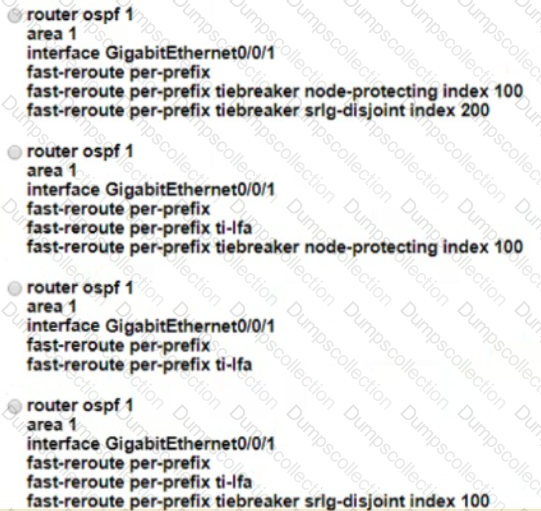

Traffic flow from router R1 to router R6 is delay-sensitive It must consider potential link-failure and node-failure conditions Which configuration must an engineer apply to router R1 to route traffic to router R6 if router R2 fails?
