When designing two data centers based on Cisco ACI technology that can extend L2/L3, VXLAN, and network policy across locations with ACI Multi-Pod, the two requirements that must be considered are:

A single APIC Cluster is required in a Multi-Pod design4.

ACI Multi-Pod requires an IP Network supporting PIM-Bidir2.

When configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes, the tenant used is the mgmt tenant1.

In a Cisco ACI configuration with IEEE 802.1p ports, the traffic exits from the EPG untagged from leaf ports. This means that when the port is configured in Access (802.1p) mode and the access VLAN is the only VLAN deployed on the port, then traffic will be untagged on egress56.

To filter the System Faults page and view only the active faults present in the Cisco ACI fabric, the two lifecycle stages that must be selected for filtering are:

Raised (Option A): This stage indicates that the fault is currently active and has been raised.

Raised, Clearing (Option D): This combination indicates that the fault is active but is in the process of being cleared.

The Infrastructure VLAN is automatically configured during the Cisco ACI fabric discovery process. This VLAN, often referred to as the “infra VLAN,” is used to enable internal communication between the ACI fabric components, such as the leaf and spine nodes. It is vital for the overlay network and the control plane functionality. In the provided output, VLAN 3600 represents the Infrastructure VLAN, which is configured for inter-node communication.

 To limit management access to the Cisco ACI fabric that originates from a single subnet where the NOC operates, the policy should be configured in the management tenant on the Cisco APIC5.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/ apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_0111.html

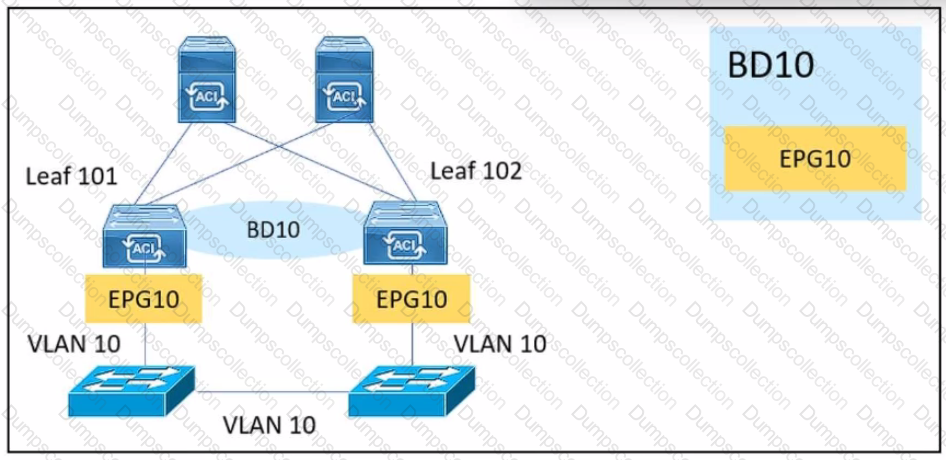

To resolve the issue of STP convergence causing a microloop and significant CPU spike on all switches after connecting legacy non-ACI switches to the Cisco ACI fabric, BPDU filtering should be configured on the interfaces of the external switches that face the Cisco ACI fabric. BPDU filtering prevents Bridge Protocol Data Units (BPDUs) from being sent or received on those interfaces, which stops the STP process and eliminates the possibility of microloops.

For the BGP Route Reflector policy to take effect, the components that must be configured are the leaf fabric interface overrides and profiles. These configurations are necessary to establish the route reflector relationships within the BGP protocol on the leaf switches

To configure leaf and spine switches in a Cisco ACI fabric to use out-of-band management for NTP protocol, an Override Policy with NTP Out-of-Band must be created. This policy specifies that NTP traffic should be directed through the out-of-band management network, separate from the in-band management traffic, ensuring dedicated management connectivity for time synchronization.

https://www.cisco.com/c/en/us/support/docs/cloud-systems-management/application-policy-infrastructure-controller-apic/200128-Configuring-NTP-in-ACI-Fabric-Solution.html
