Cisco Engineering Cisco Meraki Solutions (ECMS) v2.2 500-220 Exam Dumps: Updated Questions & Answers (October 2025)

On the device, navigate to Settings > General > Device Management

Select Meraki Management, and select Remove to delete the management profile and any managed configuration profiles installed via SM

What happens if a network loses connectivity to the Meraki cloud?

Because of Meraki’s out of band architecture, most end users are not affected if Meraki wireless APs, switches, or security appliances cannot

communicate with Meraki’s cloud services (e.g., because of a temporary WAN failure):

• Users can access the local network (printers, file shares, etc.)

• If WAN connectivity is available, users can access the Internet

• Network policies (firewall rules, QoS, etc.) continue to be enforced

• Users can authenticate via 802.1X/RADIUS and can roam wirelessly between access points

• Users can initiate and renew DHCP leases

• Established VPN tunnels continue to operate

• Local configuration tools are available (e.g., device IP configuration

https://meraki.cisco.com/lib/pdf/meraki_datasheet_cloud_management.pdf

https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/SD-WAN_and_Traffic_Shaping

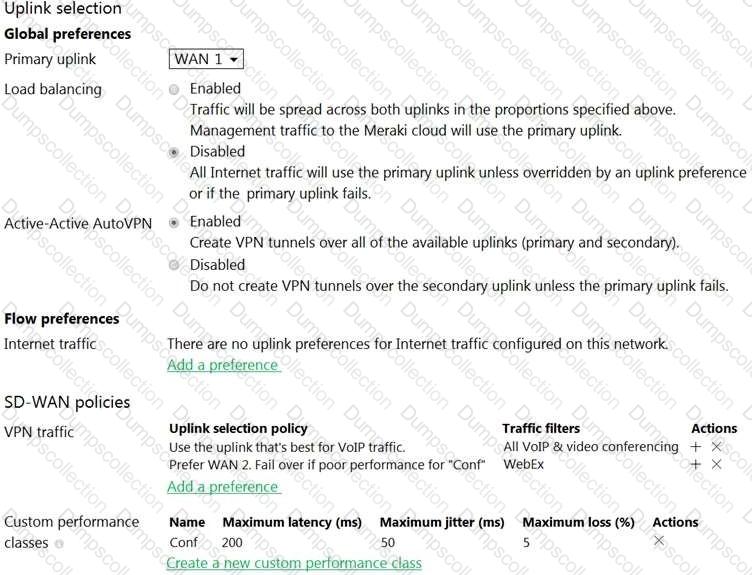

Assuming this MX has established a full tunnel with its VPN peer, the MX will route the WebEx traffic based on the SD-WAN policy configured in the exhibit. The SD-WAN policy has two performance classes: Conf and Default. The Conf performance class matches the traffic with destination port 9000, which is used by WebEx for VoIP and video RTP3. The Conf performance class has a preferred uplink of WAN 2 and a failover uplink of WAN 1. It also has thresholds for latency, jitter, and loss that determine when to switch from the preferred uplink to the failover uplink. Therefore, the WebEx traffic will prefer WAN 2 as long as it meets the thresholds in the Conf performance class. If WAN 2 exceeds the thresholds or goes down, the WebEx traffic will switch to WAN 1 as the failover uplink.

https://documentation.meraki.com/MR/MR_Splash_Page/Systems_Manager_Sentry_Enrollment

More hardware devices than device licenses: An organization needs to have enough device licenses to cover all the hardware devices in its network. A device license is consumed by each device that is added to the network. If the number of devices exceeds the number of licenses, the organization will be out of license and will lose access to some features and support until it purchases more licenses or removes some devices4.

Expired device license: A device license has an expiration date that depends on the license term purchased by the organization. If a device license expires, it will no longer be valid and will not count towards the license limit. The organization will need to renew the expired license or purchase a new one to avoid being out of license4.

Verbs in the API follow the usual REST conventions:

GET returns the value of a resource or a list of resources, depending on whether an identifier is specified.

POST adds a new resource

PUT updates a resource

DELETE removes a resource

https://documentation.meraki.com/General_Administration/Other_Topics/Cisco_Meraki_Dashboard_API

Which information is used to calculate whether a WAN link has high usage not how to view (To accurately identify high utilization, users must set the ISP-provided bandwidth limits under Security and SD-WAN > SD-WAN and Traffic Shaping > Uplink Configuration for each uplink. If the bandwidth usage is higher than 80% of the defined limit, it will mark that uplink as High Usage.) https://documentation.meraki.com/MI/MI_WAN_Health#:~:text=To%20accurately%20identify%20high%20utilization,that%20uplink%20as%20High%20Usage .
