When configuring a terminal emulator (such as PuTTY, Tera Term, or HyperTerminal) to connect to the console port of a Cisco switch, the standard settings are as follows:​

Speed (baud rate): 9600This is the default transmission speed for Cisco console ports, ensuring compatibility across various devices.​

Data bits: 8This setting specifies that each character transmitted consists of 8 data bits, which is standard for most serial communications.​

Parity: NoneNo parity bit is used, meaning there is no additional error-checking bit appended to each character.​

Stop bits: 1One stop bit indicates the end of a character transmission.​

Flow control: NoneNo flow control is employed, allowing continuous data transmission without hardware or software-based pausing.​

Therefore, optionsC (Speed: 9600)andD (Data bits: 8)are correct. Options A (Stop bits: 2), B (Flow control: Hardware), and E (Parity: Even) deviate from the standard settings and may result in communication issues if configured.​

Before shutting down any Cisco collaboration device (such as an IP phone, video endpoint, or codec) for replacement, it is essential toback up the configuration. This ensures that all custom settings, including user profiles, network configurations, and service settings, are preserved and can be quickly restored on the replacement device.

This backup minimizes downtime and avoids manual reconfiguration errors during the swap process.

Within theFLDTECtraining, especially underMaintenance and RMA Procedures, there is a strong emphasis on safely transferring and adapting configurations from failed or decommissioned devices to replacement units.

The official guidance includes the following:

"When reusing a configuration from an old device, make sure to retain the necessary security elements such as username entries. This ensures the replacement device is still accessible under the correct user credentials."

Here's a breakdown of why the correct answer isB:

A. Remove all configurations under line vty 0 4:This would eliminate remote access settings, making it harder to manage the device.

B. Retain all username entries:Correct. Keeping the username entries ensures continued secure access and avoids loss of administrative control.

C. Keep all access-list commands intact:Not always required — ACLs are often tailored to interface-specific settings or environments which may differ between devices.

D. Add the enable password cisco command:Not a best practice. Default passwords (like cisco) should be avoided for security reasons, and it's not required if enable secret is already in use.

===========

The correct sequence for mounting a Cisco device in a rack is:​

Install mounting brackets: Attach the appropriate rack-mount brackets to the sides of the device using the screws provided. This step prepares the device for secure installation in the rack.​

Mount in rack: Carefully place the device into the rack, aligning the brackets with the rack posts, and secure it using the appropriate rack-mount screws.​

Ground the device: After the device is securely mounted, connect the grounding wire to the chassis grounding point and then to the facility ground. This step ensures safety and compliance with electrical standards.​

This sequence is recommended to ensure both the physical security of the device and the safety of personnel during installation.​

When addressing call quality issues between IP phones, theReal-time Transport Protocol (RTP)is the primary protocol to analyze. RTP is responsible for the actual transmission of voice data during a call, and its performance directly impacts call quality.​

Key factors affecting RTP and, consequently, call quality include:​

Packet Loss:Missing packets can lead to audio gaps.

Jitter:Variations in packet arrival times can cause choppy audio.

Latency:Delays in packet delivery can result in noticeable lag.​

Analyzing RTP streams allows technicians to identify these issues and implement appropriate Quality of Service (QoS) measures to mitigate them.​

Incontrast:​

SIP (Session Initiation Protocol):Handles call setup, modification, and teardown but not the media stream.

SCCP (Skinny Client Control Protocol):A Cisco proprietary protocol for signaling, not media transport.

H.323:An older protocolsuite for multimedia communication, encompassing both signaling and media, but less commonly used in modern IP telephony.​Reference:Supporting Cisco Devices for Field Technicians (FLDTEC) – Troubleshooting Methodologie

Theinstall allcommand is the standard method used to install or upgrade Cisco NX-OS software on Nexus switches. This command streamlines the installation process by automating tasks such as verifying the software image, checking for compatibility, and managing the installation of optional packages or SMUs (Software Maintenance Upgrades). It ensures a comprehensive and efficient upgrade process, minimizing the potential for errors.​Cisco

In contrast:​

copy tftp: running-configis used to copy configuration files, not software images.

install kickstartis an outdated command from earlier NX-OS versions.

boot systemsets the boot variable but does not handle the full installation process.​

TheCisco Integrated Management Controller (CIMC)is the embedded management solution designed specifically forstandalone Cisco UCS C-Series rack servers and E-Series servers. It allows administrators to perform out-of-band management functions such as BIOS configuration, firmware updates, remote console access, and power control.

Cisco UCS Manageris used for managing UCS blade chassis environments.

Cisco UCS Centralis intended for centralized management across multiple UCS domains.

Cisco Intersightis a cloud-based management platform that can extend CIMC functionality but is not the embedded, standalone option.

Theshow inventorycommand is used on Cisco devices to display detailed information about thehardware components installed, including:

Product Identifier (PID)

Version Identifier (VID)

Serial Number (SN)

Description of the component

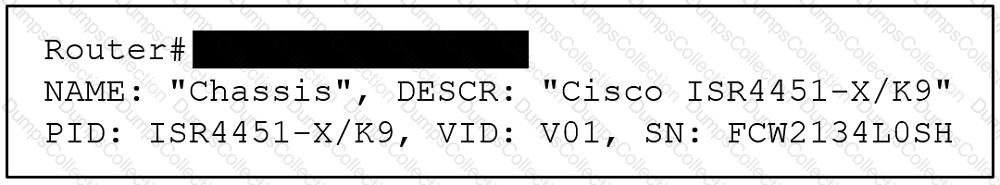

In the exhibit, the output clearly shows:

NAME: "Chassis", DESCR: "Cisco ISR4451-X/K9"

PID:ISR4451-X/K9, VID: V01, SN: FCW2134L0SH

This confirms thatshow inventoryis the correct command to retrieve theserial numberand hardware inventory details.

show versionprovides some system information and sometimes includes serial numbers, but it's not as reliable or detailed for component-level hardware info.

show idpromis not commonly used and not supported on all platforms.

show platformprovides platform-specific info but not typically the serial number.

Acrossover UTP (Unshielded Twisted Pair) cableis used to connect two similar devices directly. This includes:​

Switch to switch

Router to router

PC to PC​

The crossover cable reverses the transmit and receive pairs, allowing for proper communication between like devices without the need for an intermediary device.​

Conversely, astraight-through cableis used to connect dissimilar devices, such as:​

PC to switch

Router to switch

PC to router​

This cable maintains the same wiring on both ends, suitable for connecting different types of devices.​

Therefore, when connecting electrically like devices, a crossover cable is appropriate.​

The highlighted components in all three Cisco UCS server models (5108 B-Series Blade Server Chassis, X9508 X Series Modular Server Chassis, and C225 M6 Rack Server) are fan modules, which are field-replaceable units responsible for cooling the system.

The highlighted components in the images correspond tocooling fans— these are essential for maintaining optimal thermal conditions within each Cisco UCS server type.Here's a breakdown of what's visible in each:

Cisco UCS 5108 B-Series Blade Server Chassis: The highlighted vertical rectangular components arefan modules, which provide high-efficiency airflow for the densely packed blades.

Cisco UCS X9508 X-Series Modular Server Chassis: The front-facingfan traysare clearly marked, used to cool the modular nodes and shared infrastructure.

Cisco UCS C225 M6 Rack Server: The highlighted components on the side of the motherboard are alsofan modules, directly responsible for cooling the CPU, memory, and other internal components.

These fans arefield-replaceable units (FRUs)and are routinely accessed by technicians during preventive maintenance or fault replacement.
