To determine if you can reach the router, you should use thepingcommand followed by the IP address of the router. Thepingcommand is a network utility used to test the reachability of a host on an Internet Protocol (IP) network and to measure the round-trip time for messages sent from the originating host to a destination computer.

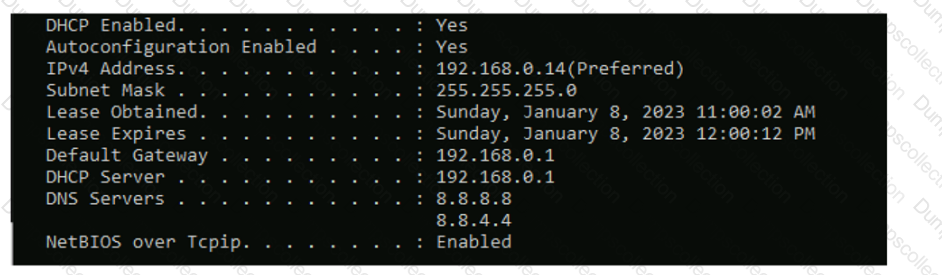

The Default Gateway in theipconfigresults is typically the router’s IP address in a home or small office network. In this case, the Default Gateway is192.168.0.1, which is the address you would ping to check connectivity to the router.

References:=

How to Use the Ping Command

Testing Network Connectivity with the Ping Command

=========================

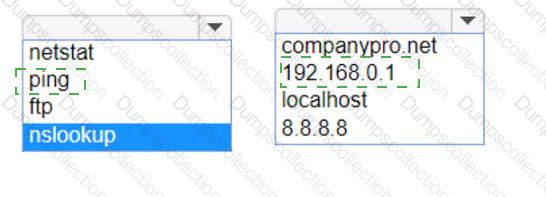

To determine if you can reach the router, you should use thepingcommand with the IP address of the router.

Command:ping

Target:192.168.0.1

So, the completed command is:

ping 192.168.0.1

Step by Step Comprehensive and Detailed Explanation:

ping: The ping command sends ICMP Echo Request messages to the target IP address and waits for an Echo Reply. It is commonly used to test the reachability of a network device.

192.168.0.1: This is the IP address of the default gateway (the router) as shown in theipconfigoutput. Pinging this address will help determine if the computer can communicate with the router.

References:

Using the ping Command: ping Command Guide

SFTP, or Secure File Transfer Protocol, is a protocol that allows for secure file transfer capabilities between networked hosts. It is a secure extension of the File Transfer Protocol (FTP). SFTP encrypts both commands and data, preventing passwords and sensitive information from being transmitted openly over the network. It is typically used for secure file transfers over the internet and is built on the Secure Shell (SSH) protocol1.

References :=

•What Is SFTP? (Secure File Transfer Protocol)

•How to Use SFTP to Safely Transfer Files: A Step-by-Step Guide

•Secure File Transfers: Best Practices, Protocols And Tools

The Secure File Transfer Protocol (SFTP) is a secure version of the File Transfer Protocol (FTP) that uses SSH (Secure Shell) to encrypt all commands and data. This ensures that sensitive information, such as usernames, passwords, and files being transferred, are securely transmitted over the network.

•ICMP (Internet Control Message Protocol) is used for network diagnostics and is not designed for file transfer.

•NTP (Network Time Protocol) is used to synchronize clocks between computer systems and is not related to file transfer.

•HTTP (HyperText Transfer Protocol) is used for transmitting web pages over the internet and does not inherently provide secure file transfer capabilities.

Thus, the correct protocol that allows secure uploading of files to another computer on the internet is SFTP.

References :=

•Cisco Learning Network

•SFTP Overview (Cisco)

The private IP address ranges that are set aside specifically for use within private networks and not routable on the internet are as follows:

Class A: 10.0.0.0 to 10.255.255.255

Class B: 172.16.0.0 to 172.31.255.255

Class C: 192.168.0.0 to 192.168.255.255

These ranges are defined by the Internet Assigned Numbers Authority (IANA) and are used for local communications within a private network123.

Given the options: A.172.16.0.0 to 172.31.255.255falls within the Class B private range. B.192.16.0.0 to 192.16.255.255is not a recognized private IP range. C.11.0.0.0 to 11.255.255.255is not a recognized private IP range. D.192.168.0.0 to 192.168.255.255falls within the Class C private range.

Therefore, the correct selections that the company should use for their private networks areAandD.

References:=

Reserved IP addresses on Wikipedia

Private IP Addresses in Networking - GeeksforGeeks

Understanding Private IP Ranges, Uses, Benefits, and Warnings

The IEEE 802.11 standard contains the specifications for Wi-Fi networks. It is a set of media access control (MAC) and physical layer (PHY) specifications for implementing wireless local area network (WLAN) computer communication in various frequencies, including but not limited to 2.4 GHz, 5 GHz, and 6 GHz1. This standard is maintained by the Institute of Electrical and Electronics Engineers (IEEE) and is commonly referred to as Wi-Fi. The standard has evolved over time to include several amendments that improve speed, range, and reliability of wireless networks.

References :=

•The Most Common Wi-Fi Standards and Types, Explained

•802.11 Standards Explained: 802.11ax, 802.11ac, 802.11b/g/n, 802.11a

•Wi-Fi Standards Explained - GeeksforGeeks

=========================

Router

Theshow running-configcommand is used on a Cisco router to display the current operational settings that are actively configured in the router’s RAM. This command outputs all the configurations that are currently being executed by the router, which includes interface configurations, routing protocols, access lists, and other settings. Unlikeshow startup-config, which shows the saved configuration that the router will use on the next reboot,show running-configreflects the live, current configuration in use.

References:= The information is supported by multiple sources that detail the use of Cisco commands, particularly theshow running-configcommand as the standard for viewing the active configuration on a Cisco device123.

show running-config: This command displays the current configuration running on the router. It includes all the operational settings and configurations applied to the router.

show protocols: This command shows the status of configured protocols on the router but not the entire configuration.

show startup-config: This command displays the configuration saved in NVRAM, which is used to initialize the router on startup, but not necessarily the current running configuration.

show version: This command provides information about the router's software version, hardware components, and uptime but does not display the running configuration.

References:

Cisco IOS Commands: Cisco IOS Commands

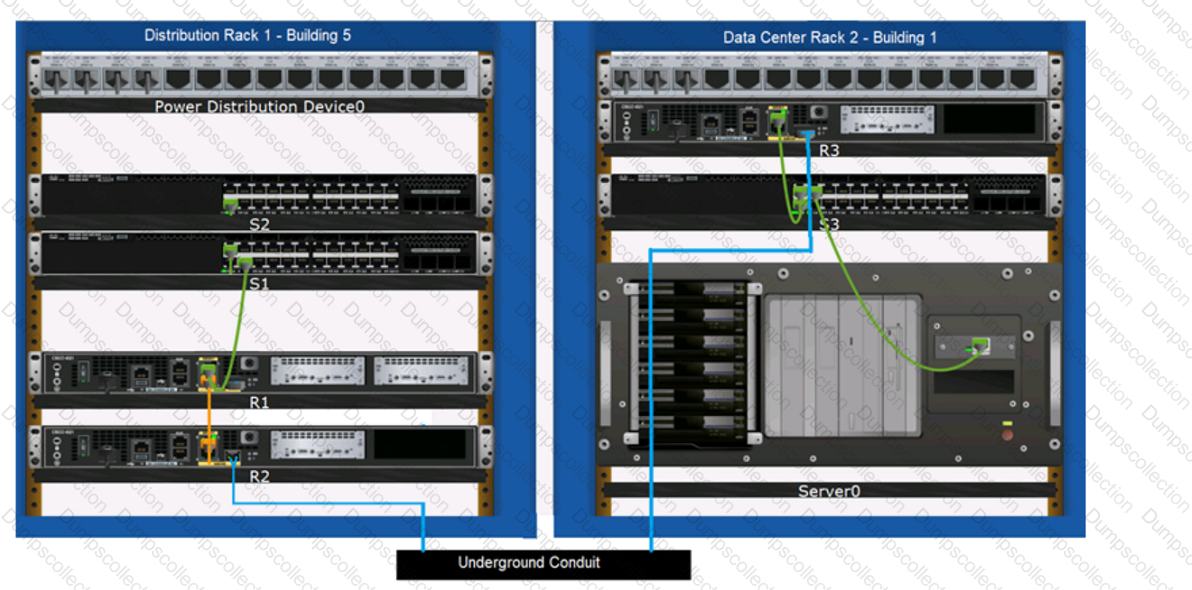

Based on the image description provided, here are the cable types matched with the appropriate connection descriptions:

Connects Switch S1 to Router R1 Gi0/0/1 interfaceCable Type: = Straight-through UTP Cable

Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduitCable Type: = Fiber Optic Cable

Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1Cable Type: = Crossover UTP Cable

Connects Switch S3 to Server0 network interface cardCable Type: = Straight-through UTP Cable

The choices are based on standard networking practices where:

Straight-through UTP cablesare typically used to connect a switch to a router or a network interface card.

Fiber optic cablesare ideal for long-distance, high-speed data transmission, such as connections through an underground conduit.

Crossover UTP cablesare used to connect similar devices, such as router-to-router connections.

These matches are consistent with the color-coded cables in the image: green for switch connections, yellow for router-to-router connections within the same rack, and blue for inter-rack connections. The use of these cables follows the Ethernet cabling standards.

Connects Switch S1 to Router R1 Gi0/0/1 interface:

Cable Type: Straight-through UTP Cable

Explanation: A straight-through UTP cable is typically used to connect different types of devices, such as a switch to a router.

Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit:

Cable Type: Fiber Optic Cable

Explanation: Fiber optic cables are used for long-distance connections, such as those through an underground conduit between buildings.

Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1:

Cable Type: Crossover UTP Cable

Explanation: A crossover UTP cable is typically used to connect similar devices directly, such as router to router connections.

Connects Switch S3 to Server0 network interface card:

Cable Type: Straight-through UTP Cable

Explanation: A straight-through UTP cable is typically used to connect a switch to an end device, such as a server.

Straight-through UTP Cable: Used to connect different devices (e.g., switch to router, switch to server).

Crossover UTP Cable: Used to connect similar devices directly (e.g., router to router, switch to switch).

Fiber Optic Cable: Used for long-distance and high-speed connections, often between buildings or data centers.

References:

Network Cable Types and Uses: Cisco Network Cables

Understanding Ethernet Cabling: Ethernet Cable Guide

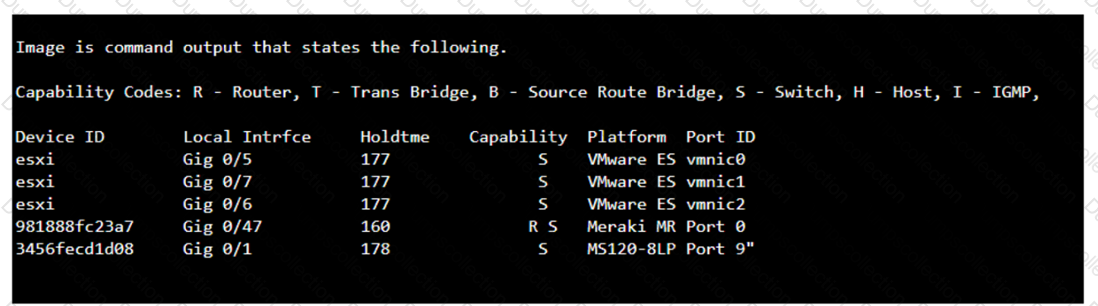

The command that will display the output provided, which includes capability codes, local interface details, device IDs, hold times, and platform port ID capabilities, is the show cdp neighbor command. This command is used in Cisco devices to display current information about neighboring devices detected by Cisco Discovery Protocol (CDP), which includes details such as the interface through which the neighbor is connected, the type of device, and the port ID of the device1.

References :=

•Cisco - show cdp neighbors

The provided output is from the Cisco Discovery Protocol (CDP) neighbor table. The show cdp neighbor command displays information about directly connected Cisco devices, including Device ID, Local Interface, Holdtime, Capability, Platform, and Port ID.

•A. show mac-address-table: Displays the MAC address table on the switch.

•C. show inventory: Displays information about the hardware inventory of the device.

•D. show ip interface: Displays IP interface status and configuration.

Thus, the correct answer is B. show cdp neighbor.

References :=

•Cisco CDP Neighbor Command

•Understanding CDP

The CIDR (Classless Inter-Domain Routing) notation for the subnet mask 255.255.252.0 is /22. This notation indicates that the first 22 bits of the IP address are used for network identification, and the remaining bits are used for host addresses within the network1.

References :=

•Subnet Cheat Sheet – 24 Subnet Mask, 30, 26, 27, 29, and other IP Address CIDR Network References

=========================

•Subnet Mask to CIDR Notation: The given subnet mask is 255.255.252.0. To convert this to CIDR notation:

•Convert the subnet mask to binary: 11111111.11111111.11111100.00000000

•Count the number of consecutive 1s in the binary form: There are 22 ones.

•Therefore, the CIDR notation is /22.

References:

•Understanding Subnetting and CIDR: Cisco CIDR Guide

When prioritizing trouble tickets, the most critical issues affecting business operations or high-impact activities should be addressed first. Here's a breakdown of the tickets:

Ticket 1: Relocation of a printer, while necessary, is not urgent and does not impact critical operations.

Ticket 2: An ongoing webinar losing internet access is critical, especially if the webinar is time-sensitive and involves multiple participants.

Ticket 3: Slower response time for a cloud-based application is important but typically not as urgent as a complete loss of internet access for a live event.

Ticket 4: Wireless access down in the cafeteria affects users but does not have the same immediate impact as a live webinar losing connectivity.

Thus, the correct answer is B. Ticket 2: An online webinar is taking place in the conference room. The video conferencing equipment lost internet access.

References:=

IT Help Desk Best Practices

Prioritizing IT Support Tickets

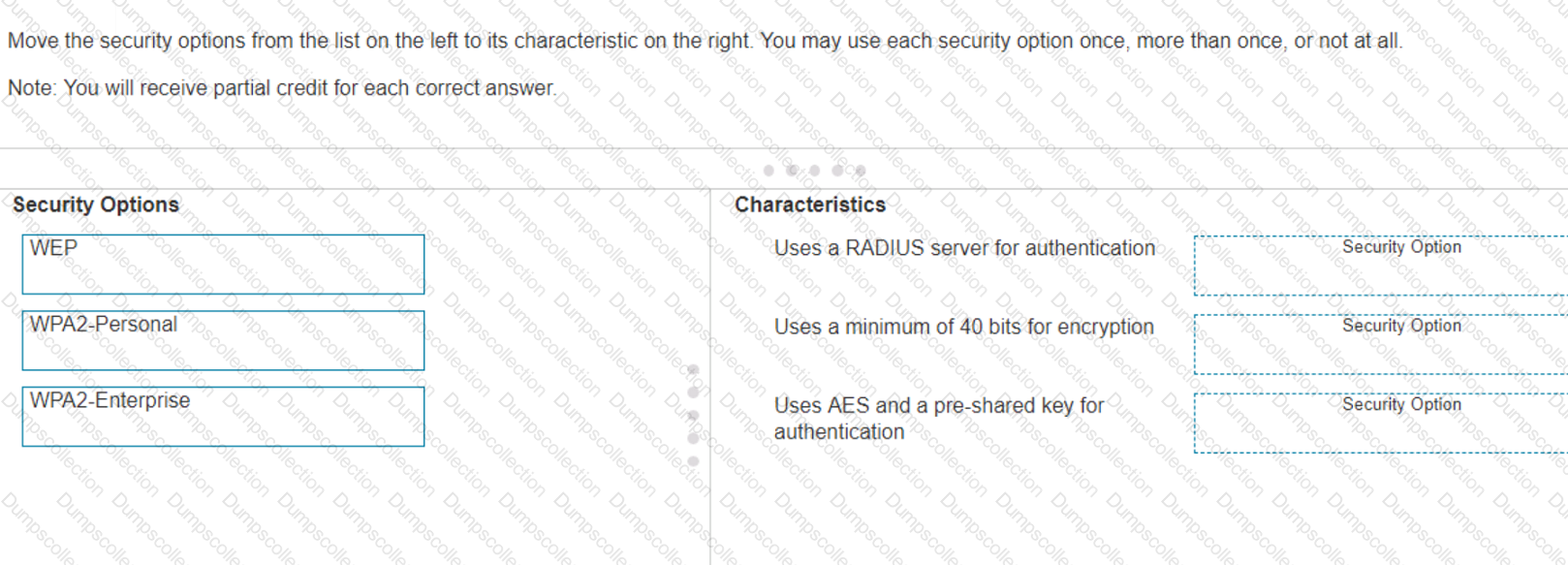

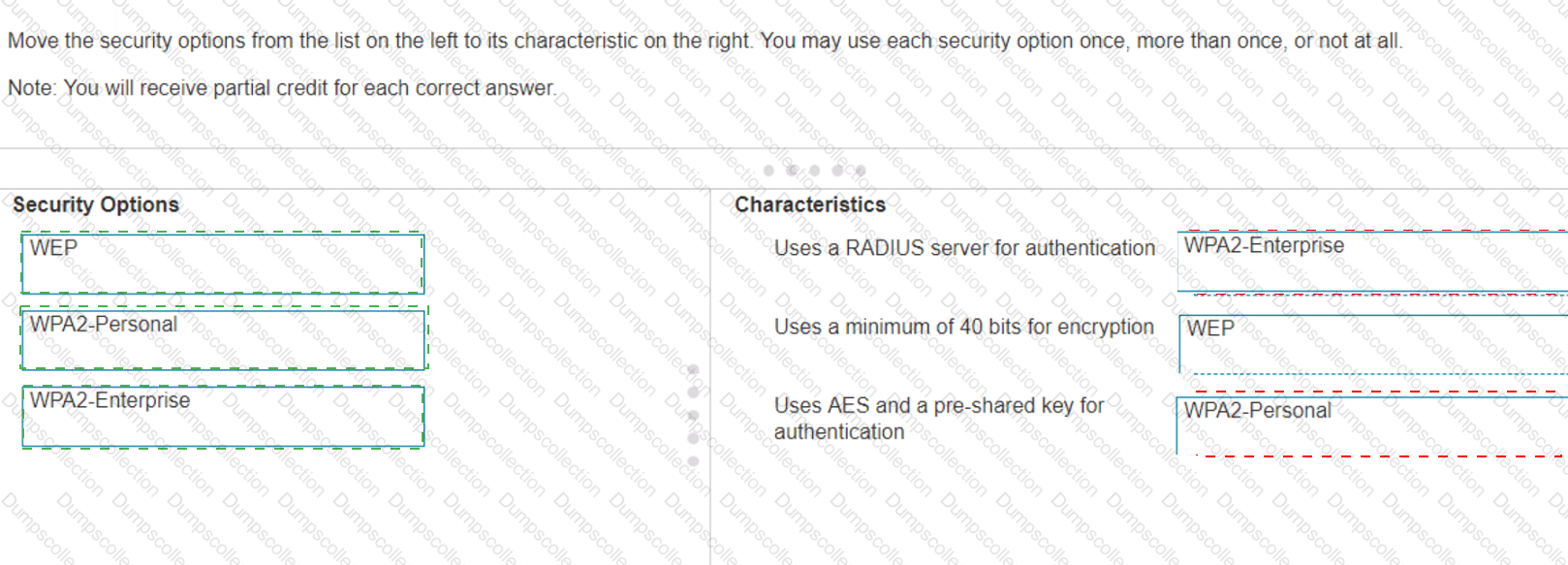

The correct matching of the security options to their characteristics is as follows:

WPA2-Enterprise: Uses a RADIUS server for authentication

WEP: Uses a minimum of 40 bits for encryption

WPA2-Personal: Uses AES and a pre-shared key for authentication

Here’s why each security option matches the characteristic:

WPA2-Enterpriseuses a RADIUS server for authentication, which provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.

WEP (Wired Equivalent Privacy)is an outdated security protocol that uses a minimum of 40 bits for encryption (and up to 104 bits), which is relatively weak by today’s standards.

WPA2-Personal(Wi-Fi Protected Access 2 - Personal) uses the Advanced Encryption Standard (AES) for encryption and a pre-shared key (PSK) for authentication, which is shared among users to access the network.

These security options are essential for protecting wireless networks from unauthorized access and ensuring data privacy.
