Scenario: A junior Citrix Architect would like to use nFactor to perform authentication based on the domain. The junior architect has reached out to a supervisor for assistance and has been provided with the following step-by-step configuration guide:
Create Authentication policy for LDAP. RADIUS.
Create logon schema for Domain drop down. LDAP. LDAP+RADIUS, and noschema.
Create Authentication policy label for OnlyLDAR LDAP+RADIUS, and RADIUS.
Bind DOMAIN drop down as default logon schema policy
Create Authentication profile to bind the AAA virtual server.
Bind Authentication profile to Traffic management virtual server or Citrix Gateway virtual server.
What must the junior architect bind In order for the authentication to work correctly?
Scenario: A Citrix Architect has met with a team of Workspacelab members for a design discussion They have captured the following requirements for the Citrix ADC design project:
The authentication must be deployed for the users from the workspacelab com and vendorlab com domains.
The workspacelab users connecting from the internal (workspacelab) network should be authenticated using LDAP
The workspacelab users connecting from the external network should be authenticated using LDAP and RADIUS.
The vendorlab users should be authenticated using Active Directory Federation Service
The user credentials must NOT be shared between workspacelab and vendorlab
Single Sign-on must be performed between StoreFront and Citrix Gateway
A domain drop down list must be provided if the user connects to the Citrix Gateway virtual server externally
Which method must the architect utilize for user management between the two domains?
Scenario: The Workspacelab team has configured their Citrix ADC Management and Analytics (Citrix Application Delivery Management) environment. A Citrix Architect needs to log on to the Citrix Application Delivery Management to check the settings.
Which two authentication methods are supported to meet this requirement? (Choose two.)
Scenario: A Citrix Architect needs to design a hybrid Citrix Virtual App and Citrix Virtual Desktop environment which will include as well as resource locations in an on-premises datacenter and Microsoft Azure.
Organizational details and requirements are as follows:
Active Citrix Virtual App and Citrix Virtual Desktop Service subscription
No existing Citrix deployment
Minimization of additional costs
All users should use same access point, regardless of network location
No multi-factor authentication is required

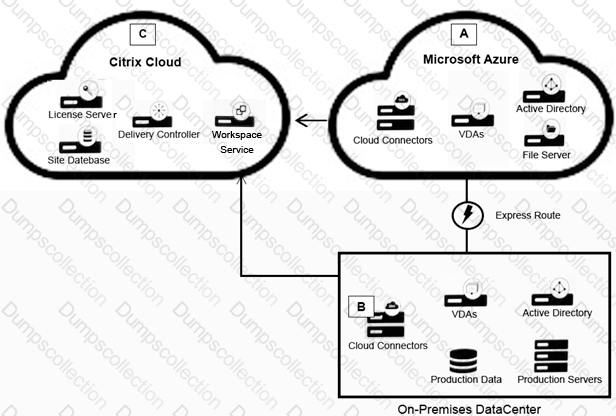

Click the Exhibit button to view the conceptual environment architecture.
The architect should use___________ in Location A, and should use _______________ in Location B. (Choose the correct option to complete the sentence.)
Scenario: A Citrix Architect has configured two MPX devices in high availability mode with version 12.0.53.13 nc. After a discussion with the security team, the architect enabled the Application Firewall feature for additional protection.
In the initial deployment phase, the following security features were enabled:
IP address reputation
HTML SQL injection check
Start URL
HTML Cross-site scripting
Form-field consistency
After deployment in pre-production, the team identifies the following additional security features and changes as further requirements:
Application Firewall should retain the response of form field in its memory When a client submits the form in the next request. Application Firewall should check for inconsistency in the request before sending it to the web server
All the requests dropped by Application Firewall should receive a pre-configured HTML error page with appropriate information.
The Application Firewall profile should be able to handle the data from the RSS feed and an ATOM-based site.
Click the Exhibit button to view an excerpt of the existing configuration.
What should the architect do to meet these requirements?
A Citrix Architect needs to make sure that maximum concurrent AAA user sessions are limited to 4000 as a security restriction.
Which authentication setting can the architect utilize to view the current configuration?
Scenario: A Citrix Architect needs to assess an existing NetScaler multi-site deployment. The deployment is using Global Server Load Balancing (GSLB) configured in a parent-child configuration.

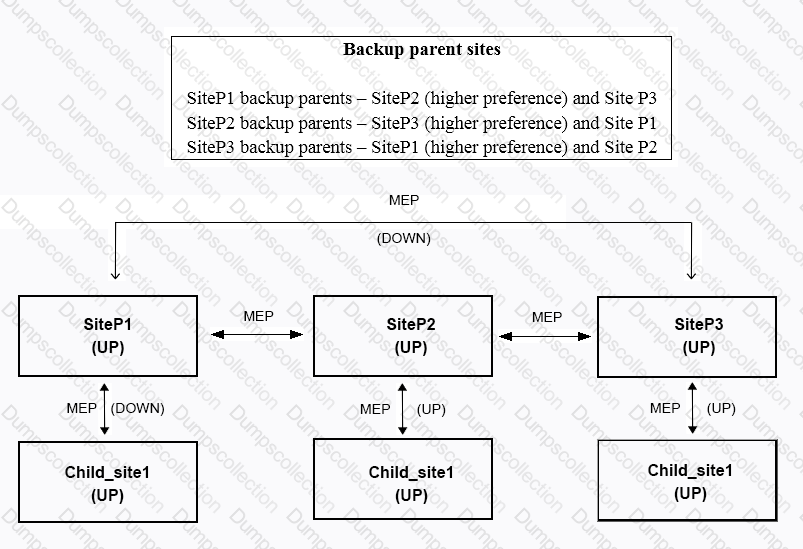

Click the Exhibit button to view the diagram of the current GSLB configuration and parent-child relationships, as well as the status of the sites and the connectivity between them.
Based on the displayed configuration and status, Child_site1_______ a connection from _______. (Choose the correct option to complete the sentence.)
Scenario: Based on a discussion between a Citrix Architect and a team of Workspacelab members, the MPX Logical layout for Workspacelab has been created across three (3) sites.
They captured the following requirements during the design discussion held for a Citrix ADC design project:
All three (3) Workspacelab sites (DC, NDR, and DR) will have similar NetScaler configurations and design.
Both external and internal NetScaler MPX appliances will have Global Server Load Balancing (GSLB) configured and deployed in Active/Passive mode.
GSLB should resolve both A and AAA DNS queries.
In the GSLB deployment, the NDR site will act as backup for the DC site, whereas the DR site will act as backup for the NDR site.
When the external NetScaler replies to DNS traffic coming in through Cisco Firepower IPS, the replies should be sent back through the same path.
On the internal NetScaler, both the front-end VIP and backend SNIP will be part of the same subnet.
The external NetScaler will act as default gateway for the backend servers.
All three (3) sites, DC, NDR, and DR, will have two (2) links to the Internet from different service providers configured in Active/Standby mode.
Which design decision must the architect make the design requirements above?
Scenario: A Citrix Architect needs to design a hybrid XenApp and XenApp and XenDesktop environment which will include Citrix Cloud as well as resource locations in on-premises datacenter and Microsoft Azure.
Organizational details and requirements are as follows:
Active XenApp and XenDesktop Service subscription
No existing NetScaler deployment
About 3,000 remote users are expected to regularly access the environment
Multi-factor authentication should be used for all external connections
Solution must provide load balancing for backend application servers
Load-balancing services must be in Location B

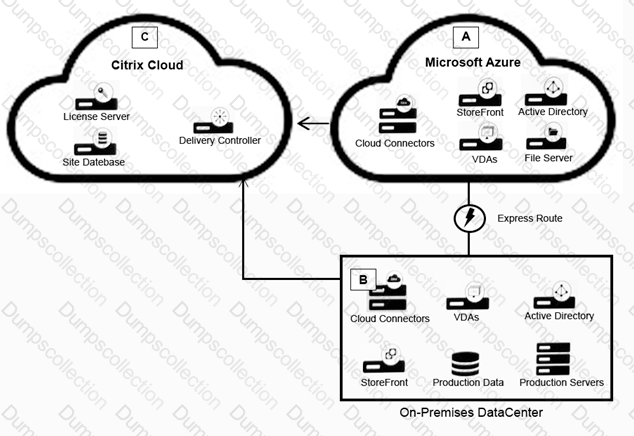

Click the Exhibit button to view the conceptual environment architecture.
The architect should use ________ in Location A, and should use _________ in Location B. (Choose the correct option to complete the sentence.)
Scenario: A Citrix Architect has implemented two high availability pairs of MPX 5500 and MPX 11500 devices respectively with 12.0.53.13 nc version. The Citrix ADC devices are set up to handle Citrix Gateway. Load Balancing. Application Firewall, and Content Switching. The Workspacelab infrastructure is set up to be monitored with Citrix Application Delivery Management version 12.0.53.13 nc by the Workspacelab administrators. The Workspacelab team wants to implement one more pair(s) of Citrix ADC MPX 7500 devices with version 12.0.53.13 nc.
The Citrix consulting team has assigned the task to implement these Citrix ADC devices in the infrastructure and set them up to be monitored and managed by Citrix ADC Management and Analytics {Citrix Application Delivery Management).
The following are the requirements that were discussed during the project initiation call:
Citrix Application Delivery Management should be configured to get the infrastructure information under sections such as HDX Insight, WEB Insight, and Security Insight.
Configuration on the new MPX devices should be identical to that of MPX 11500 devices.
Configuration changes after the deployment and initial setup should be optimized using Citrix Application Delivery Management.
Citrix Application Delivery Management should be utilized to configure templates that can be utilized by the Workspacelab team in future deployments.
As per the requirement from the Workspacelab team, Citrix Application Delivery Management should store the audited data for only 15 days.
However, the architect is NOT able to view any Information under Analytics. What should the architect do to fix this issue?
