Understanding Stab-in Rails:

Stab-in rails are designed to simplify the server installation process. These rails enable a quick and straightforward installation of the server into the rack.

Compatibility and Usage:

Stab-in rails are specifically designed for use in 4-post racks with square holes. This compatibility ensures stability and proper fitting within the rack structure.

Installation Process:

Before initiating the installation, verify that the rack is a 4-post, square hole type.

Position the stab-in rails to align with the square holes on the rack. Typically, stab-in rails have tabs that fit precisely into these square holes.

Mounting the Server:

Once the rails are securely attached to the rack, the server can be mounted. The design of the stab-in rails facilitates a smooth insertion of the server, ensuring it is securely held in place.

Ensuring Proper Fit:

After the server is mounted, check to ensure that it is level and securely attached. This step is crucial to prevent any movement or displacement that could occur due to vibrations or physical disturbances.

References:

Dell EMC PowerEdge XE9680 and XE8640 Installation and Service Manual: This manual provides detailed instructions on the use and installation of stab-in rails, including compatibility with specific rack types.

Dell EMC Technical Specifications Guide: Offers comprehensive specifications and compatibility information for different mounting and installation hardware used with Dell PowerEdge servers.

Weight and Size of the PowerEdge XE9680:

The Dell PowerEdge XE9680 server is designed for high performance, which often results in a larger and heavier form factor. Handling such servers typically requires multiple people to ensure safety and prevent damage.

Ergonomic Considerations:

Due to its weight and size, it is crucial to follow proper ergonomic practices when lifting and moving the server. This minimizes the risk of injury and ensures the server is handled safely.

Number of People Required:

For the XE9680, it is recommended to have four people when physically picking up the server to place it on the lift shelf. This recommendation is based on the server's weight and the need to maneuver it safely onto the lift.

Safety and Coordination:

Each person should position themselves on one side of the server, ensuring an even distribution of weight. This coordinated effort helps in lifting the server evenly and reducing the risk of dropping or mishandling it.

Procedure for Lifting:

Two individuals should position themselves at the front corners, and two at the rear corners of the server. On a coordinated count, all four should lift the server together and place it gently onto the lift shelf.

The lift shelf should be stable and able to support the weight of the server once it is placed on it.

Using the Lift:

Once the server is on the lift shelf, it can be maneuvered into the desired position in the rack. Ensure that the lift is rated for the weight of the XE9680 to avoid any mechanical failures.

Reference to Official Documentation:

Dell’s installation guides and service manuals typically provide guidelines on the number of personnel required for handling large and heavy servers, ensuring both safety and compliance with best practices.

References:

Dell EMC PowerEdge XE9680 Installation and Service Manual: This manual provides detailed guidelines on handling and installing the XE9680 server, including the recommended number of personnel required for safe handling.

Dell EMC Technical Specifications Guide: Offers insights into the physical dimensions and weight of the PowerEdge XE9680, informing the need for multiple personnel for safe handling and installation.

Redundancy and Load Balancing:

PowerEdge XE8640 servers are designed for high availability and reliability. One key aspect of this design is the redundancy provided by the server's Power Supply Units (PSUs). By connecting each PSU to a different power source, you ensure that the server remains operational even if one power source fails.

Power Source Configuration:

In this scenario, the rack has two distinct power sources: one supplying power to the two left PDUs and the other to the two right PDUs. To maximize redundancy, each PSU should be connected to a different power source.

PSU Placement:

PSU 1 in the left PDUs: Connect PSU 1 to one of the PDUs on the left side of the rack. This ensures that PSU 1 is powered by the first power source.

PSU 2 in the right PDUs: Connect PSU 2 to one of the PDUs on the right side of the rack. This ensures that PSU 2 is powered by the second power source.

Ensuring Redundancy:

By placing PSU 1 on the left and PSU 2 on the right, you create a redundant power configuration. If either power source fails, the other PSU can continue to supply power to the server, maintaining its operation.

Steps for Connection:

Step 1: Verify that the rack's PDUs are correctly connected to their respective power sources.

Step 2: Identify the left and right PDUs based on their power source connections.

Step 3: Connect PSU 1 to a PDU on the left side of the rack.

Step 4: Connect PSU 2 to a PDU on the right side of the rack.

Step 5: Confirm that both PSUs are securely connected and receiving power from separate sources.

Safety and Verification:

Ensure that all connections are secure and that the cables are managed to prevent interference with other components or airflow within the rack. Verify that each PSU is functioning correctly by checking the server's power status indicators.

References:

Dell EMC PowerEdge XE8640 Installation and Service Manual: This manual provides detailed guidelines on PSU connections and power redundancy configurations.

Dell EMC Technical Specifications Guide: Offers comprehensive details on the power requirements and redundancy features of the PowerEdge XE8640.

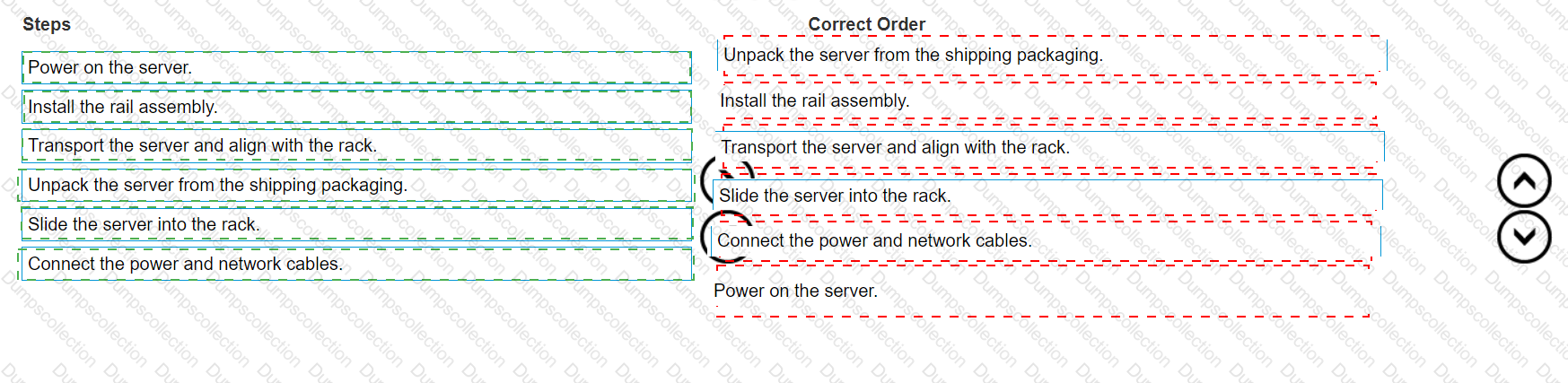

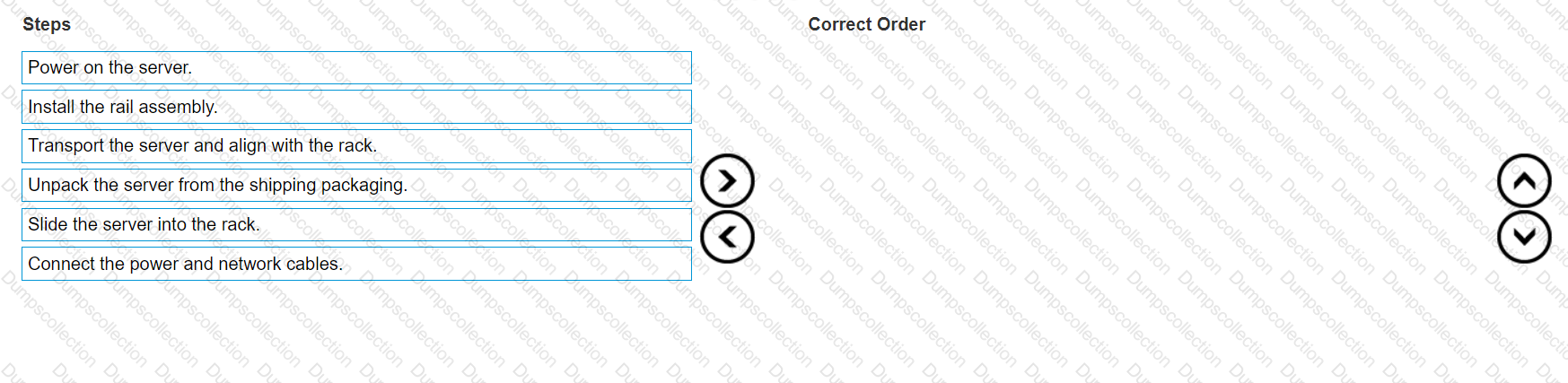

Unpack the server from the shipping packaging.

Install the rail assembly.

Transport the server and align with the rack.

Slide the server into the rack.

Connect the power and network cables.

Power on the server.

Unpack the server from the shipping packaging:

Carefully remove the XE9680 server from its shipping packaging. Inspect the server for any visible damage and verify that all components are included as per the packing list.

Install the rail assembly:

Install the rail assemblies into the rack. Follow the instructions provided in the server's installation guide to ensure the rails are securely and correctly mounted in the rack.

Transport the server and align with the rack:

Use a server lift or appropriate equipment to transport the server to the installation site. Align the server's inner rails with the rail assemblies in the rack to prepare for sliding the server into place.

Slide the server into the rack:

Carefully slide the server into the rack along the installed rail assemblies. Ensure it is properly seated and locked into place as per the installation guidelines.

Connect the power and network cables:

Connect the server's power supply units (PSUs) to the appropriate power distribution units (PDUs) in the rack. Connect the necessary network cables to the server's network ports.

Power on the server:

After ensuring all connections are secure, power on the server. Monitor the server’s boot process and ensure it starts up correctly without any errors.

References:

Dell EMC PowerEdge XE9680 Installation and Service Manual: This manual provides detailed step-by-step instructions on unpacking, installing, and powering on the server.

Dell EMC Technical Specifications Guide: Offers comprehensive details on the hardware specifications and installation procedures for Dell PowerEdge servers.
