Setting a VLAN ID of 0 on a network when running the Initial Configuration Wizard (ICW) for Dell EMC PowerStore indicates that the network will pass untagged traffic.In the context of VLANs, an ID of 0 is typically reserved to identify priority frames and is often used to indicate that a frame is not associated with a specific VLAN; hence, it is untagged1.

In practice, this means that when VLAN ID 0 is set during the ICW, the PowerStore system will treat the traffic as belonging to the native VLAN, which carries untagged traffic. This is important for network configurations where certain ports are expected to handle traffic that is not tagged for any specific VLAN.

For more detailed information on VLAN configurations and the implications of setting different VLAN IDs during the ICW, administrators should refer to the official Dell PowerStore Network Administration documentation. This documentation provides guidelines on network settings, including VLAN configurations, to ensure proper communication and operation within the storage network infrastructure.

The maximum number of base enclosures in a cluster for a Dell EMC PowerStore T installation is4.

When planning the installation of a Dell EMC PowerStore T cluster, it is important to consider the scalability of the system.

The PowerStore T series allows for clustering of multiple appliances to increase capacity and performance.

According to the Dell PowerStore: Clustering and High Availability document, there is a minimum of one PowerStore appliance and a maximum of four PowerStore appliances that can be configured in the cluster1.

This means that for a PowerStore T installation, you can start with a single appliance and scale up to a total of four appliances in a cluster as needed1.

For detailed information on clustering and high availability features of the Dell EMC PowerStore T series, you can refer to the official Dell documentation1.

To connect a service laptop to the Service LAN port of a Dell EMC PowerStore node, the laptop’s Ethernet interface should be configured with a static IP address and netmask. The correct configuration is:

IP:128.221.1.249

Netmask:255.255.255.0

Gateway: None1

This configuration allows the service laptop to communicate with the PowerStore nodes for SSH and PowerStore Manager (UI) access. It’s important to note that the laptop can be physically connected to one of the PowerStore nodes at a time, or to both nodes’ Service LAN ports using a small switch or hub.However, multiple appliances should never be connected to the same hub or switch as the nodes use the same internal IPs1.

Once the IP is configured as shown above and the physical connection is established, you can ping the relevant IPs:

Node A: 128.221.1.250

Node B: 128.221.1.251

You should only be able to ping the IPs where you are physically connected to. If you can ping, you can proceed to use SSH to connect to the IPs over port 22 using your preferred SSH client.For file transfers, SCP protocol must be used1.

For more detailed instructions on how to connect to the system over the Service LAN Ports for SSH and PowerStore Manager access, refer to the Dell Support Knowledge Base Article1.

When planning for a Dell EMC PowerStore T implementation, the minimum number of IP addresses required for the storage network is two. This is because each PowerStore T appliance requires a minimum of one IP address per node for the storage network.Since the PowerStore T model typically comes with two nodes (Node A and Node B), you will need at least two IP addresses—one for each node1.

It’s important to note that while two IP addresses are the minimum requirement, having additional IP addresses can be beneficial for optimization purposes.For example, the PowerStore 3000X, 5000X, 7000X, and 9000X models recommend having six IP addresses minimum per appliance for the storage network, with eight being recommended for optimization2.

In summary, for a basic PowerStore T setup, two IP addresses are required for the storage network to accommodate each node within the appliance. However, depending on the specific model and the scale of your implementation, more IP addresses may be recommended to ensure optimal performance and management of the storage network.

A Field Replaceable Unit (FRU) is a component that can be replaced by the user or technician without having to send the entire product or system to a repair facility.Dell’s Customer Replaceable Unit (CRU) program allows customers to replace designated hardware components, which are typically considered as FRUs1.

In the context of Dell PowerStore Maintenance, the Battery Backup Unit (BBU) is considered an FRU because it is designed to be easily replaced in the field. The BBU is critical for maintaining power to the system in the event of a power failure, ensuring that data is not lost and the system can be shut down gracefully.

The other components listed, such as DIMMs, Embedded IO Modules, and Nodes, may not be as easily replaceable by the customer or may require more technical expertise or special tools. Therefore, they are not typically classified as FRUs within the Dell PowerStore ecosystem.

For detailed procedures on replacing the BBU or any other FRU components, it is recommended to refer to the official Dell PowerStore Maintenance documents and follow the guidelines provided for safe and effective replacement. This ensures that the system integrity is maintained and any warranty or support agreements remain valid.

The LED combination that shows a connected and working node ispower LED: steady green fault LED: off.

The power LED on a Dell EMC PowerStore node indicates the power status of the node.

A steady green power LED typically signifies that the node is powered on and operating normally1.

The absence of the fault LED being lit (fault LED: off) indicates that there are no current faults detected with the node1.

This combination of a steady green power LED and no fault LED is the normal operating state for a node and suggests that it is connected and functioning properly1.

For more detailed information on the LED states and what they represent, you can refer to the Dell PowerStore Hardware Information Guide or the Dell Support Knowledge Base1.

To maximize the base enclosure capacity of a Dell EMC PowerStore 3000X system, the best configuration would be to add the largest available NVMe SSD drives.According to the Dell PowerStore Technical Primer, before attaching an NVMe expansion enclosure, all drive slots 0 to 21 in the base enclosure must be populated1. Therefore, adding 13 15360-GB NVMe SSD drives in slots 10-22 would maximize the base enclosure capacity.

Here are the steps for this configuration:

Verify that the PowerStore 3000X system supports 15360-GB NVMe SSD drives.

Ensure that there are no existing drive compatibility issues with mixing different types and sizes of drives.

Populate slots 10 through 22 with 15360-GB NVMe SSD drives.

Follow the Dell PowerStore documentation for proper drive installation procedures to ensure system compatibility and performance1.

This configuration leverages the maximum capacity drives available for the remaining slots in the base enclosure, thus providing the greatest amount of storage space within the existing hardware constraints. It is important to consult the latest Dell PowerStore documentation to confirm compatibility and any potential firmware or software requirements for this configuration.

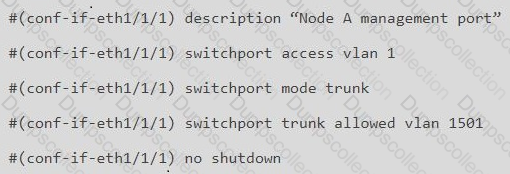

The network configuration shown for a Dell EMC PowerStore T node A management port indicates that VLAN 1 is set as the access VLAN, which means it will pass untagged traffic. The port is also configured as a trunk port, which allows it to pass traffic from multiple VLANs, but only VLAN 1501 is specified in the allowed list, meaning it will pass as tagged traffic. This configuration is typical for network interfaces on storage systems where management traffic is separated from other types of traffic for security and performance reasons.

In detail, the configuration commands are:

switchport access vlan 1: Sets VLAN 1 as the access VLAN, which passes untagged traffic.

switchport mode trunk: Enables trunking on the port, allowing it to pass traffic from multiple VLANs.

switchport trunk allowed vlan 1501: Specifies that only VLAN 1501 traffic is allowed on the trunk and will be tagged.

This setup ensures that management traffic is kept separate from other network traffic and can be managed accordingly.For more information on network configuration for Dell EMC PowerStore systems, you can refer to the PowerStore Networking Guide1. It is important to follow the official documentation to ensure proper configuration and maintenance of the network settings on your storage system.

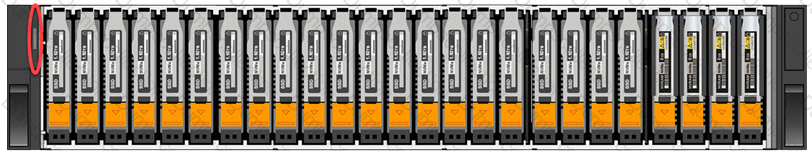

When the circled LED on the base enclosure of a Dell PowerStore system is illuminated amber, it typically indicates a fault within the base enclosure. This could be related to various issues such as power supply problems, cooling system malfunctions, or other operational faults that may affect the enclosure’s performance.

In Dell PowerStore systems, LED indicators are used to communicate the status of the system’s hardware components. An amber LED specifically suggests that there is a problem that needs to be addressed. The steps to investigate and resolve the issue usually include:

Checking the PowerStore Manager for alerts or messages that provide more details about the fault.

Inspecting the physical hardware to identify any visible signs of damage or failure.

Consulting the Dell PowerStore Hardware Guide for information on LED indicators and their meanings.

Following the recommended actions provided in the guide, which may include checking power connections, ensuring proper airflow, or other hardware checks.

If necessary, contacting Dell Support for further assistance, providing them with the details of the fault LED and any other relevant information observed.

It’s important to address any faults indicated by an amber LED promptly to maintain the integrity and reliability of the storage system. The Dell PowerStore documentation provides comprehensive information on LED indicators and troubleshooting steps to help resolve such issues effectively.

In the context of Dell EMC PowerStore, when a Storage Administrator needs to address specific fixes within their system, the appropriate Non-Disruptive Upgrade (NDU) software upgrade option to use isHotfixes.Hotfixes are targeted software updates that address specific issues or bugs within the system without requiring a full software release upgrade1.

The process for applying hotfixes typically involves:

Identifying the specific issue and the corresponding hotfix that addresses it.

Downloading the hotfix from the Dell Support website or through the PowerStore Manager interface.

Applying the hotfix to the PowerStore system using the NDU process, which ensures that the system remains operational and accessible during the upgrade.

Verifying that the hotfix has been applied successfully and that the issue has been resolved.

It is important to follow the detailed instructions provided in the Dell PowerStore Software Upgrade Guide when applying hotfixes.This guide outlines the steps for preparing for an NDU, including any preliminary checks and concluding checks to ensure the integrity of the upgrade process2.

Administrators should also consult the PowerStore Release Notes to determine which software upgrade packages, including hotfixes, are required for their specific PowerStore model and configuration2. Adhering to these guidelines helps ensure that the system is updated correctly and that the specific fixes are applied effectively.
