EMC Dell RecoverPoint Operate Achievement D-RP-OE-A-24 Exam Dumps: Updated Questions & Answers (October 2025)

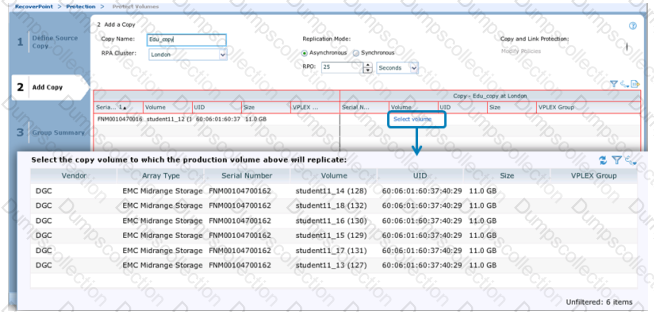

When creating a Consistency Group using Unisphere on RecoverPoint/EX, the wizard displays volumes for selection as copy volumes based on specific criteria. The volumes displayed must be masked to the selected cluster and must be the same size or larger than the production volume. This ensures that the copy volume has sufficient capacity to hold all the data from the production volume and any additional data that may be replicated in the future.

The process for selecting the copy volume involves:

Identifying all volumes visible to the selected cluster.

Filtering out volumes that are smaller than the production volume to prevent potential space issues.

Presenting the remaining volumes as options for the administrator to choose as the copy volume.

This approach prevents the accidental selection of a volume that is too small to serve as a copy volume, which could lead to replication issues or data loss.It also allows for flexibility in choosing a larger volume if desired, which can be beneficial in scenarios where future growth is anticipated1.

In Dell RecoverPoint, the Journal volumes play a crucial role in asynchronous replication. They store a history of write operations that have occurred on the production volumes, allowing for point-in-time recovery and data rollback. The write operations to the Journal volumes are typically large sequential writes.This is because the Journal is designed to efficiently record and consolidate changes made to the production data, which often involves large blocks of data being written in sequence1.

The Journal’s sequential write pattern is optimized for the replication process, ensuring that data is recorded with minimal impact on the production environment.This design choice reflects the need for the Journal to quickly and reliably capture data changes, which can then be replicated to the remote site asynchronously, without requiring immediate acknowledgment from the remote site1.

For detailed information on the configuration and operation of the Journal in a RecoverPoint system, it is recommended to refer to the official Dell RecoverPoint documentation or contact Dell EMC support for guidance specific to your system’s configuration and version1.

In a Dell EMC RecoverPoint environment, Snap-based replication is supported by the Unity array. This feature leverages the intelligent array-based snapshot capability available in Dell EMC Unity platforms.It enhances asynchronous replication by allowing a user-defined interval for replication, which is particularly useful for environments where minimizing the replication window is critical1.

The Snap and Replicate feature is enabled by leveraging the intelligent array-based snapshot capability available in Dell EMC VNX, XtremIO, and VMAX3/AF platforms as well1.However, for the specific context of the question, which focuses on the EMC array that supports Snap-based replication in a RecoverPoint environment, the correct answer is Unity2.

For the most accurate and up-to-date information, it is always best to consult the latest official Dell RecoverPoint documentation or contact Dell EMC support directly3.

The setting to change the primary RecoverPoint Appliance (RPA) for specific Consistency Groups is configured under the Group Policy tab for the Consistency Groups.This tab allows administrators to manage and adjust policies that affect the entire Consistency Group, including the assignment of the primary RPA, which is responsible for managing the replication for the group1.

The process for changing the primary RPA typically involves:

Accessing the Unisphere for RecoverPoint interface.

Navigating to the Consistency Groups section.

Selecting the specific Consistency Group to be modified.

Going to the Group Policy tab.

Adjusting the settings to designate a new primary RPA for the group.

This change can help balance the workload across the RPAs in the RecoverPoint system, ensuring that no single RPA becomes a performance bottleneck and that the replication process remains efficient and effective1.

The “Detect Bottlenecks” tool in Unisphere for RecoverPoint is designed to analyze the performance of Consistency Groups and identify any potential bottlenecks that may be affecting replication efficiency. If the tool detects issues that require user action, it will provide recommendations on how to address them. The steps involved in using this tool are:

Access Unisphere for RecoverPoint: Log into the Unisphere interface.

Navigate to System Analysis Tools: Locate the section for system analysis tools.

Select ‘Detect Bottlenecks’: Choose this option to start the analysis.

Review Results: Examine the output for any identified bottlenecks and follow the recommendations provided to resolve any issues and optimize replication performance1.

This tool is an essential part of the RecoverPoint system analysis suite, helping administrators maintain efficient replication and ensure data protection1.

To reduce the impact of the initial volume synchronization on production applications in a Dell RecoverPoint system, the config_link_policy command can be used with the regulate_application=yes parameter.This command configures the link policy for a Consistency Group and allows for the regulation of I/O to minimize the impact on production applications during synchronization1.

The process involves:

Identifying the Consistency Group: Determine the name of the Consistency Group that contains the production volume you wish to regulate.

Running the command: Execute the config_link_policy command with the appropriate parameters, including the Consistency Group name and the copies involved.

Setting regulate_application=yes: This parameter tells the system to regulate the application I/O, which helps to manage the load on production applications during the initial synchronization.

Monitoring the impact: After applying the command, monitor the production applications to ensure that the impact of the synchronization is minimized as intended.

This command is part of the RecoverPoint CLI and is used to manage the performance impact of replication activities on production environments1.

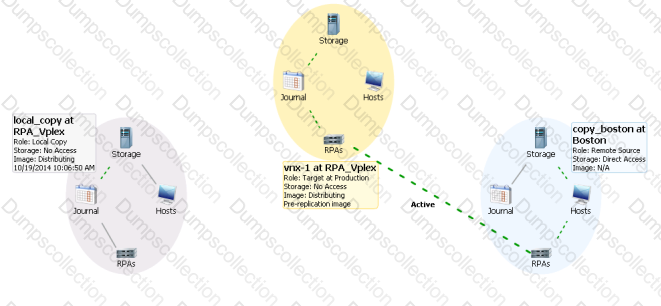

When the “Test a Copy” wizard is in progress in a Dell RecoverPoint environment, it temporarily disconnects the local copy from the production and remote copies to allow testing of the data at a specific point in time without affecting the ongoing replication and production operations. The steps involved are:

Initiate Test a Copy: The administrator starts the “Test a Copy” wizard from the RecoverPoint management interface.

Disconnect Local Copy: The wizard disconnects the local copy from the production and remote copies to isolate it for testing.

Perform Testing: The administrator or users perform necessary tests on the local copy, which is now in an isolated state.

Reconnect Local Copy: Once testing is complete, the wizard will reconnect the local copy to resume normal replication and protection operations.

This process ensures that testing can be conducted on a consistent dataset without impacting the production environment or replication processes1.

When using the CLI to create a new Consistency Group in RecoverPoint, after initiating the process with the create_group command, the next step involves adding volumes to the group. The add_replication_volume command is used to add a volume to a Consistency Group as a replication volume.This command specifies the volume to be replicated and associates it with the newly created group1.

The sequence of commands would typically follow this pattern:

Run create_group to initiate the creation of a new Consistency Group.

Run add_replication_volume to add each production volume that needs to be replicated within the Consistency Group.

Additional commands would follow to configure the properties of the Consistency Group and its replication sets1.

It’s important to note that the add_group_set command is used for different purposes, such as grouping multiple Consistency Groups together, and the create_replication_volume and create_production_copy commands are not standard commands in the RecoverPoint CLI for this context1.

In Dell EMC RecoverPoint, virtual RPAs (vRPAs) use iSCSI protocol for connections. This is because vRPAs are designed to operate in virtual environments where iSCSI is commonly used for storage networking due to its ability to work over standard IP networks.Physical RPAs, such as Gen-5 and Gen-6, typically use Fibre Channel (FC) for direct storage connectivity1.

Here’s a breakdown of the connectivity:

vRPA: Utilizes iSCSI for connections to protected storage. This is suitable for virtualized environments where the RecoverPoint for Virtual Machines (RP4VMs) operates.

Gen-5 and Gen-6 RPAs: These are physical appliances that generally use Fibre Channel for connectivity, which is more common in physical data center environments where dedicated storage networks are present1.

It’s important to choose the correct RPA type based on the storage infrastructure and connectivity requirements of the environment1.

The get_system_status command in the RecoverPoint CLI is used to provide a summary of the system’s health, including any errors and warnings. This command can be executed to check the status of one site or the entire RecoverPoint system. The output includes information about the RecoverPoint Appliances (RPAs), Consistency Groups, and any issues that may need attention.

The process for using this command is as follows:

Access the CLI: Log into the RecoverPoint CLI using appropriate credentials.

Run the Command: Execute the get_system_status command to retrieve the system status.

Review the Summary: The command output will display a summarization of the system’s health, including errors and warnings.

Take Action: Based on the summary, the administrator can take necessary actions to address any reported issues.

This command is a useful tool for administrators to quickly assess the state of the RecoverPoint environment and ensure that it is functioning correctly1.
