When expanding an existing VxRail Original Storage Architecture (OSA) cluster, the VxRail Manager performs stringent pre-validation checks to ensure that the incoming node conforms to the operational and architectural boundaries of the active cluster. Three distinct violations will immediately trigger a host "Incompatible" status message within the expansion wizard. First, a major software version mismatch (Choice A), such as attempting to inject a node running VxRail code 7.0.411 into a cluster operating on 8.0.200, is strictly blocked because all nodes must share the same major release line to maintain lifecycle management integrity.

Second, a CPU vendor mismatch (Choice B), where an AMD-based node is introduced into an Intel-powered cluster, is fundamentally incompatible due to disparate processor instruction sets that break VMware vMotion requirements and vSAN cluster homogeneity. Third, mixing storage tiers (Choice D), specifically attempting to join an all-flash node (all SSDs) to a hybrid node cluster (utilizing HDDs for capacity), violates core vSAN deployment design configurations. While mixing drive interfaces like NVMe and SAS SSDs within an all-flash cluster is structurally acceptable under specific constraints, mixing drive types or processor architectures introduces deviations that fail validation.

When deploying VMware vSAN Express Storage Architecture (ESA) within a Dell VxRail cluster environment managed by an internal, VxRail-managed vCenter Server, enforcing data security through cryptographic measures is fully supported. To enable vSAN Data-at-Rest Encryption, the platform requires an active key management infrastructure to handle keys securely. The architecture supports two primary types of key providers: the Native Key Provider (NKP) and the Standard Key Provider.

The Native Key Provider is an embedded, software-defined feature within vSphere that generates and manages keys internally, eliminating the requirement to deploy or license an external, third-party Key Management Server (KMS) system. The Standard Key Provider allows the internal vCenter Server to securely interface with external, KMIP-compliant enterprise Key Management Servers to manage key distribution. Options mentioning Trusted Platform Module (TPM) 1.2 are invalid because modern vSAN ESA implementations demand advanced cryptographic sealing mechanisms that strictly require TPM 2.0 on the host hardware if hardware-backed protection is layered over the key provider architecture; TPM 1.2 fails validation checks.

The VxRail REST API platform adheres strictly to Representational State Transfer (REST) design principles, leveraging standardized HTTP methods to dictate operations against infrastructure resources. When an administrator intends to interact with the /rest/vxm/v5/system endpoint specifically to retrieve the current cluster configuration parameters, operational state, and component inventory details, they must invoke the GET HTTP method.

In RESTful web services, the GET verb is universally defined as a safe, idempotent read operation used exclusively to fetch a representation of a specified resource without altering its underlying state. Alternative HTTP methods are mapped to destructive or state-changing actions within the VxRail Manager API gateway. For instance, POST is reserved for executing initialization workflows or generating new system objects, PUT and PATCH are used to modify existing resource configurations or update target properties, and DELETE handles object removals. Because retrieving configuration data is purely an information readout task, GET is the correct operational method.

During the hardware preparation and initial configuration phase of Dell VxRail nodes, specific Integrated Dell Remote Access Controller (iDRAC) settings must be manually validated or modified to ensure proper communication and discovery by the VxRail Manager during cluster creation.

First, the iDRAC NIC Selection must be explicitly set to Dedicated. This configuration ensures that out-of-band management traffic is routed exclusively through the server's dedicated iDRAC port rather than sharing a LOM or OCP adapter network path, ensuring clean channel segregation and management path integrity. Second, the Enable IPMI over LAN attribute must be set to Enabled. The automated VxRail Deployment Wizard relies directly on Intelligent Platform Management Interface (IPMI) commands over the network to securely query, identity-check, and configure node states during initialization. If IPMI over LAN is left disabled, the VxRail Manager cannot communicate with the chassis management layer, causing automated host validation to fail. Other options, such as modifying the Channel Privilege Level Limit to Operator or altering default Auto Negotiation parameters, are not required and can disrupt expected configuration fabrics.

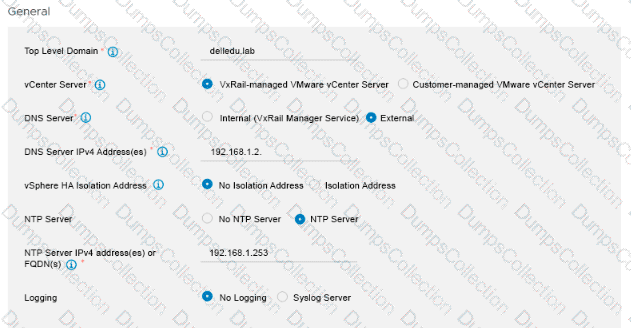

The exhibit illustrates the "General" settings section within the VxRail Deployment Wizard, where foundational infrastructure parameters are defined. Crucially, the radio button for "VxRail-managed VMware vCenter Server" is explicitly selected. In a VxRail deployment topology, choosing an internal, VxRail-managed vCenter server fundamentally changes how lifecycle management (LCM) operations are orchestrated for the cluster.

When a cluster is deployed with a VxRail-managed vCenter, the vCenter Server virtual appliance is tightly coupled with the VxRail Manager platform. This deep architectural integration guarantees that all future patch cycles, security definitions, and major platform upgrades for the vCenter Server are natively included within the unified VxRail composite update bundles. When an administrator applies an update package through the VxRail Manager dashboard, the orchestration engine automatically conducts pre-checks and applies the software versions to both the VxRail Manager and the vCenter Server in a fully automated, validated sequence. Conversely, infrastructure services configured as "External," such as the designated DNS or NTP servers, reside outside the VxRail ecosystem and are not targeted by VxRail lifecycle payloads. Therefore, the vCenter Server is the specific component captured in future update packages.

When expanding an existing VxRail cluster utilizing the Express Storage Architecture (ESA), strict baseline validation rules govern node addition. A critical prerequisite for the automated "Add VxRail Hosts" wizard is the alignment of the VxRail software release train. Attempting to add a node running VxRail 8.0.000 code into an active cluster operating on a newer release like 8.0.100 will immediately flag the host as "Incompatible" within the manager interface.

The automated cluster expansion framework mandates that the incoming host operate at a codebase version fully compatible with or exactly matching the existing cluster's active patch level to prevent lifecycle management vulnerabilities and operational drift. If a version mismatch exists where the target host operates on an older or disparate software baseline, the system cannot orchestrate uniform component updates or properly map vSAN ESA storage pools across the nodes. To resolve this incompatibility, the engineer must update the standalone node's runtime software environment to match the specific 8.0.100 cluster baseline before re-initiating the host expansion workflow. Other infrastructure variations, such as switch tagging adjustments or cabling layouts, will not clear this software compatibility gate.

Dell VxRail nodes feature a highly modular hardware architecture that can be customized to align with specialized enterprise workloads, storage protocols, and advanced distributed networking topologies. While core compute elements like primary server CPUs and system memory are standard requirements, several acceleration and connectivity expansion options are classified as optional components depending on the specific node model.

First, Graphical Processing Units (GPUs) (Choice A) can be optionally integrated into performance-focused or graphics-ready profiles—such as the VxRail V-Series—to efficiently offload intensive graphic rendering, virtual desktop infrastructure (VDI), and artificial intelligence or machine learning computational workloads from the host CPU. Second, Fibre Channel Host Bus Adapters (FC HBAs) (Choice B) are available as an optional add-on card, providing dedicated hardware links to connect nodes to external SAN storage arrays, which is a mandatory configuration for VxRail dynamic node topologies. Third, modern iterations of the VxRail hardware family support Smart Data Processing Units (SmartDPUs) (Choice C) paired with the VMware vSphere Distributed Services Engine. These SmartDPUs offload foundational core networking and security microservices directly onto the smartNIC silicon, freeing up server CPU cycles for consumer application VMs.

Deploying a secondary or subsequent VxRail cluster onto an active, pre-existing VxRail-managed vCenter Server creates a multi-cluster architecture overseen by a single centralized instance. To ensure a successful deployment via the configuration portal and wizard, three rigid organizational and environmental prerequisites must be satisfied. First, the automated deployment wizard must join the incoming infrastructure directly to the existing Single Sign-On (SSO) domain (Choice A) established during the primary cluster's deployment, matching security and identity tokens across the management boundary.

Second, an administrative anchor point must exist prior to launching initialization; therefore, a preconfigured data center object (Choice C) must be explicitly defined within the vCenter inventory to house the new cluster and its associated resource groups. Third, network-level name resolution mapping must be established in advance, which requires preconfigured forward and reverse DNS entries (Choice E) on the customer's enterprise DNS server for the new VxRail Manager and all incoming ESXi host management interfaces. Because the vCenter Server is already running and active on the network, reserved IP addresses for the vCenter itself are irrelevant, and management VLAN tracking applies to node-specific targets rather than global vCenter definitions.

Maintaining configuration integrity across a VxRail cluster is imperative prior to executing automated lifecycle management (LCM) operations. Before initiating a comprehensive VxRail software upgrade, deployment engineers and administrators must evaluate the environment using the Compliance Report found specifically on the VxRail Updates Compliance tab (Choice B). This specialized report actively scans the entire hyperconverged infrastructure cluster, cross-referencing the active software, driver, and component firmware states against the definitive target VxRail Continuously Validated State baseline.

The core purpose of this evaluation is to proactively identify any instances of configuration drift. Configuration drift typically occurs when an administrator manually introduces unvalidated updates, installs standalone VIBs, or applies out-of-band firmware updates directly via the ESXi command line or iDRAC, bypassing the unified VxRail Manager interface. If drift is detected, the upgrade engine flags the non-compliant nodes, allowing engineers to remediate or reconcile the variations before launching the orchestration script, thereby preventing mid-upgrade installation failures or cluster state validation timeouts.
