EMC Dell XtremIO Deploy Achievement D-XTR-DY-A-24 Exam Dumps: Updated Questions & Answers (December 2025)

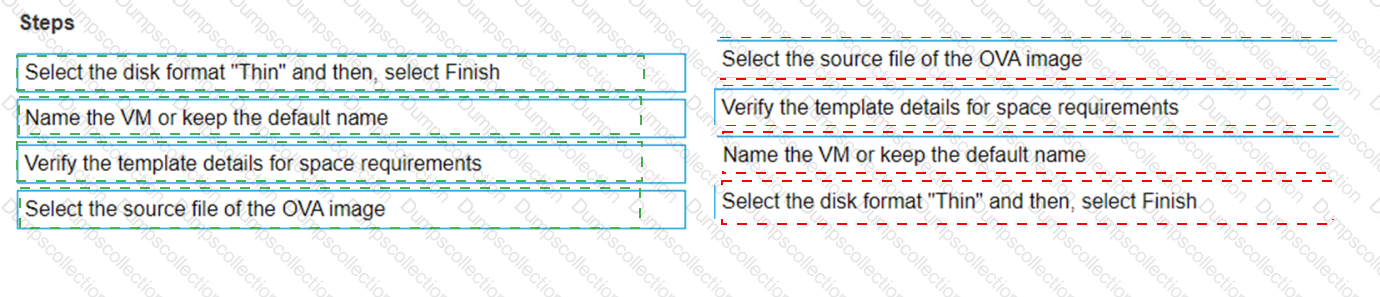

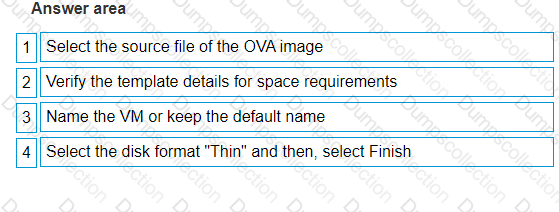

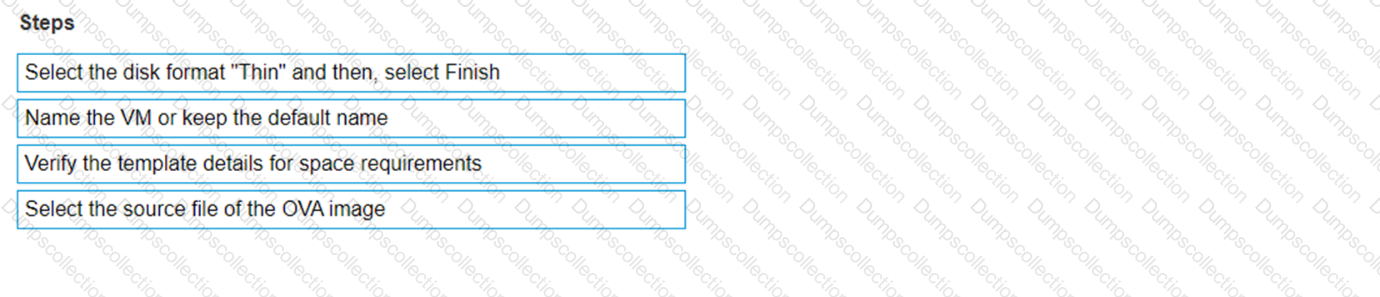

The documented sequence of steps to deploy an XMS OVF template includes:

Select the source file of the OVA image.

Verify the template details for space requirements.

Name the VM or keep the default name.

Select the disk format “Thin” and then, select Finish.

Select the Source File: Begin by selecting the source file of the OVA image, which is the package containing all files for the VM1.

Verify Template Details: Check the template details to ensure there is enough space on the datastore for the VM1.

Name the VM: Assign a unique name to the VM or retain the default name provided in the OVA template1.

Select Disk Format: Choose the “Thin” disk format to save storage space, as it allocates space as needed rather than upfront1.

Complete the Deployment: Finalize the deployment process by selecting ‘Finish’, which will deploy the VM to your environment1.

The send-syr-notification command in the XtremIO XMCLI (XtremIO Management Command Line Interface) is used to test the Connect Home functionality. This feature allows the XtremIO system to send system health and status information to Dell Technologies for proactive monitoring and support. References := Dell Deployment ServicesTo test the Connect Home functionality using the XtremIO XMCLI, the send-email-notification command can be used. This command is designed to send a test email to verify that the email notification system is properly configured and able to send out alerts.

The Dell XtremIO Deploy Achievement documents specify different numbers for the maximum volumes in various contexts. However, for the XtremIO Consistency Group, the supported and QA certified number of volumes is 512. This is based on the authoritative information provided in the official release notes and support documents from Dell. It’s important to note that while there may be higher numbers mentioned in some technical documents or API responses, such as 60000 or 32000, these are either not recommended or pertain to different aspects of the XtremIO system, not specifically to the Consistency Group1.

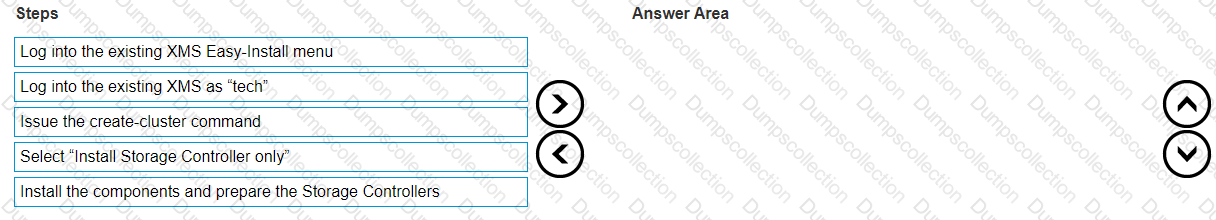

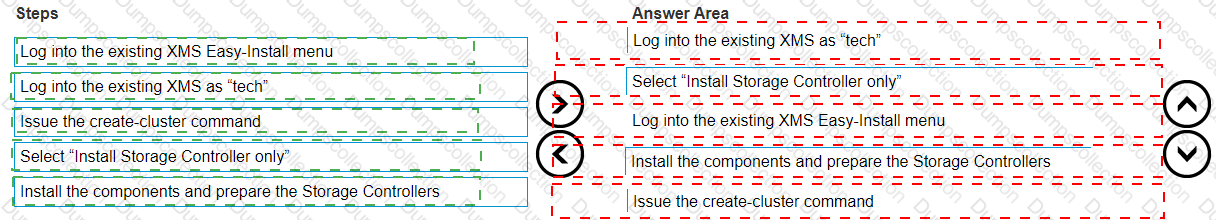

 Log into the existing XMS as "tech"

 Select “Install Storage Controller only”

 Log into the existing XMS Easy-Install menu

 Install the components and prepare the Storage Controllers

 Issue the create-cluster command

Log into the existing XMS as "tech": Begin by logging into the existing XtremIO Management Server (XMS) using the "tech" user account, which has the necessary privileges to perform installation and configuration tasks.

Select “Install Storage Controller only”: Choose the option to install only the storage controller to ensure the proper setup of the storage controllers in the cluster.

Log into the existing XMS Easy-Install menu: Access the Easy-Install menu on the XMS to guide you through the setup process.

Install the components and prepare the Storage Controllers: Follow the instructions to install all necessary components and prepare the storage controllers for integration into the cluster.

Issue the create-cluster command: Finally, execute the create-cluster command to officially create and configure the new XtremIO X1 cluster within the XMS.

References:

Dell XtremIO Installation and Setup Guide

Dell XtremIO Deployment Services

XtremIO Management Server (XMS) Documentation

To update the Install base record for Dell XtremIO in addition to the PSNT, the following data needs to be provided:

Microcode Version: This refers to the firmware version running on your XtremIO system. It’s essential to have the latest microcode version reported for support and maintenance purposes.

Installation Configuration: This includes details about the XtremIO system’s setup, such as cluster configuration, number of X-Bricks, and any custom settings applied during the installation.

The process of updating the Install base record typically involves:

Gathering Information: Collect the microcode version from the XtremIO Management Server (XMS) interface and document the installation configuration details.

Submitting the Data: Provide the collected information to Dell Support or through the appropriate channel as directed in the Dell XtremIO Deploy Achievement documentation.

Verification: Dell Support may verify the provided information against their records and the actual system configuration to ensure accuracy.

Record Update: Once verified, Dell Support will update the Install base record with the new information.

For detailed instructions and the official procedure, refer to the Dell XtremIO Deploy Achievement document1. It’s crucial to follow the official guidelines to ensure that the Install base record is accurately updated, which can be critical for effective support and maintenance of the XtremIO system.

The delay in the quick formatting process of a 2 TB LUN from an XtremIO storage array when installing a new Microsoft Windows 2012 host is likely caused by the UNMAP feature being enabled. The UNMAP command is part of the SCSI thin provisioning set, which allows the host to inform the storage array which blocks are no longer in use and can be reclaimed. When UNMAP is enabled, the quick format process may take longer because the storage array needs to process these UNMAP commands and perform the necessary space reclamation tasks1.

It’s important to note that while UNMAP can improve storage efficiency, it can also introduce overhead during operations like formatting, which can lead to delays. For detailed procedures and best practices, it is recommended to consult the Official Dell XtremIO Deploy Achievement document or reach out to Dell support for the most accurate guidance.

Failed Cluster Creation: When a cluster creation fails, logs need to be collected for troubleshooting.

Debug Command: Running the create-debug-info debug-info-name=initial setup command helps in collecting the necessary logs for analysis.

Log Bundle Collection: This command gathers all relevant information needed to diagnose and fix the cluster creation issue.

References:

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

Data Protection Group (DPG) in XtremIO X2: The DPG is designed to tolerate multiple disk drive failures while continuing to provide data services.

Failure Tolerance: In a fully-populated DPG with sufficient capacity, it would require 7 disk drives to fail sequentially to stop the data services, as XtremIO is designed with high fault tolerance and redundancy.

References:

Dell XtremIO X2 Data Protection Guide

XtremIO Architecture and Fault Tolerance Documentation

Dell XtremIO Deployment Services

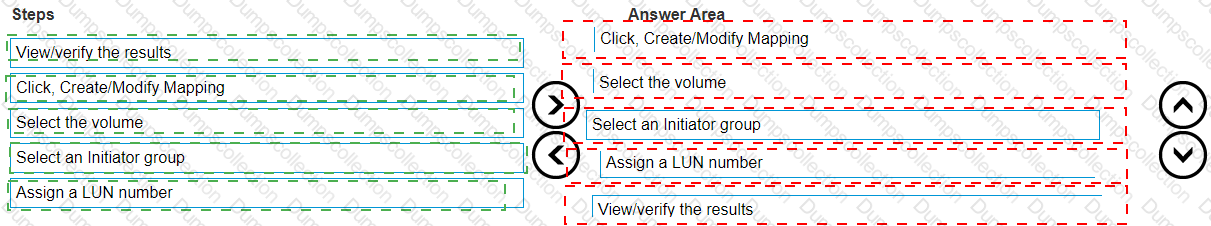

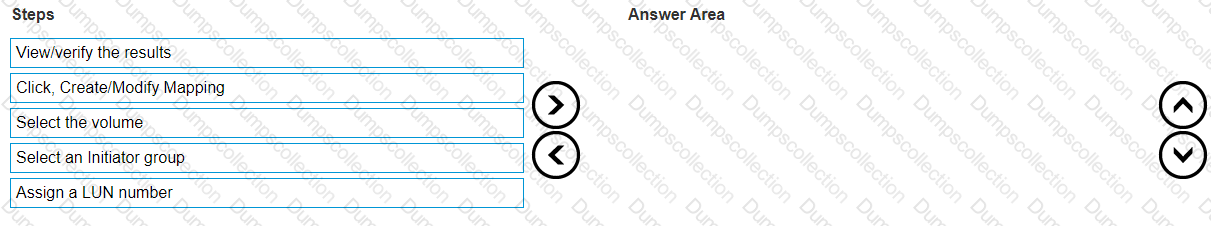

 Click, Create/Modify Mapping

 Select the volume

 Select an Initiator group

 Assign a LUN number

 View/verify the results

Click, Create/Modify Mapping: Start by navigating to the section where you can create or modify mappings in the XtremIO WebUI.

Select the volume: Choose the volume you want to map to a host from the list of available volumes.

Select an Initiator group: Pick the appropriate initiator group, which represents the host or group of hosts to which the volume will be mapped.

Assign a LUN number: Assign a Logical Unit Number (LUN) to the volume, which the host will use to access it.

View/verify the results: Finally, review the mapping configuration to ensure that everything is set up correctly and verify that the host can access the mapped volume.

References:

Dell XtremIO User Guide

XtremIO WebUI Documentation

Dell XtremIO Deployment Services

Best practices for managing volumes and host mappings in XtremIO environments

Understanding XtremIO X1 DAE Power Cables: The Disk Array Enclosure (DAE) power cables are critical components in ensuring that the storage system remains operational. Removing these cables disconnects power to the DAE, which should only be done under specific circumstances.

Scenarios for Power Cable Removal:

Normal Shutdown Procedure: In a normal shutdown, the system is powered down gracefully using management interfaces and proper shutdown commands. Physical removal of power cables is typically not part of this process.

Shutdown after Initial Installation: After the initial installation, the system is powered on and configured. A shutdown would again follow a graceful procedure and not involve removing power cables unless there's a specific issue.

Shutdown due to Power Loss: In the event of power loss, the system would already be down, and there would be no need to remove the power cables as the system has lost power.

Emergency Shutdown Procedure: In an emergency, where the system must be immediately powered down to protect data or hardware, it may be necessary to remove the power cables quickly.

Best Practices and Safety:

Removing power cables as part of an emergency shutdown is typically a last resort measure when immediate power disconnection is required to prevent damage or ensure safety.

Following manufacturer guidelines for emergency shutdown ensures that the system is protected and can be safely restarted when the emergency is resolved.

References:

Dell XtremIO Safety and Emergency Procedures

Dell XtremIO Deployment Services

XtremIO X1 User and Maintenance Guide
