EMC XtremIO Solutions and Design Specialist Exam for Technology Architects E20-526 Exam Dumps: Updated Questions & Answers (December 2025)

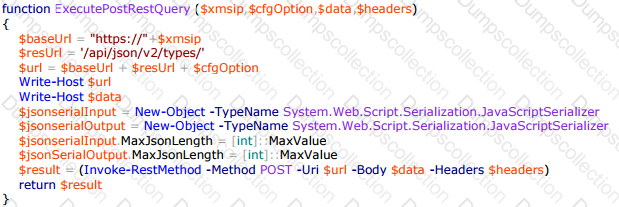

An example of a generic wrapper function that queries XtremIO REST API using HTTP/POST to create a new object with specified properties.

References: https://www.emc.com/collateral/white-papers/h14980-wp-accelerate-sql-lifecycle-management.pdf

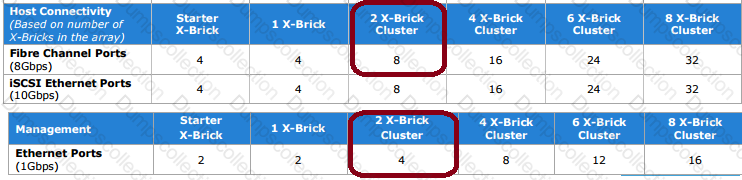

EMC XTREMIO 4.0 SYSTEM SPECIFICATIONS

References:http://www.aecl.com/AECWeb/media/Assets/PDF/h12451-xtremio-4-system-specifications-ss.pdf

IDC outlines a criteria some criteria for selecting a testing tool:

* Generate workloads

* Capture results for analysis:

Throughput

IOPS

Latency

Etc.

References:http://info.xtremio.com/rs/xtremio/images/IDC_Flash_Array_Test_Guide.pdf

Large block I/O by nature incurs higher latency.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 6

References:https://docs.openstack.org/juno/config-reference/content/XtremIO-cinder-driver.html#xtremio-management-ip

In an environment where a host with two HBAs (VMware Best Practice) is connected to two fabrics and storage array with two Storage Controllers (EMC VNX, for example) the host will have four paths to a LUN: 2 Controllers x 2 HBAs = 4 paths

If you go to the extreme and configure your XtremIO with eight X-Brick, you have 16 controllers. Again, two HBAs per host and the max number of LUNs you can attach to an ESXi host will be 32… I understand, different OS’es may have different limits than VMware and this logic will not be applicable.

If you have hit the limit of 1024 paths per host (1024 / 4 controllers / 2 HBAs = 128 LUNs) and need to provision more LUNs, the best way will be to re-zone the host to limit the number of X-Bricks / Controllers the host HBA can connect to.

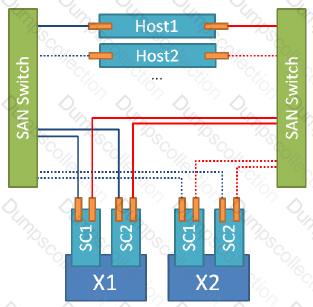

The following diagram displays the logical connection topology for 4 paths.

EMC recommended setting for Solaris include that the /etc/system file be modified to include the following parameter:

* Set maximum IO size

set maxphys = 0x400000

This also requires increase of the maximum I/O size for the disk driver. The corresponding entry and file for this change are different for different Solaris versions, as follows:

For Solaris 10 (SPARC):

File: /kernel/drv/ssd.conf

Setting: ssd_max_xfer_size=0x400000;

For Solaris 10 (x86):

File: /kernel/drv/sd.conf

Setting: sd_max_xfer_size=0x400000;

Etc.

References:EMC Host Connectivity Guide for Oracle Solaris, page 167

https://www.emc.com/collateral/TechnicalDocument/docu5132.pdf

Each Storage Controller includes two 8Gb/s Fibre Channel (FC) ports.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 8

DIFF protocol - A vendor specific SCSI command which RecoverPoint uses to query XtremIO with in order to obtain a bitmap of changes between two snapshot sets.

RecoverPoint uses the output of DIFF command to read the actual data and transfer it to the target side.

References: EMC RECOVERPOINT REPLICATION OF XTREMIO, Understanding the essentials of RecoverPoint Snap-based replication for XtremIO, page 9

https://www.emc.com/collateral/white-papers/h14296-wp-recoverpoint-replication-of-xtremio.pdf
