Fortinet FCP - FortiManager 7.4 Administrator FCP_FMG_AD-7.4 Exam Dumps: Updated Questions & Answers (October 2025)

Two statements about Security Fabric integration with FortiManager that are true are:

A. The Fabric View module enables you to generate the Security Fabric ratings for Security Fabric devices.

The Fabric View module in FortiManager allows administrators to generate Security Fabric ratings, which assess the security posture of the entire Security Fabric environment.

C. The Fabric View module enables you to view the Security Fabric ratings for Security Fabric devices.

In addition to generating ratings, the Fabric View module provides visibility into the Security Fabric ratings for all connected devices, offering a consolidated view of security across the fabric.

Options B and D are incorrect because:

Bis misleading as the Security Fabric settings are generally configured and managed separately from other device-level settings.

Dis incorrect as there is no specific requirement for a Security Fabric license, group name, and password solely for FortiManager integration.

FortiManager References:

Refer to FortiManager 7.4 Security Fabric Integration Guide: Managing Security Fabric and Generating Security Fabric Ratings.

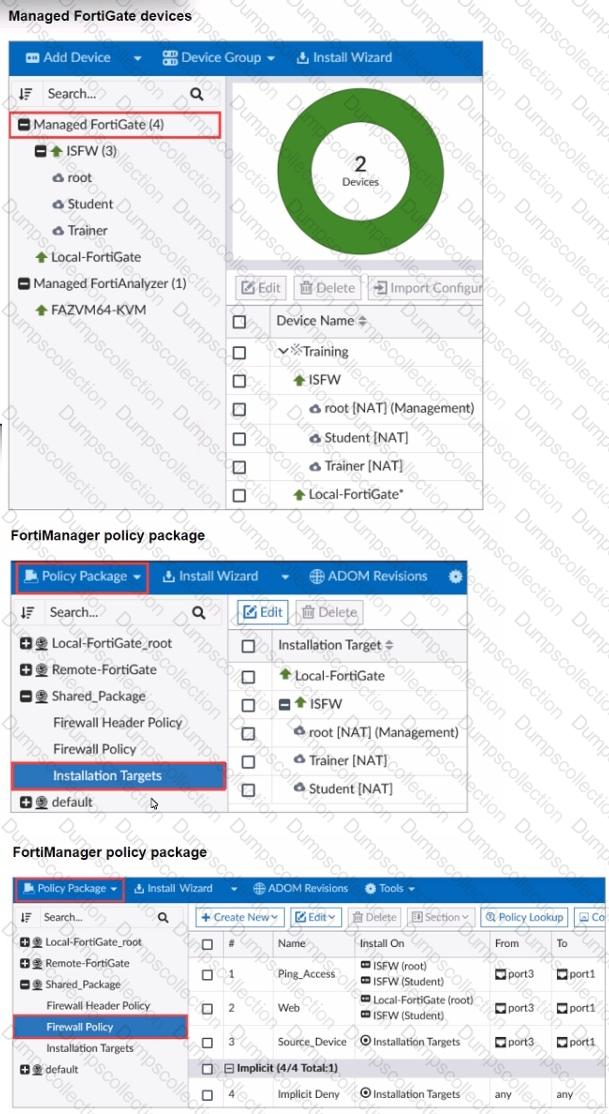

Option A: Policy seq.S will be installed on all managed devices and VDOMs that are listed under Installation Targets.This is correct. The "Install On" column indicates that the policy is targeted for installation on all listed managed devices and VDOMs under Installation Targets.

Option D: Policy seq.# 1 will be installed on the ISFW device root[NAT] and Student[NAT] VDOMs only.This is correct. Policy sequence #1 specifies that it will be installed only on the ISFW device and the VDOMs 'root[NAT]' and 'Student[NAT]' as indicated by the "Install On" column.

Explanation of Incorrect Options:

Option B: Policy seq.# 3 will be skipped because no installation targets are specifiedis incorrect because it is clearly listed under "Installation Targets," which means it will be installed according to the specified configuration.

Option C: Policy seq.# 2 will not be installed on the Local-FortiGate root VDOM because there is no root VDOM in the Installation Targetis incorrect as the exhibit does not show any specific exclusion for seq.# 2 on the Local-FortiGate root VDOM.

FortiManager References:

Refer to the FortiManager Administration Guide sections on "Policy Packages" and "Policy Installation Targets" for more details.

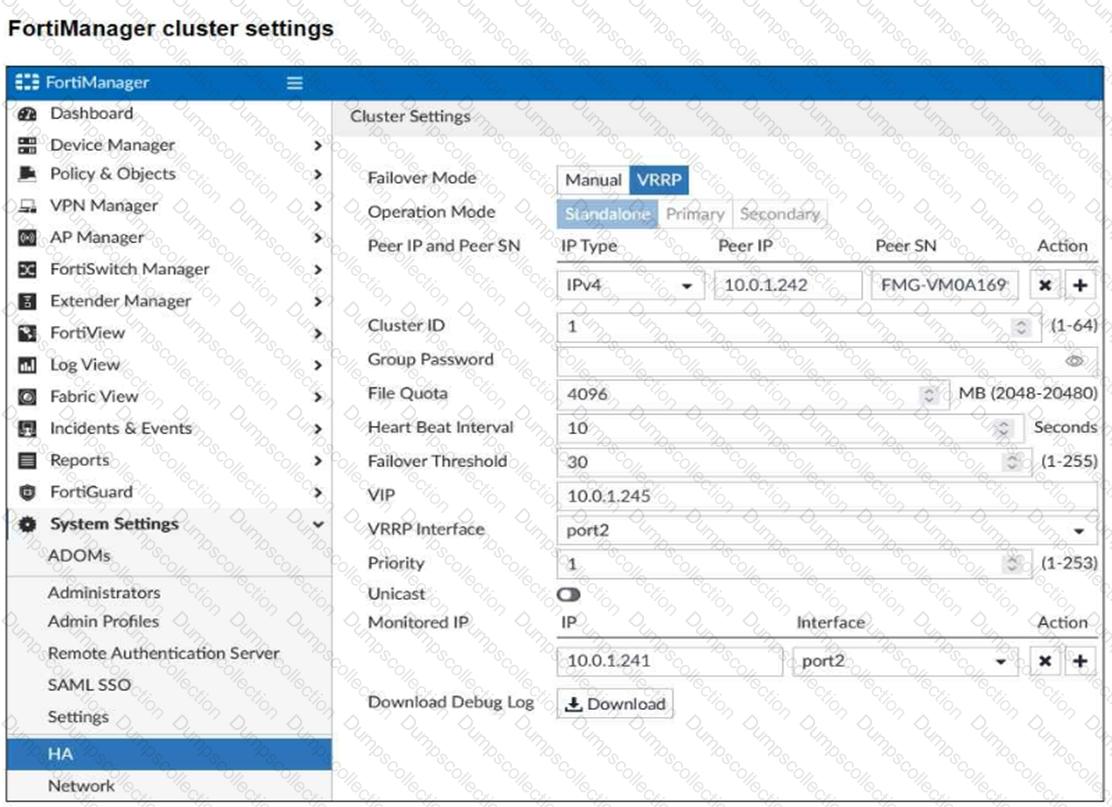

The characteristic of the FortiManager high availability (HA) feature is that the primary unit synchronizes all configuration revisions with the secondary units. This ensures that all devices in the HA cluster are up-to-date with the same configurations, providing redundancy and failover capabilities.

Options A, C, and D are incorrect because:

Arefers to a specific port number (5199), but FortiManager does not specifically use TCP port 5199 to update managed devices when a secondary unit is removed.

Cis incorrect as secondary units do not necessarily have to be in the same network as the primary unit; they just need to be able to communicate with each other.

Dis incorrect because HA upgrades can be automated and do not require manual upgrading, starting with the primary unit.

FortiManager References:

Refer to FortiManager 7.4 High Availability (HA) Guide: HA Synchronization and Configuration.

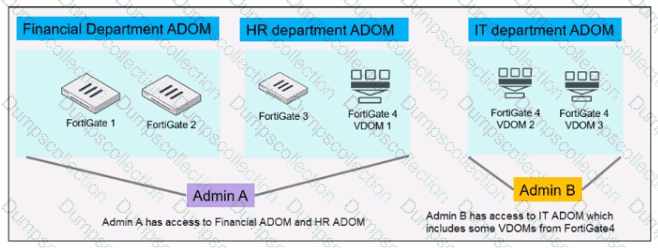

Based on the exhibit, the FortiManager administrator is setting up three ADOMs (Administrative Domains) that correspond to different departments (Financial, HR, and IT). Each ADOM has specific FortiGate devices or VDOMs (Virtual Domains) assigned to it, with different administrators managing the ADOMs.

Explanation of Options:

A. The FortiManager administrator must set the ADOM device mode to Advanced.

This istrue. In FortiManager, when there areVDOMs(Virtual Domains) involved, you must set the ADOM toAdvanced modeto manage VDOMs properly. The IT department ADOM includes different VDOMs from FortiGate 4 (VDOM 2 and VDOM 3), which means the ADOM mode must be inAdvancedto support managing VDOMs separately from other ADOMs.

B. Policies and objects databases can be shared between the Financial and HR ADOMs.

This isfalse. By default, ADOMs are separate, and policies and objects cannot be shared between them unless they are specifically designed to do so. The exhibit shows distinct ADOMs for each department, implying no direct sharing of policies and objects between Financial and HR ADOMs.

C. An administrator with the super user profile can access all the VDOMs.

This istrue. A FortiManager administrator with thesuper userprofile hasfull accessto all ADOMs and VDOMs, regardless of how access is restricted for individual administrators. In this case, an admin with the super user profile could access Financial, HR, and IT ADOMs, including all the VDOMs from FortiGate 4.

D. The administrator must configure FortiManager in workspace normal mode.

This isfalse. There is no requirement mentioned in the exhibit or scenario that mandates usingworkspace normal mode. Workspace mode is more related to how configuration changes are managed (locking, editing, etc.), but it doesn’t affect the creation or access control of ADOMs.

Conclusion:

Ais correct becauseAdvanced modeis necessary for managing VDOMs within ADOMs.

Cis correct because asuper usercan access all VDOMs and ADOMs without restrictions.

They can be configured using the CLI and the GUI.

Scheduled backups can indeed be set up through both the FortiManager command-line interface (CLI) and the graphical user interface (GUI), providing flexibility for administrators.

They support FTP, SCP, and SFTP.

FortiManager supports multiple protocols for backup transfers, including FTP, SCP, and SFTP, allowing administrators to choose the method that best suits their environment.

When push updates are failing on a FortiGate device behind a NAT device, the administrator should check:

A.That the override server IP address is set on FortiManager and the NAT device.

The override server IP should be configured to ensure that FortiManager uses the correct IP address that can traverse the NAT to reach the FortiGate device.

D.That the virtual IP address and correct ports are set on the NAT device.

The NAT device must have the correct virtual IP (VIP) configured to map the FortiGate's internal IP to an external address, along with the correct ports needed for communication.

Options B and C are incorrect because:

Bsuggests setting the external IP on the NAT device to DHCP, which is not relevant to solving the push update issue.

Cimplies configuring NAT device IP and ports on FortiManager, which is less likely needed compared to configuring the correct VIP and ports.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Device Management and NAT Configuration.
