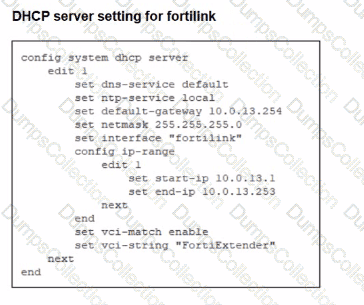

The DHCP configuration shows:

set vci-match enable

set vci-string " FortiSwitch " " FortiExtender "

What this means

VCI = Vendor Class Identifier (DHCP option 60)

When vci-match is enabled, the DHCP server will only respond to DHCP requests from clients whose VCI string matches the configured vendor identifiers.

FortiSwitch and FortiExtender both send DHCP option 60 with:

" FortiSwitch "

" FortiExtender "

This is used in FortiLink deployments so only these devices receive IP addresses on the FortiLink network.

Therefore:

C. To connect, devices must match the VCI string; otherwise, they will not receive an IP address.

✔Correct.

This perfectly matches FortiGate FortiLink DHCP behavior.

Summary of incorrect options

A — Ignore FortiSwitch/FortiExtender

❌Opposite behavior.

B — Restrict based on hostname

❌VCI does NOT check hostname.

D — Reserve IPs

❌No reservation occurs; it ' s filtering, not reserving.

In user certificates used with FortiGate / FortiAuthenticator / SSL-VPN / 802.1X, the following attributes are important:

Subject field & UPN

Provide a unique identity for the user (CN and/or UPN).

FortiGate can use theSAN/UPNfield for LDAP-integrated certificate authentication.

Expiration date

Limits how long the certificate is valid, enforcing lifecycle and rotation.

CRL URL & OCSP URL

Tell FortiGate (or any relying party)where to check if the certificate has been revoked.

Enablesnear real-time revocationusing OCSP or periodic CRL downloads instead of relying only on expiration.

By carefully configuring these fields:

The certificate uniquely and correctly identifies the user.

Relying systems can performaccurate and timely revocation checks, improving security.

Why other options are wrong:

A: It does the opposite—CRL/OCSP increase automation, not manual revocation.

B: These attributes do not inherently limit a cert to specific devices; that’s done via key usage, EKU, or device certs.

D: They don’t “ensure universal validity”; they make the certprecisely boundto one identity with enforceable lifetime and revocation.

The FortiOS documentation explicitly states that a CSR used for certificate signing must contain accurate and valid fields, especially:

Common Name (CN)

Organization (O)

Country (C)

Public key parameters

According to the FortiGate certificate section:

Incorrect CSR field information can cause the CA to reject the request.

Reasons include:

The CA validates identity and organizational information.

Missing or malformed data invalidates PKI requirements.

The CSR is not corrected automatically by the CA.

Therefore:

✔A is correct.

Options B–D contradict PKI principles:

B is false: CAs do not issue certificates with mismatched identity fields for public trust.

C is false: CSR fields are not only for internal use; they define certificate identity.

D is false: CAs do not auto-correct CSR fields.

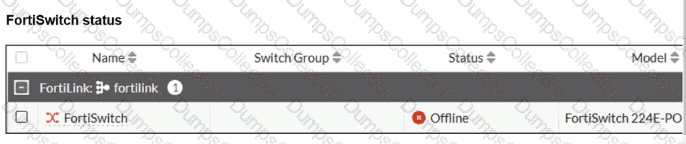

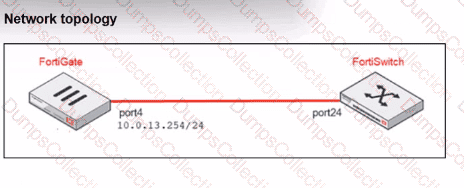

According to the Fortinet LAN Edge architecture regarding device discovery and management:

FortiLink Discovery Mechanism: Managed FortiSwitches are designed to be discovered automatically by the FortiGate switch controller. For this discovery to occur, a management IP address must be assigned to the switch so it can communicate with the FortiGate via the FortiLink protocol.

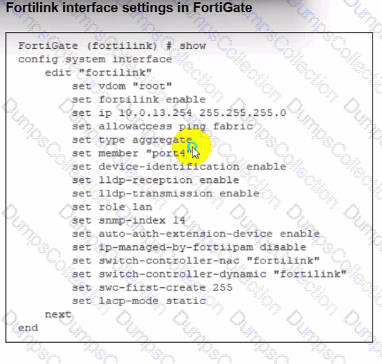

DHCP Requirement: All FortiGate devices include a factory-default FortiLink interface. Once this interface is configured with an IP address and netmask, the FortiGate automatically establishes a DHCP scope dedicated to assigning IP addresses and other network parameters to the connected managed switches.

Troubleshooting Discovery: If a FortiSwitch does not appear in the interface, it indicates a failure in the initial discovery phase. The most common cause is the switch failing to receive an IP address. Therefore, the first logical troubleshooting step is to verify that the FortiGate ' s DHCP server on the FortiLink interface is active and successfully leasing an IP address to the FortiSwitch.

Authorization: Once the switch receives an IP and is discovered, it will typically show as " Unauthorized " until the administrator manually authorizes it (unless " Automatically authorize devices " is enabled). If it doesn ' t appear at all, the issue precedes authorization and likely relates to basic IP connectivity provided by DHCP.

Analysis of Incorrect Options:

A: Security policies on the FortiGate control traffic passing through the firewall (transit traffic), not the management traffic between the FortiGate itself and its managed switches.

B: While static IPs are technically possible, the standard architectural design for LAN Edge relies on DHCP for plug-and-play functionality; manually assigning a static IP is a more advanced step, not the first troubleshooting action.

D: Internet access is not required for the FortiSwitch to be managed locally by a FortiGate via FortiLink.

In an SD-Branch deployment (FortiGate + FortiSwitch + FortiAP),FortiAIOps:

Collects telemetry and logs from Fabric devices

Usesmachine-learning / AI analyticsto:

Spot anomalies (latency, packet loss, RF issues, misconfigurations)

Highlight root causes

Proposeoptimization recommendations(e.g., channel changes, power tuning, config fixes)

It doesnot:

Automatically disable devices (Afalse)

Replace SD-WAN config or all routing (Cfalse)

Fixallissues with zero human input (Dis marketing fantasy, not reality)

From the exhibit, LDAP on FortiGate is correctly configured and tested:

diagnose test authserver ldap FAC-LDAP wifi101 password

authenticate ' wifi101 ' against ' FAC-LDAP ' succeeded!

Group membership(s) - CN=Domain Users,...

So:

LDAP connectivity works

Bind DN, DN, CNID, and credentials are correct(so optionCis eliminated).

Firewall policies do not affect the802.1X / Wi-Fi authentication stepitself, soAis not the root cause.

Nothing in the scenario indicates that AD is enforcing LDAPS-only; the LDAP test already succeeds using the configured parameters, soBis also excluded.

The Wi-Fi supplicant is configured forPEAP with inner authentication = MSCHAPv2.

MSCHAPv2 is achallenge–response mechanism designed for RADIUS, not for LDAP simple bind. FortiGate’s LDAP implementation uses asimple bind (username/password) over LDAP or LDAPS, and it doesnotimplement MSCHAPv2 against LDAP backends.

In Fortinet’s design, if you needPEAP-MSCHAPv2 with Active Directory, you must use:

ARADIUS server(such as Windows NPS or FortiAuthenticator), and

Have FortiGate use RADIUS,notLDAP, as the authentication backend for 802.1X / Wi-Fi users.

Because FortiGate cannot process MSCHAPv2 exchanges directly against an LDAP server, authentication fails when the inner method is MSCHAPv2, even though LDAP works when tested with a simple bind from the CLI.

Analysis of the VAP Configuration (Image 1): The VAP named " Corporate " has set vlan-pooling wtp-group, which maps directly to the Managed AP Group VLAN pooling method. The study guide states: " The Managed AP Group load balance method assigns VLANs from pools based on AP location. " This means VLAN assignment is NOT load-balanced (no round-robin or hash) — instead, it is determined by which WTP (Wireless Termination Point) group the AP physically belongs to:

APs in wtp-group " Floor_1 " → assigned VLAN 101 (Corp.101)

APs in wtp-group " Office " → assigned VLAN 102 (Corp.102)

Why C is CORRECT: From Image 2, the interface Corp.101 (VLAN 101 — assigned to the Floor_1 AP group) shows an IP address of 0.0.0.0/0.0.0.0, meaning no IP address or DHCP server is configured on that interface. Therefore, clients connecting to APs in the Floor_1 group will be placed on VLAN 101 but will not be able to obtain an IP address — confirming option C.

Why D is CORRECT: The VAP configuration explicitly maps wtp-group " Office " to VLAN 102. The study guide confirms that with the Managed AP Group method, VLANs are assigned based on AP group membership. APs belonging to the " Office " group will have all their clients assigned to VLAN 102 (Corp.102), which has a configured IP of 10.0.20.1/255.255.255.0 — confirming option D.

Why the other options are wrong:

A is incorrect — The wtp-group pooling method does not load balance; it assigns VLANs based on AP group location. Round-robin or hash would be needed for load balancing. Additionally, the subnet 10.0.3.0/24 does not exist anywhere in either exhibit.

B is incorrect — Corp.zone contains both Corp.101 and Corp.102. Since Corp.101 has no IP configured (0.0.0.0/0.0.0.0), clients on Floor_1 APs (VLAN 101) will not receive any IP address, let alone one from the 10.0.20.0/24 subnet. Only Corp.102 clients (Office group) receive addresses from 10.0.20.0/24.

When a device’sMAC address is quarantinedon a FortiSwitch (via FortiLink NAC, fabric automation, or manual quarantine), FortiSwitch enforces quarantine using thequarantine VLAN, also called theaccess VLANinside FortiSwitch NAC operations.

FortiSwitch behavior is defined in LAN Edge documentation:

Quarantined devices are moved into an " access VLAN " reserved for isolation.

This VLAN isstatically defined on the FortiGate NAC policy, and switch ports dynamically reassign the quarantined MAC into that VLAN.

All egress traffic from the quarantined MAC is forced into this VLAN, preventing access to the production network.

Thus, the correct description is:

✔Traffic is sent to an access VLAN.

Options B, C, and D are incorrect because:

Quarantine doesnotreassign to native VLAN.

It doesnotsend untagged traffic arbitrarily.

It doesnotforward traffic to allowed VLANs

When a FortiGate is deployed usingZero Touch Provisioning (ZTP)or auto-discovery:

FortiGate retrieves theFortiManager IP address(from DHCP Option 240, FortiCloud/ZTNA provisioning, or manual set).

The next step isnot UI authorizationor DHCP changes—it immediately attempts to form aFGFM (FortiGate–FortiManager) tunnel.

The FGFM protocol usesTCP port 541to establish a secure management channel.

FortiManager will still require manual authorization of the deviceinside FortiManager, but this occursafterthe tunnel is established.

Therefore, the first automatic action after retrieving the FMG address iscreating the secure FGFM tunnel on TCP/541.

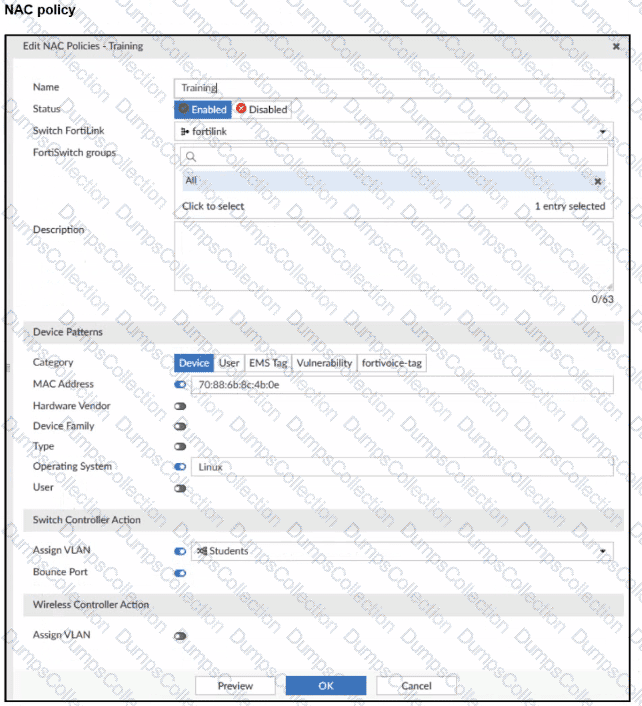

FortiLink NACis the NAC (Network Access Control) engine built into FortiGate when it manages FortiSwitch devices.

It performs:

✔Automated device onboarding

Automatically detects new devices connecting to switches.

Uses MAC, vendor, DHCP fingerprinting, or IoT database to classify devices.

No manual VLAN assignment required.

✔Security posture verification

Works with FortiClient EMS, ZTNA tags, IoT detection.

Applies policies based on:

Device type

User role

Endpoint compliance

IoT vulnerability status

✔Dynamic VLAN assignment

Automatically moves devices into proper VLANs, quarantine networks, or guest zones.

✔Integration with LAN Edge & Zero Trust

Uses FortiGate + FortiSwitch + FortiAP to enforce zero-trust access.

This matches the LAN Edge 7.6 Architect explanation of FortiLink NAC.

❌Why other answers are wrong

A. Extend security policies across FortiGate firewalls

Not NAC. That refers to Security Fabric or SD-WAN.

C. Apply manual firewall rules

FortiLink NAC is specifically designed toautomateaccess control.

D. Manually place devices in VLANs

NAC eliminates manual VLAN assignment — it is dynamic.
