According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, MAC-based, IP-based, and protocol-based VLAN assignments are methods ofdynamic VLAN assignment. These features allow the switch to categorize incoming traffic and assign it to a specific VLAN based on the packet ' s attributes rather than just the physical port it is connected to.3

The primary benefit of these methods is that theyoffer dynamic segmentation benefits similar to 802.1X authentication (Option D). In a modern network, devices with different security requirements (such as IoT devices, printers, and workstations) often connect to the same physical switch ports. 802.1X is the " gold standard " for dynamic segmentation but requires a supplicant on the client device.4For devices that do not support 802.1X, MAC or protocol-based assignments provide a similar result: they ensure the device is automatically placed into its designated secure segment (VLAN) the moment it is identified by the switch.

MAC-based:Assigns a VLAN based on the source MAC address.

IP-based:Assigns a VLAN based on the source IP address or subnet.

Protocol-based:Assigns a VLAN based on the Ethernet type (e.g., IPv4, IPv6, or AppleTalk).

Option A is incorrect because these features complement rather than " disable " 802.1X. Option B is incorrect because these specific assignment types can be configured locally on the switch without a RADIUS server. Option C is the opposite of how these features work, as they explicitly look at the device type or traffic to make an assignment.

Switch-controller-dhcp-snooping-verify-mac verifies the destination MAC address to protect against DHCP exhaustion attacks (B): This feature of DHCP snooping helps prevent DHCP exhaustion attacks by ensuring that the destination MAC addresses in DHCP packets match the MAC addresses learned by the switch. This check helps prevent attackers from overwhelming the DHCP server with requests from spoofed MAC addresses.

Settings related to DHCP option 82 are only configurable through the CLI (D): DHCP Option 82 is used for " agent information, " and it ' s typically used in network environments where additional information between DHCP clients and servers is necessary for policy and billing purposes. Configuration of these settings in FortiSwitch is only available through the Command Line Interface (CLI), not the Graphical User Interface (GUI).

Enable IGMP snooping proxy (C): To reduce the number of unwanted IGMP reports processed by the IGMP querier, enabling IGMP snooping proxy is effective. This feature acts as an intermediary between multicast routers and hosts, optimizing the management of IGMP messages by handling report messages locally and reducing unnecessary IGMP traffic across the network. This minimizes the processing load on the IGMP querier and improves overall network efficiency.

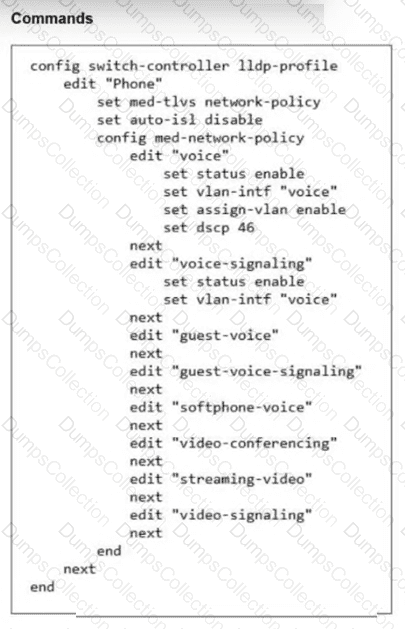

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) is an enhancement to standard LLDP that provides advanced discovery and configuration for endpoints li1ke IP phones. While the current configuration in the exhibit correctly handlesNetwork Policy TLVsto advertise QoS2and VLAN settings to the phones, it is missing the specific component required for data collection.34

To coll5ect detail6ed information such as themanufacturer, software version, hardware version, and serial or asset numbers, you mustEnable LLDP-MED inventory management TLVs (Option C). The documentation specifies that when the inventory-management TLV is active, the switch can retrieve these extensive device characteristics from the connected Media Endpoints. This information is then visible to the administrator through the FortiGate or FortiSwitch monitoring tools, providing a complete hardware inventory of the voice network.

Regarding the other options:Option Ais unnecessary because a single LLDP profile can support multiple TLV types simultaneously by adding them to the med-tlvs string.Option Bis already partially implemented in the exhibit ' s network policy but does not contribute to device detection or data collection.Option Dis used for automatic trunking between FortiSwitches and is unrelated to endpoint device information. Therefore, the addition of the inventory-management TLV is the specific requirement to fulfill the goal of collecting detailed IP phone data.

The issue described pertains to the establishment of a tunnel (likely a CAPWAP tunnel for management purposes between FortiGate and FortiSwitch).Based on typical error analysis in tunnel setup scenarios:

The CAPWAP tunnel failed to come up due to a mismatch in time (Option C): This answer is plausible because time synchronization is crucial for security protocols that underpin tunnel establishments, such as DTLS (Datagram Transport Layer Security) used within CAPWAP tunnels. If the clocks on FortiGate and FortiSwitch are significantly out of sync, the security handshake (which can include timestamp validation) could fail, preventing the tunnel from coming up.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the auto-network setting (configured via config switch auto-network) is a global feature introduced to simplify the initial deployment of switches. Starting inFortiSwitchOS 7.6.0and continuing through7.6, this feature isenabled by defaulton all new and factory-reset units.1

The primary function of theauto-networksetting is to facilitate theautomatic discovery of the FortiGate and the establishment of the FortiLink interface (Option B). When enabled, the switch automatically scans its physical ports to detect a management entity, such as a FortiGate controller. This " zero-touch " discovery mechanism allows the switch to identify the correct uplink ports and automatically configure them as members of theFortiLinkfabric without manual CLI or GUI intervention.

Furthermore, the documentation notes that auto-network also managesauto-topology, which allows two switches to automatically form anInter-Switch Link (ISL)trunk between them.2This includes setting the management VLAN (typically VLAN 4094) and ensuring that DHCP snooping is trusted on these discovered links.3If an administrator intends to use the switch in a strictly standalone mode without any auto-discovery or FortiLink features, the documentation specifies that they must manually disable the auto-network status and the auto-fortilink-discovery global settings to prevent the switch from attempting to join a managed fabric.4

Regarding other options:Option Arefers to Dynamic Port Policy or NAC features.Option Cis a standard STP configuration unrelated to the auto-network discovery suite.Option Dis a broader management capability that depends on successful network discovery but is not the specific control point for the auto-network setting.

Regarding the scenario where a FortiSwitch did not reboot after the authorization process while the other devices did, the most likely cause, given the configuration settings in the exhibit, is:

The management mode was set to use FortiLink mode (Option B): If the FortiSwitch was already configured to use FortiLink for its management mode, it may not require a reboot to complete the authorization process as its management interface settings are already aligned with FortiLink requirements. This is unlike switches that might be transitioning from a standalone or another management mode, which would typically require a reboot to apply new management settings fully.

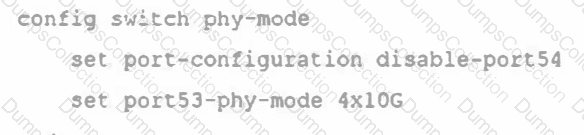

Regarding the configuration of a FortiSwitch to split a port into multiple smaller interfaces:

The CLI commands are enabling a split port into four 10Gbps interfaces (Option B): The command shown in the exhibit is typically used to configure a high-speed port (like a 40Gbps or 100Gbps interface) to be divided into smaller, independent 10Gbps interfaces. This feature allows more flexible use of the switch ' s physical resources.

The port full speed prior to the split was 100G SFP+ (Option C): Given the context of splitting the port into multiple 10Gbps interfaces, the original port configuration likely supported a high-speed transceiver such as 100G SFP+. This would make it technically feasible to divide the interface into multiple 10Gbps channels, enhancing connectivity options without requiring additional physical interfaces.

These configurations and capabilities are typical in modern network setups, especially in environments requiring high density and flexibility in connectivity, allowing network administrators to optimize physical infrastructure efficiently.

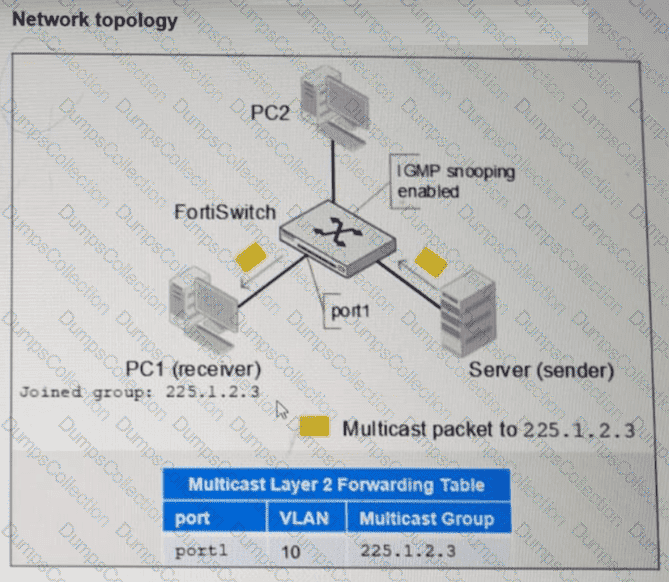

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Internet Group Management Protocol (IGMP) snooping is a Layer 2 mechanism that allows a switch to " listen " to IGMP conversations between hosts and routers to maintain a map of which ports require specific multicast streams. When IGMP snooping is enabled, the switch populates aMulticast Layer 2 Forwarding Table(as shown in the exhibit), which ensures that multicast traffic is only forwarded to ports where a receiver has explicitly requested it (e.g., PC1 on port1).

When IGMP snooping isdisabled, the switch no longer maintains this granular forwarding table. By default, a Layer 2 switch that is not performing IGMP snooping treats multicast traffic as if it werebroadcast traffic. Consequently, instead of being intelligently forwarded only to the interested receiver (PC1), the multicast traffic for group 225.1.2.3 will beflooded to all portswithin the same VLAN (VLAN 10). This means PC2, even if it has not joined the group, will receive the multicast packets at the physical layer, leading to unnecessary bandwidth consumption and increased CPU load on unintended recipients.

The documentation explicitly states that disabling IGMP snooping reverts the switch to a " flood-all " behavior for multicast frames within the broadcast domain. Option A is incorrect because the host (PC1) remains a member of the group; only the switch ' s forwarding logic changes. Option B is incorrect as the switch may still see the messages but will not act on them to prune ports. Option D is incorrect as disabling the feature removes the prune/stop mechanism, causing traffic to flow everywhere rather than stopping.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, DHCP snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It validates DHCP messages from untrusted sources and filters out invalid messages.

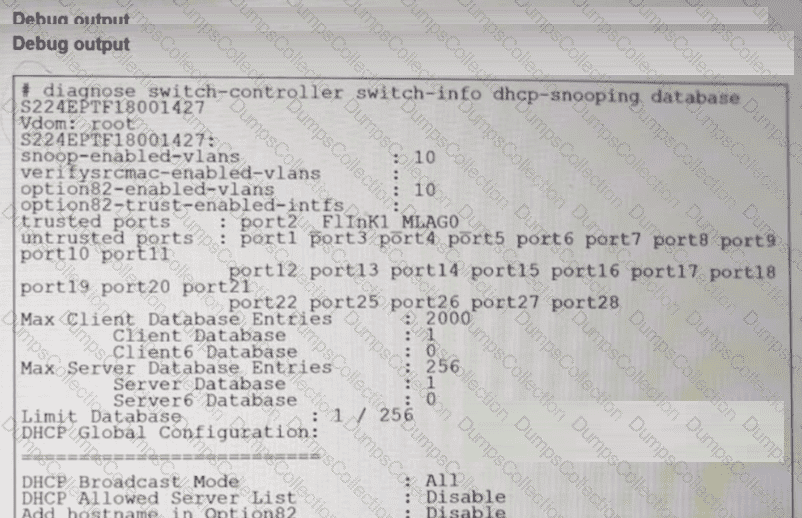

The provided debug output reveals specific configuration details that support the correct answers:

Option 82 Support (Option C):The output line option82-enabled-vlans : 10 explicitly indicates that DHCP Option 82 is active for that specific VLAN. When Option 82 is enabled on a VLAN, the FortiSwitch (acting as a relay agent or snooping device) inserts information about the physical port and VLAN into the DHCP request packet before it is forwarded to the server. This allows the server to apply location-based IP address allocation policies.

Broadcast Traffic Handling (Option D):In the " DHCP Global Configuration " section, theDHCP Broadcast Modeis set toAll. In FortiSwitchOS 7.6, the default behavior for DHCP snooping is to forward DHCP broadcast traffic to all ports in the VLAN unless explicitly restricted. Setting the mode to " All " means the switch does not limit the propagation of DHCP broadcast packets solely to trusted interfaces; instead, they are flooded to both trusted and untrusted ports within the broadcast domain. To restrict broadcasts, the mode would need to be changed to " Trusted-Only " .

Regarding the incorrect options:Option Ais false because the output shows snoop-enabled-vlans : 10, confirming it is active.Option Bis incorrect because the trusted ports list includes port2, FlInK1, and MLAG0, meaning multiple interfaces are trusted, not just port2.
