The rule is triggering on successful RDP connection events because the Next operator between the two subpatterns is set to OR . The FortiSIEM Study Guide explains that multiple subpattern rules are used when patterns must occur within a specific time period or when one of several patterns proves that an incident condition exists. It lists the OR operator as: “Subpattern X OR Subpattern Y occurred within the Time Window.” The same Study Guide further explains that if multiple patterns are used, FortiSIEM requires a next operator, and in the OR example, “an event that matches either” subpattern will trigger. It also states that because the next operator is OR, the constraint between the two subpatterns is not enforced.

In the exhibit, Subpattern 1 matches RDP traffic on TCP/UDP port 3389 from FortiGate traffic-forward events, while Subpattern 2 matches logon failure events with COUNT(Matched Events) > = 3. Because the rule uses OR, FortiSIEM can trigger when only the RDP connection subpattern matches, even if the failed-logon subpattern does not match. The correct logic should require both subpatterns to match with the intended relationship constraints, not either subpattern independently.

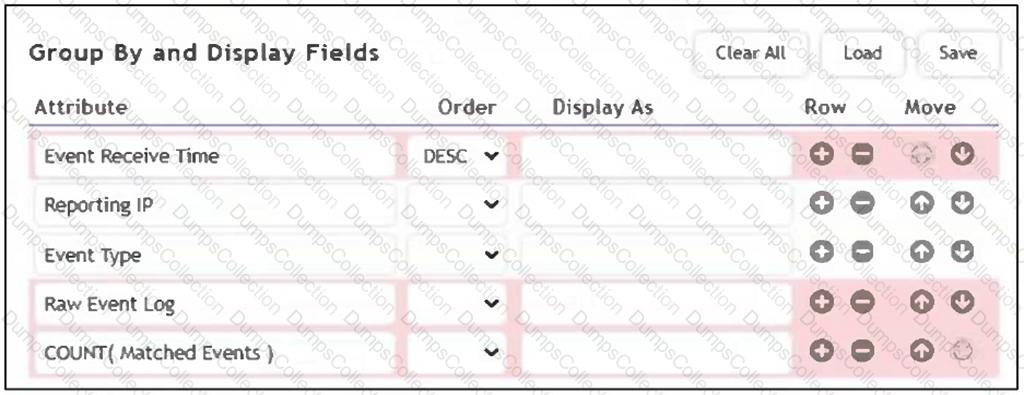

The fields are highlighted in red because unique values such as Event Receive Time and Raw Event Log cannot be used in group-by operations. Grouping requires aggregatable or consistent values across events, while these fields are unique to each event, making them incompatible for grouping.

The correct answer is A because the highlighted fields are not valid for that grouped/aggregated display configuration. The FortiSIEM 7.4 User Guide notes that some event attributes, functions, and queries are not supported in specific analytics result-filter and display contexts. It lists date fields, including examples such as Event Receive Time , and also lists Raw Event Log and Binary Raw Event Log among unsupported fields for that context. The reason is practical: grouping requires stable values that can combine multiple events into meaningful grouped rows. Attributes such as Event Receive Time and Raw Event Log are highly specific to individual events. If every event has its own receive timestamp or unique raw log content, grouping by those fields defeats aggregation and can create one row per event rather than meaningful grouped output. COUNT(Matched Events) itself is a valid aggregate expression when used correctly. Event Receive Time is available in logs, but it is not appropriate as a grouped field in the configuration shown. Therefore, the red highlighting indicates invalid grouped fields caused by unique/non-groupable values.

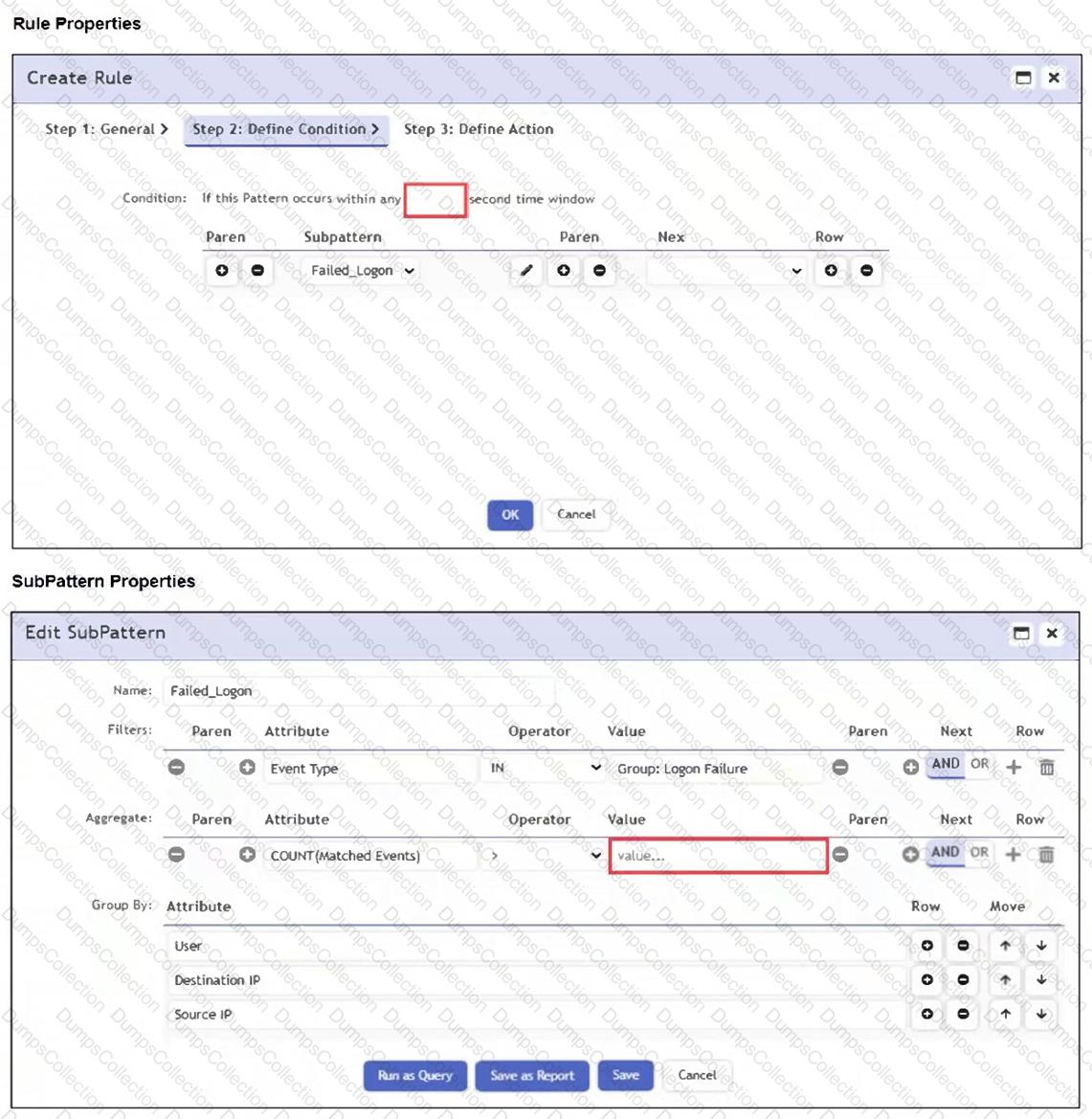

The time period must be defined under the Define Condition tab of the rule. The FortiSIEM Study Guide states that a rule has three components: General , Condition , and Action . The General section defines the overall purpose and scope of the rule, the Condition section specifies which conditions trigger the rule, and the Action section configures what happens after the rule is triggered. The Study Guide further explains that on the Define Condition page, FortiSIEM specifies “the conditions—event attributes and thresholds—that will trigger the rule and create an incident,” including “the time window” within which the subpatterns must match for the rule condition to be satisfied. It also states that when there is more than one subpattern, you must define the logic between subpatterns and their relationships or constraints.

For a 24-hour multiple-subpattern rule, the guide gives an example using an 86400-second time window, which equals 24 hours, and shows it under Resource > Rules > Define Condition. Therefore, the time period is not configured inside each individual subpattern, not under General, and not under Define Action.

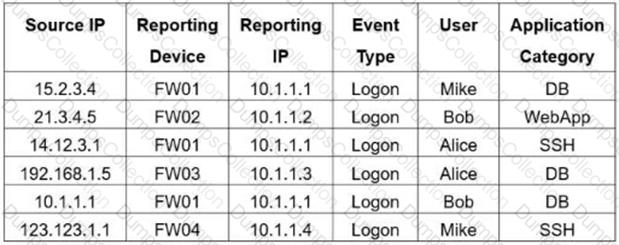

FortiSIEM grouping works by combining events that have the same values for all selected Group By attributes. The Study Guide’s rule and subpattern example states that when multiple events have the same Group By values, “they are grouped together in one row, and the count column tracks the number of events for each of those rows.” In the exhibit, the selected grouping fields are Reporting Device, Reporting IP, and Application Category. The table contains six raw rows, but two rows share the same grouped combination: FW01 / 10.1.1.1 / DB . Those two rows are collapsed into one grouped result. The other combinations are unique: FW02 / 10.1.1.2 / WebApp, FW01 / 10.1.1.1 / SSH, FW03 / 10.1.1.3 / DB, and FW04 / 10.1.1.4 / SSH. That creates five grouped rows in total. FortiSIEM does not display six because grouping removes duplicate combinations, and it does not display four because only one duplicate combination exists.

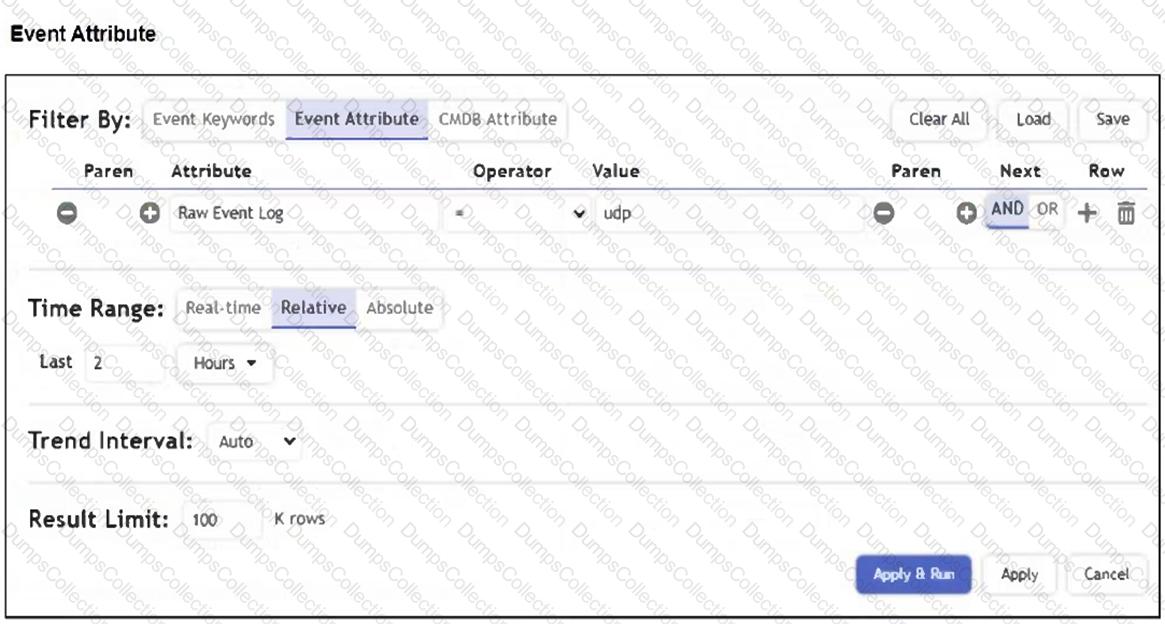

The operator is set to " = " , which performs an exact match on the entire raw event log, not a substring search. To find logs that contain the keyword " udp " , the analyst should use the CONTAIN operator instead. This will return all logs where " udp " appears anywhere in the raw log message.

The correct answer is D because the analyst is trying to search for raw logs that contain the keyword udp, but the filter uses the equality operator. The FortiSIEM Study Guide explains keyword searches in terms of Raw Event Log CONTAIN logic. In the keyword phrase search section, the guide states that without quotes, FortiSIEM searches raw event logs by using conditions such as Raw Event Log CONTAIN TCP OR Raw Event Log CONTAIN connection . Another analytics example explains that searching for TCP or UDP events uses the raw event log containing the keyword tcp or udp and that the search returns case-insensitive results for TCP and UDP. This directly eliminates option C. The time range is already set to the last two hours, which is correct for historical raw log searching. The problem is the operator. To find a keyword anywhere inside a raw log message, the analyst should use CONTAIN , not =.

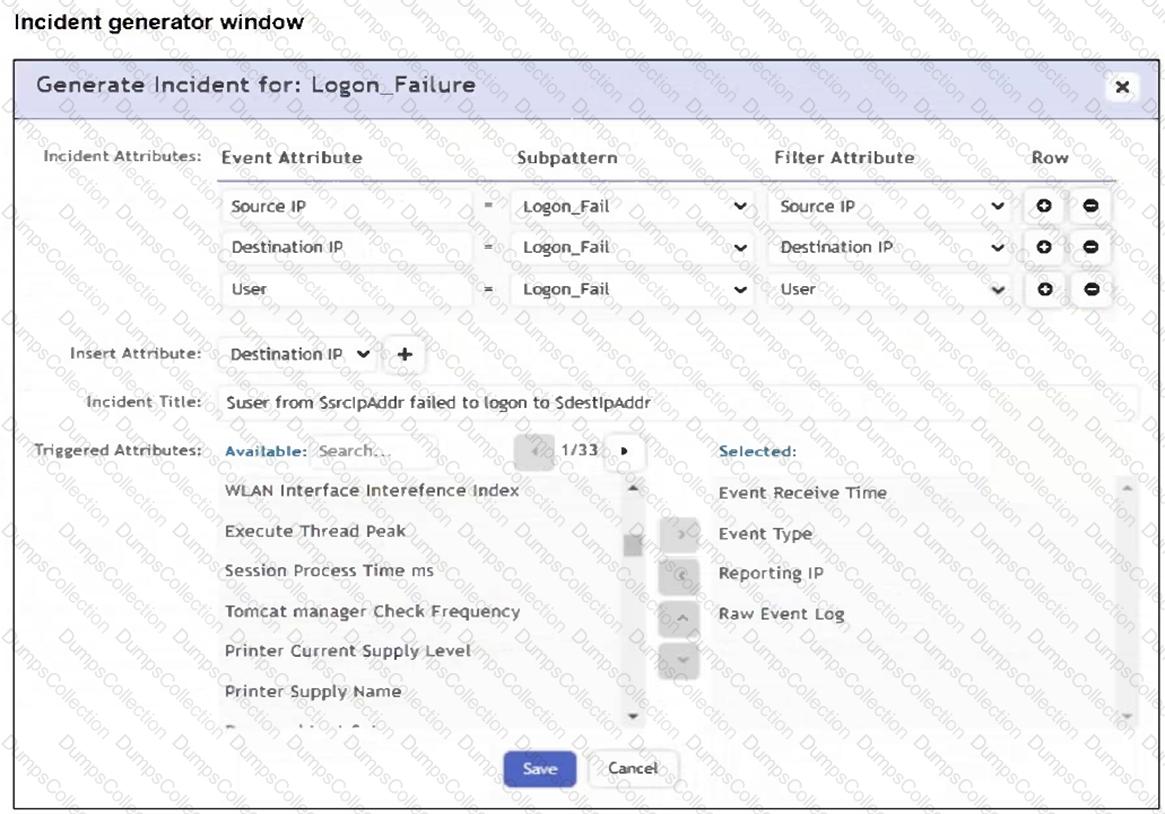

The attribute must be selected as a Triggered Attribute so that it becomes available for incident generation and incident-title substitution. In the FortiSIEM Study Guide’s rule action configuration section, FortiSIEM separates incident attributes from triggered attributes. Triggered attributes are taken from the events that cause the rule to trigger and are then available for incident display and incident context. The guide explains that the rule action step is where an analyst defines the incident generated by a rule and chooses which attributes are carried forward. If Destination Host Name is not selected in the Triggered Attributes list, FortiSIEM cannot use it as an incident attribute in the generated incident title. Option B is wrong because aggregate items are used for calculations such as COUNT, AVG, or SUM, not for making a text attribute available in the incident title. Option C is wrong because Destination Host Name is an event attribute, not an event type. Option D is unrelated; removing Destination IP would not make Destination Host Name selectable.

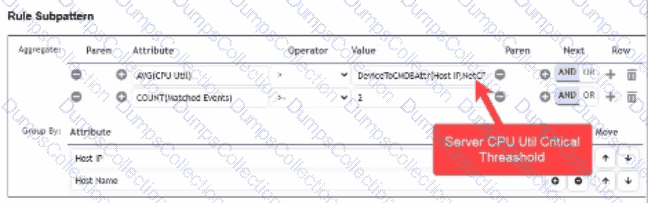

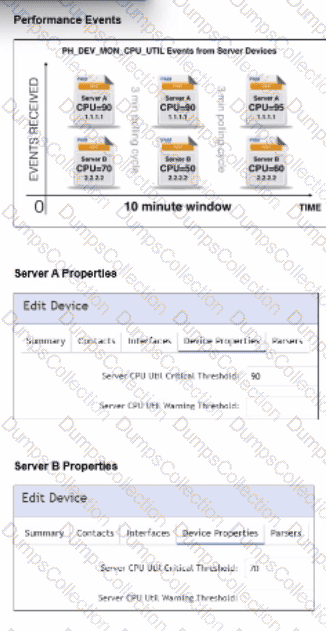

The correct answer is D because Server A satisfies the rule’s threshold and count requirements, while Server B does not. The Study Guide explains that a FortiSIEM subpattern consists of Filter , Aggregate , and Group By components. It also states that the Aggregate function defines how many or what metric values must match during the time window, while Group By controls how the matching events are grouped into rows. The performance metrics lesson explains that FortiSIEM collects performance and availability data, converts polling results into logs, and uses those metrics for performance, availability, resource utilization, and baselining. In the exhibit, the aggregate evaluates CPU utilization against the device’s CPU critical threshold and also requires a matched-event count of at least two within the 10-minute window. Server A has CPU values above its critical threshold enough times in the window, so it generates one incident. Server B has a lower configured threshold but its collected CPU values do not satisfy the required aggregate condition for the grouped server. Therefore, only Server A generates an incident.

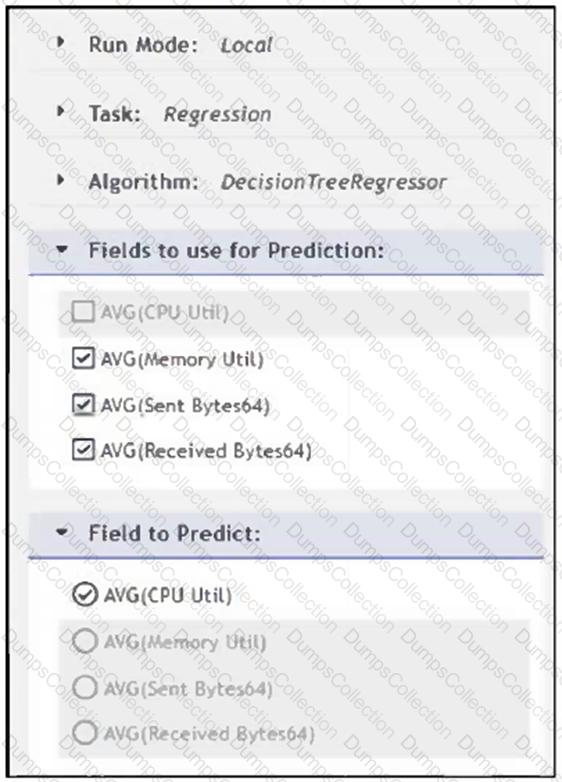

The correct answer is A. Design. In the FortiSIEM 7.4 User Guide’s anomaly detection workflow, the first configuration step is Step 1: Design. In that step, FortiSIEM requires the analyst to identify the fields that will be analyzed by the machine learning job. The guide states that under Design, the analyst must identify Fields to Analyze, and explains that these fields are considered for anomaly detection and must currently be numerical fields. The guide also identifies the time field requirement for statistical deviation algorithms and notes that a FortiSIEM report is used to provide the dataset. The Prepare Data step comes later and is used to load or prepare the data source for training. The Train step runs the algorithm against the prepared dataset. The Schedule step is used after training to run inference. Therefore, the selection of fields to analyze belongs to the Design phase, not Prepare Data, Train, or Schedule. This sequence matters because FortiSIEM must know which numerical fields are relevant before it can prepare, train, or run inference on the machine learning job.

The correct answer is A because CMDB objects are referenced from the Value field after selecting the appropriate event attribute and operator. The FortiSIEM Study Guide gives a structured search example that references the CMDB. In that example, the attribute is Reporting IP, the operator is IN, and the value is selected from CMDB groups such as Devices: Windows and Networks: Inside Net. The guide explains that to show events reported by Windows servers within a specific network, you set the attribute and operator first, then browse the CMDB and select the relevant CMDB group value. This confirms the workflow: the CMDB reference is chosen as the value of the condition, not as the attribute itself. Option B is incorrect because the CMDB tab is not used to launch the analytics search this way. Option C is not a valid workflow. Option D is wrong because the attribute is selected from event or CMDB attribute lists, while the CMDB object or group is selected in the value field.

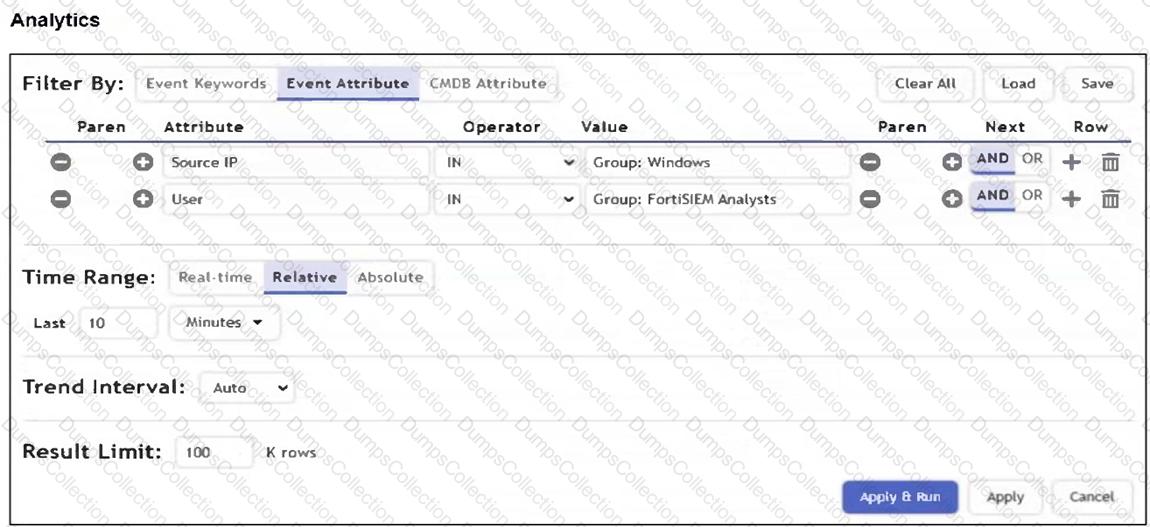

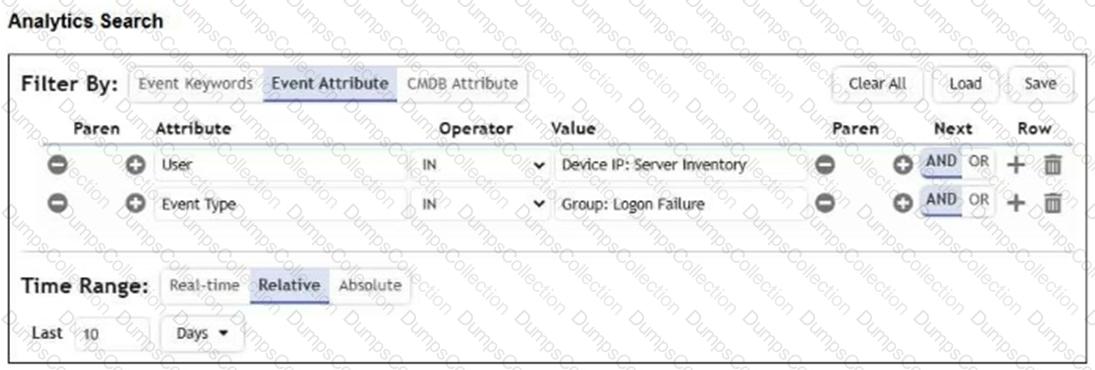

The correct answer is C. CMDB user group . In FortiSIEM, users and user groups are maintained as CMDB objects and can be referenced in analytics filters and rule logic. The FortiSIEM 7.4 User Guide table of contents explicitly includes CMDB management for users, viewing user information, adding users, editing or deleting users, performing operations on users, and working with user groups. This confirms that user groups are part of the FortiSIEM CMDB data model. The query shown in the exhibit uses the Analytics filter with the User attribute and the value Group: FortiSIEM Analysts . That syntax indicates that FortiSIEM is referencing a FortiSIEM-defined user group from CMDB, not an LDAP group directly and not an Active Directory group directly. LDAP and Active Directory can be used to discover or authenticate users, but once referenced as a FortiSIEM analytics group value, the object is a CMDB user group. FortiSIEM organization groups are tenant/organization constructs and are not the same as CMDB user groups.
