Switch-controller-dhcp-snooping-verify-mac verifies the destination MAC address to protect against DHCP exhaustion attacks (B): This feature of DHCP snooping helps prevent DHCP exhaustion attacks by ensuring that the destination MAC addresses in DHCP packets match the MAC addresses learnedby the switch. This check helps prevent attackers from overwhelming the DHCP server with requests from spoofed MAC addresses.

Settings related to DHCP option 82 are only configurable through the CLI (D): DHCP Option 82 is used for "agent information," and it's typically used in network environments where additional information between DHCP clients and servers is necessary for policy and billing purposes. Configuration of these settings in FortiSwitch is only available through the Command Line Interface (CLI), not the Graphical User Interface (GUI).

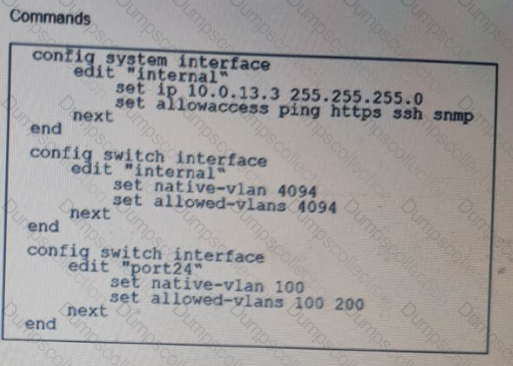

To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN onthe 'internal' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

References:

FortiGate Infrastructure and Security 7.2 Study Guides

Best practices for VLAN configurations in Fortinet’s technical documentation

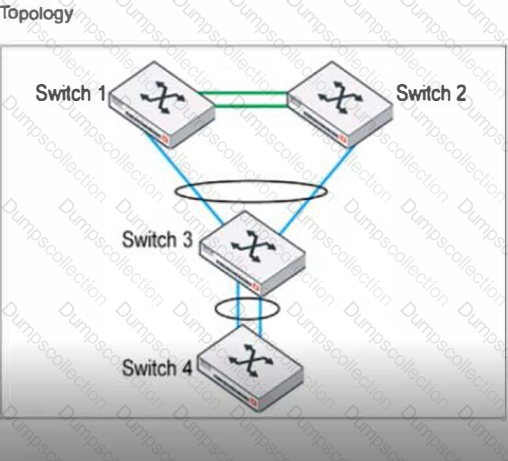

In the context of the topology provided and the concepts of LAG (Link Aggregation Group) and MCLAG (Multi-Chassis Link Aggregation), the spanning tree protocol's perspective can be summarized as follows:

Switch 1, Switch 2, and Switch 3 are seen as one MCLAG peer group (Option A): In this configuration, Switches 1 and 2 form a Multi-Chassis Link Aggregation Group (MCLAG) which effectively allows them to act as a single logical entity from the perspective of downstream switches (in this case, Switch 3). Thisgrouping enhances fault tolerance and bandwidth by pooling the link resources of the two switches.

Switch 3 and Switch 4 uplinks are treated as single interfaces (Option B): This option suggests that the connections between Switch 3 and Switch 4 (presumably using LAG) are perceived by the spanning tree protocol as a single logical connection. This perception is due to the LAG configuration, which combines multiple network cables/ports into a single logical link to provide redundancy and increase bandwidth.

References:

The use of LAG and MCLAG is well-documented in networking literature and Fortinet's own documentation, as these technologies are commonly employed to enhance redundancy and bandwidth. Fortinet's implementation of these protocols is designed to maintain compatibility with standard networking protocols, including Spanning Tree Protocol (STP).

All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.

All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in 802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.

QSFP+ transceiver (A): The QSFP+ (Quad Small Form-factor Pluggable Plus) transceiver is designed to handle 40G data rates and can be used to split a 40G port into multiple 10G connections. This type of transceiver supports such configurations, making it suitable for high-density applications where multiple 10G connections are derived from a single 40G port, thereby maximizing the utilization of the port and the fiber infrastructure.

When transitioning the management of a FortiSwitch from standalone mode to being managed by FortiGate via FortiLink, it is critical to ensure that the existing configurations are preserved. The best practice involves:

FortiGate's Role in Configuration Preservation:FortiGate has the capability to automatically preserve the existing configuration of a FortiSwitch when it is integrated into the network via FortiLink. This feature helps ensure that the transition does not disrupt the network's operational settings.

Configuration Integration:As FortiSwitch is integrated into FortiGate's management via FortiLink, FortiGate captures and integrates the existing switch configuration, enabling a seamless transition. This process involves FortiGate recognizing the FortiSwitch and its current setup, then incorporating these settings into the centralized management interface without the need for manual reconfiguration or the use of additional tools.

References:For further details on managing FortiSwitch with FortiGate and the capabilities of FortiLink, consult the FortiSwitch and FortiGate integration guide available on:Fortinet Product Documentation

A FortiLink interface must be enabled on FortiGate (A): To manage a FortiSwitch stack, a dedicated FortiLink interface on the FortiGate is required. This interface is used to manage the communication between FortiGate and the FortiSwitch stack, enabling centralized control and configuration of the switches directly from the FortiGate.

The switch controller feature must be enabled on FortiGate (B): Enabling the switch controller feature on FortiGate allows it to manage connected FortiSwitch units. This feature provides tools and interfaces on the FortiGate for overseeing FortiSwitch configurations, monitoring switch status, and managing network policies across the stack.

Fortinet FortiLink Protocol:The FortiLink protocol is Fortinet's proprietary mechanism for managing FortiSwitch units from a FortiGate firewall. It simplifies configuration and security policy enforcement across the connected network devices.

Auto-Discovery:FortiLink's auto-discovery feature means that by default, all ports on a FortiSwitch will actively send out discovery frames. This allows them to locate a FortiGate device that has a FortiLink interface enabled, streamlining the device management process.

No Configuration Needed:You don't have to manually configure individual ports for FortiLink discovery on FortiSwitch devices.

References

FortiSwitchOS FortiLink Guide (FortiSwitch Devices Managed by FortiOS 7.2):Refer to pages 13 and 14 for details on zero-touch management and FortiLink configuration. [https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/27f63c72-b083-11ec-9fd1-fa163e15d75b/FortiSwitchOS-7.2.0-FortiLink_Guide%E2%80%94FortiSwitch_Devices_Managed_by_FortiOS_7.2.pdf ]

"MSTP is based on RSTP", so the same port role election and the same root bridge selection. Reference: FortiSwitch 7.2 Study Guide, page 187
