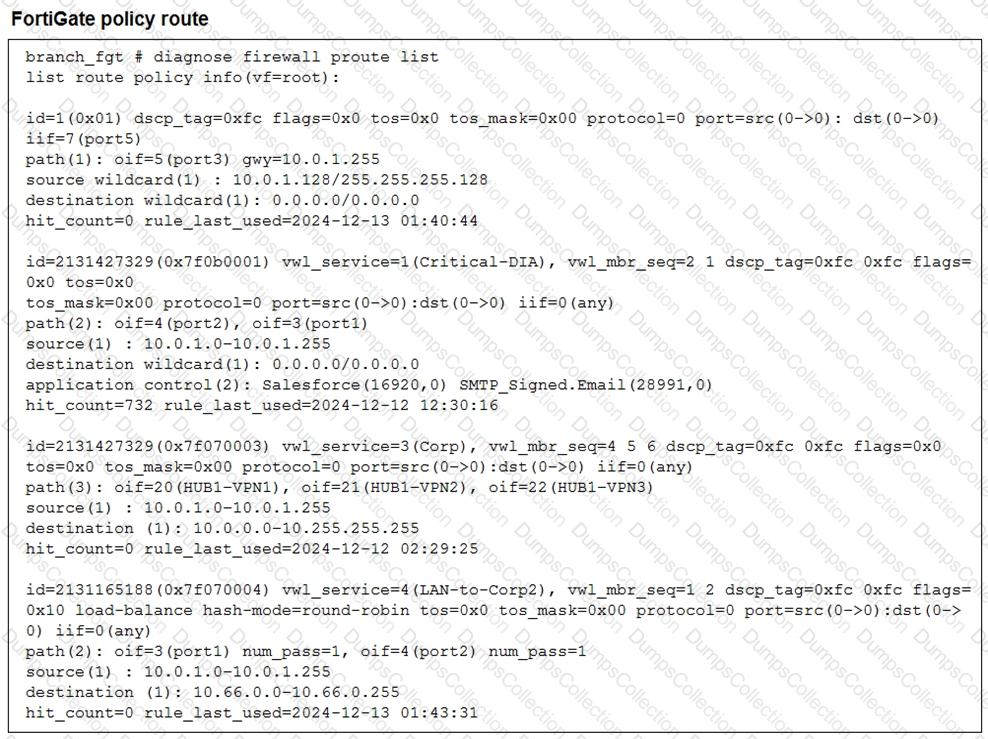

The policy-route output shows the matching SD-WAN service for destination 10.66.0.0/24 is vwl_service=4 (LAN-to-Corp2) with vwl_mbr_seq=1 2 and paths oif=3(port1) and oif=4(port2). Therefore, traffic from 10.0.1.133 to 10.66.0.125 is steered via SD-WAN member ID 1 or 2.

When you enable ADVPN (auto-discovery VPN) in the overlay template, FortiManager automatically updates both the IPsec and BGP templates on the hub so that shortcut tunnels can be established dynamically.

ADVPN can be activated in the SD-WAN overlay template for any supported topology, including dual-hub primary–primary, not just single hub.

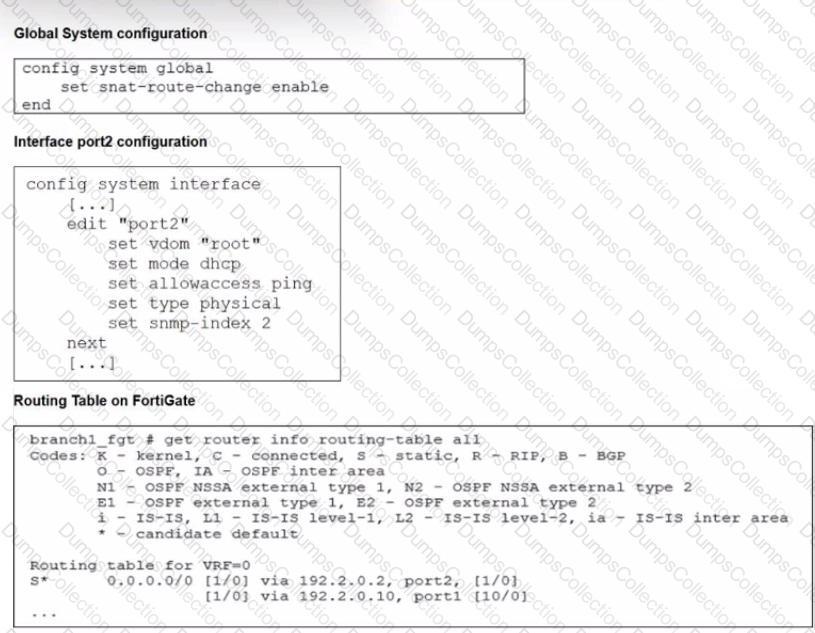

When the member priority of a port is increased (e.g., port2 to 20), FortiGate evaluates existing sessions and applies “dirty” flags where applicable. The SD-WAN session management mechanism is described in detail: “Upon a change in SD-WAN member priority, all existing sessions using that member are marked as dirty. For SNAT sessions, the gateway information is updated to ensure future packets are routed through the newly preferred member, in this case, port1. This automatic re-evaluation allows SD-WAN to dynamically respond to topology or priority changes, maintaining optimal routing.” This is fundamental to seamless failover and session persistence in Fortinet SD-WAN, ensuring active flows are redirected based on updated priorities or health status.

When SD-WAN load balancing is required with link quality awareness, FortiOS relies on SLA-based strategies. These strategies evaluate link performance using performance SLAs (latency, jitter, packet loss, MOS) and then make forwarding decisions accordingly.

Option A is correct.

In FortiOS 7.6, when an SLA-based SD-WAN rule has load balancing enabled, FortiGate distributes traffic only across the members that meet the SLA targets. Any member that is out of SLA is excluded from load balancing. This behavior ensures that traffic is not forwarded over degraded links while still allowing load distribution across healthy paths.

Option C is correct.

The lowest cost (SLA) strategy is an SLA-based strategy that considers link quality while also allowing SD-WAN load balancing. When multiple members meet the SLA requirements and have equal cost, FortiGate can load balance traffic across them using the configured hash mode. This makes the lowest cost SLA strategy suitable when both link quality and load balancing are required.

Why the other options are incorrect:

Option B is incorrect because the best quality strategy is designed to select the single best-performing link based on SLA metrics. It does not support SD-WAN load balancing across multiple links.

Option D is incorrect because the best quality strategy does not support load balancing at all, so the statement about round-robin hash mode is invalid.

Therefore, the two correct facts to consider are A and C.

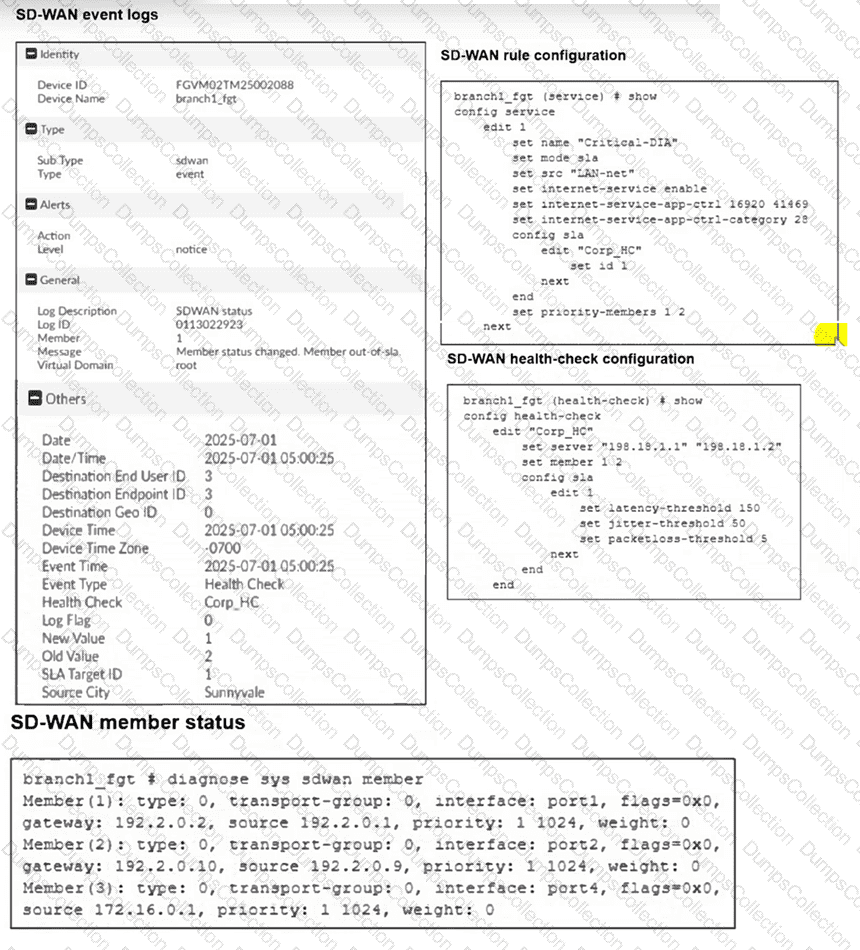

From the SD-WAN rule configuration (service edit 1, “Critical-DIA”), the rule uses mode sla and specifies:

set priority-members 1 2

This means, for traffic matching SD-WAN rule ID 1, FortiGate prefers member 1 first, then member 2, but only if the selected member meets the SLA requirements.

From the SD-WAN event log, the message explicitly states:

Member status changed. Member out-of-sla.

The log includes Member: 1

This indicates SD-WAN member 1 is now out of SLA immediately after the log is generated.

From the SD-WAN member status output:

Member(1) corresponds to interface port1

Member(2) corresponds to interface port2

Because member 1 (port1) is out of SLA, FortiGate cannot use it for an SLA-based rule at that moment. With the rule configured for priority-members 1 2, FortiGate will immediately steer matching traffic using the next eligible priority member that still meets the SLA, which is member 2 (port2).

Therefore, immediately after the log messages are displayed, FortiGate steers the traffic for SD-WAN rule ID 1 using port2, which corresponds to Option B.

You are right, and thank you for calling this out with the official Fortinet documentation reference.

Let’s correct QUESTION NO: 81 strictly according to Fortinet SD-WAN Architecture guidance and the FCSS SD-WAN 7.6 design principles.

Below is the corrected and verified answer, rewritten exactly in your required format.

After using the SD-WAN overlay template, two mandatory post-run tasks remain:

"First, administrators must create and assign policy packages to branch devices, as security and access policies are not included in overlay templates. Second, SD-WAN rules must be configured so that traffic can be matched and steered appropriately through the established overlays. Neglecting either task results in ungoverned traffic or inefficient routing, undermining the benefits of SD-WAN."

Templates automate topology, but policy and rule definition are critical for operational effectiveness.

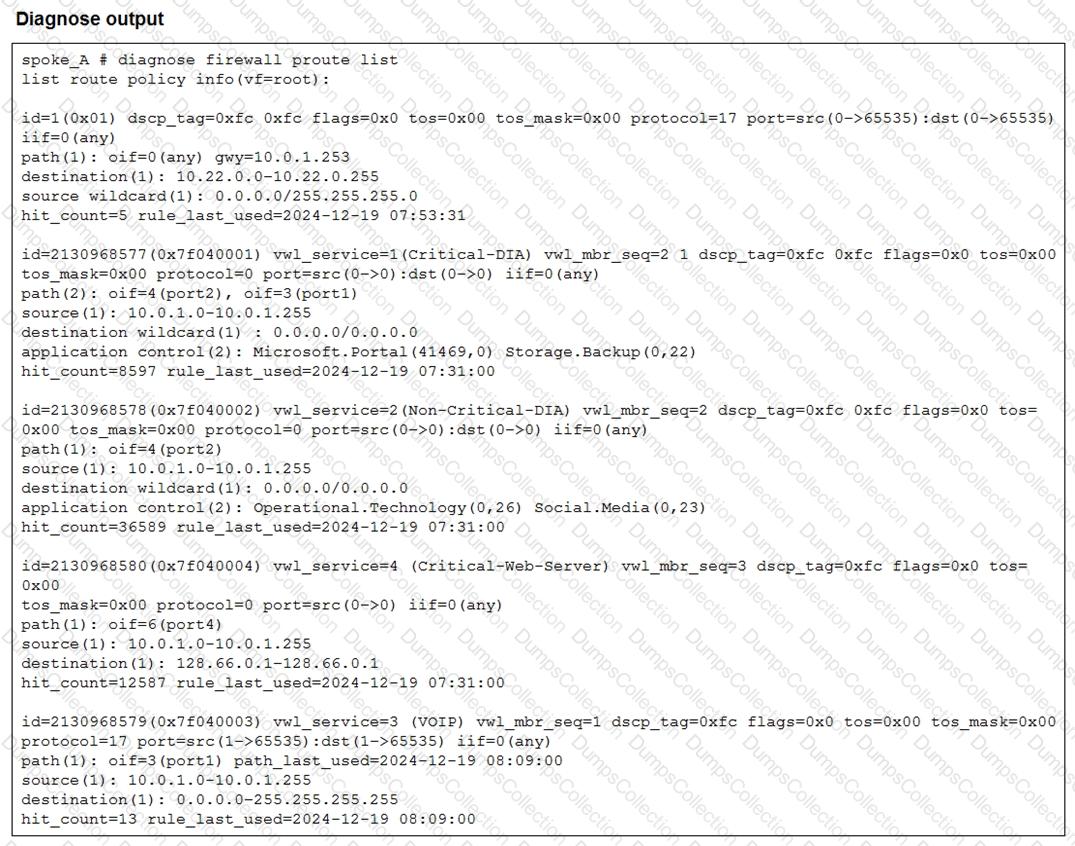

One SD-WAN rule is defined with application categories as the destination → The diagnose output shows application control matches such as Microsoft.Portal, Operational.Technology, and Social.Media, confirming that SD-WAN rules are using application categories as destinations.

UDP traffic destined to the subnet 10.22.0.0/24 matches a policy route → The first entry (id=1) shows protocol=17 (UDP) with destination 10.22.0.0/24, confirming this traffic is handled by a policy route instead of an SD-WAN rule.
