Fortinet Fortinet NSE 7 Public Cloud Security 7.2 (FCSS) NSE7_PBC-7.2 Exam Dumps: Updated Questions & Answers (October 2025)

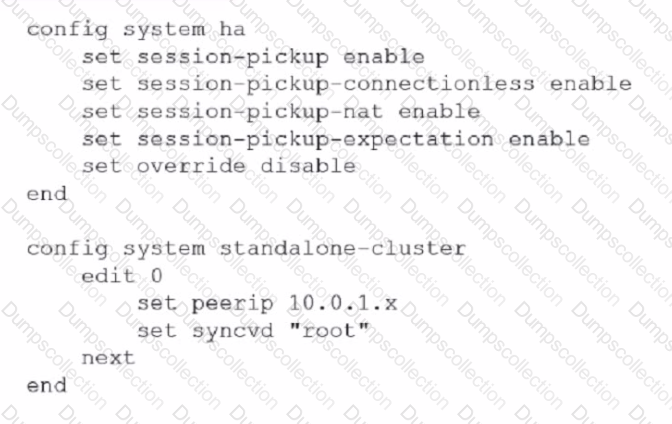

In an HA active-active load balance configuration with FortiGate VMs, especially in Microsoft Azure where FGSP (FortiGate Session Life Support Protocol) is used for session synchronization, the correct configuration for the peerip is:

D. The opposite FortiGate port 2 IP address.

HA Synchronization Requirements: FGSP requires direct communication between the FortiGates to synchronize the session table. This synchronization typically occurs over a dedicated HA link that connects the HA pair.

Asymmetric Traffic Considerations: FGSP allows asymmetric traffic to rejoin the correct session by synchronizing session information, including NAT and TCP sequence tracking between the FortiGate units in a cluster.

Configuration Specifics: For port 2, which is facing the internal load balancer, the peerip should be set to the corresponding port 2 IP address of the opposite FortiGate. This allows the internal interfaces to communicate directly with each other for session synchronization purposes, which is crucial in an active-active deployment to ensure sessions persist during failover scenarios.

References: The choice of using port 2's IP address for FGSP is supported by the Fortinet documentation, which explains how FortiGates should be configured for HA, especially in cloud environments where traditional HA links may not be available.

Network ACLs are stateless, and they evaluate each packet separately based on the rules that you define. The rules are processed in order, starting with the lowest numbered rule1. If the traffic matches a rule, the rule is applied and no further rules are evaluated1. Therefore, if you want to allow SSH traffic to a subnet, you must create a new allow SSH rule above rule number 5, which denies SSH and telnet traffic. Otherwise, the deny rule will take precedence and block the SSH traffic.

The other options are incorrect because:

Creating a new allow SSH rule below rule number 5 will not allow SSH traffic, because the deny rule will be evaluated first and block the traffic.

Creating a new allow SSH rule anywhere in the network ACL rule base will not guarantee that SSH traffic will be allowed, because it depends on the order of the rules. If the allow SSH rule is below the deny rule, it will not be effective.

You cannot rely on the default security group rule to allow SSH traffic to the subnet, because network ACLs act as an additional layer of security for your VPC. Even if your security group allows SSH traffic, your network ACL must also allow it. Otherwise, the traffic will be blocked at the subnet level.

Transit Gateway Connect Specificity: AWS Transit Gateway Connect is a specific feature designed to streamline the integration of SD-WAN appliances and third-party virtual appliances into your Transit Gateway.expand_more It utilizes a specialized attachment type.exclamation

BGP's Role: While Transit Gateway Connect attachments leverage BGP for dynamic routing, BGP itself is a routing protocol and not the core connectivity mechanism in this context.

GRE Tunneling: GRE is a tunneling protocol commonly used with Transit Gateway Connect attachments to encapsulate traffic.

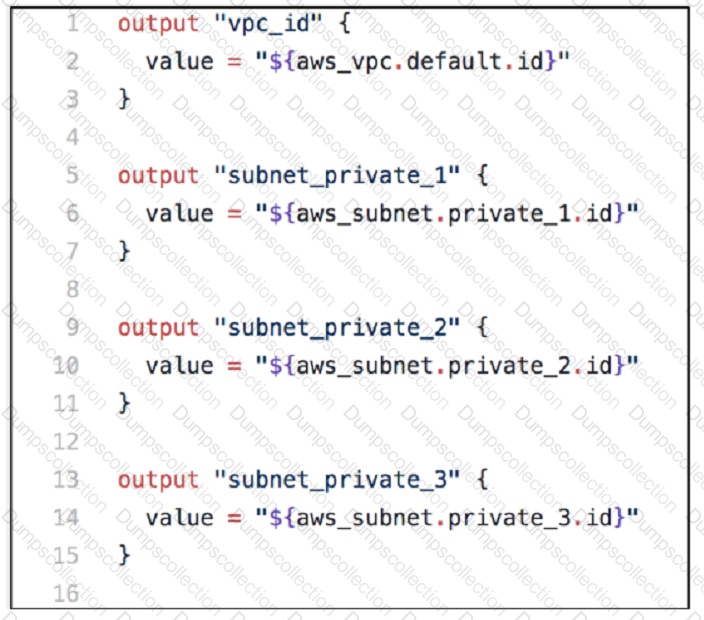

A. All the output values are available after a successful terraform apply command. This means that after the deployment, you can view the output values by running terraform output or terraform show in the same directory where you ran terraform apply1. You can also use the output values in other Terraform configurations or external systems by using the terraform output command with various options2. B. The subnet_private_1 value is defined in the variables.tf file. This means that the subnet_private_1 value is an input variable that can be customized by passing a different value when running terraform apply or by setting an environment variable3. The variables.tf file is where you declare all the input variables for your Terraform configuration4.

The other options are incorrect because:

After the deployment, Terraform output values are not visible only through AWS CloudShell. You can access them from any shell or terminal where you have Terraform installed and configured with your AWS credentials.

You do not need to specify all the AWS credentials in the output.tf file. The output.tf file is where you declare all the output values for your Terraform configuration4. You can specify your AWS credentials in a separate file, such as provider.tf, or use environment variables or shared credentials files. References:

Output Values - Configuration Language | Terraform - HashiCorp Developer

Command: output - Terraform by HashiCorp

Input Variables - Configuration Language | Terraform - HashiCorp Developer

Configuration Language | Terraform - HashiCorp Developer

A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels. References:

Creating the TGW and related resources

Configuring TGW route tables

FortiGate Public Cloud 7.2.0 - Fortinet Documentation

Updating the route table and adding an IAM policy

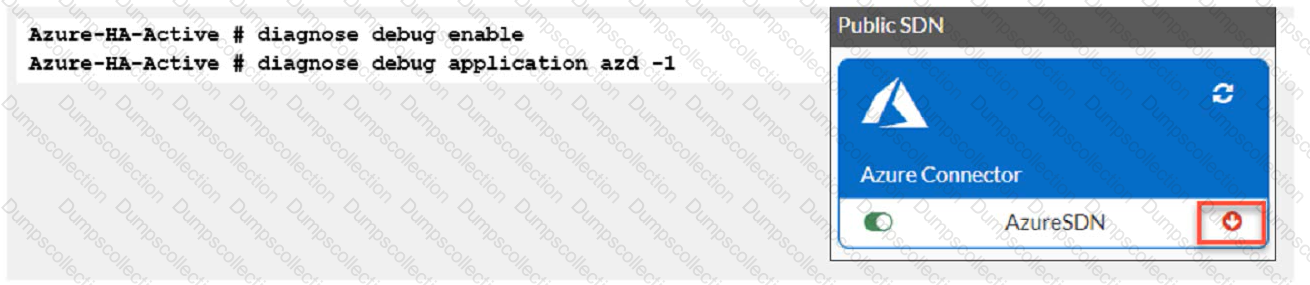

The three settings that should be checked while troubleshooting this problem are:

Ensure FortiGate port4 can resolve DNS. This is because the Azure SDN connector requires DNS resolution to communicate with the Azure API1. If the FortiGate port4 cannot resolve DNS, the SDN connector will not be able to retrieve the Azure resources and display them in the GUI.

Ensure FortiGate portl has internet access. This is because the Azure SDN connector requires internet access to communicate with the Azure API1. If the FortiGate portl does not have internet access, the SDN connector will not be able to connect to the Azure cloud and display an error in the CLI.

Ensure IP address 169.254.169_254 is not blocked. This is because the Azure SDN connector uses this IP address to obtain metadata information from the Azure instance2. If this IP address is blocked by a firewall policy or a network ACL, the SDN connector will not be able to get the required information and display an error in the CLI.

The correct answer is C and D. FortiGate NGFW can inspect north-south container traffic with label aware policies and FortiGate NGFW and FortiSandbox can be used to secure container traffic.

According to the Fortinet documentation for container security1, FortiGate NGFW can provide the following benefits for securing container infrastructure:

It can inspect north-south traffic between containers and external networks using label aware policies, which allow for dynamic policy enforcement based on Kubernetes labels and metadata.

It can integrate with FortiSandbox to provide advanced threat protection for container traffic, by sending suspicious files or URLs to a cloud-based sandbox for analysis and detection.

It can leverage FortiGuard Security Services to provide real-time threat intelligence and updates for container traffic, such as antivirus, web filtering, IPS, and application control.

The other options are incorrect because:

FortiGate NGFW cannot be placed between each application container for north-south traffic inspection, as this would create unnecessary complexity and overhead. Instead, FortiGate NGFW can be deployed at the edge of the container network or as a sidecar proxy to inspect traffic at the ingress and egress points.

FortiGate NGFW cannot connect to the worker node and protect the container, as this would not provide sufficient visibility and control over the container traffic. Instead, FortiGate NGFW can leverage the native Kubernetes APIs and services to monitor and secure the container traffic.

1: Fortinet Documentation Library - Container Security

In using Red Hat Ansible for changing the configuration of a FortiGate VM, the minimum number of files you must create and the file to configure the target FortiGate IP address are:

B. Create two files and use the hosts file.

Ansible Playbook File (YAML): The playbook file, which is typically a YAML file, contains the desired states and tasks that Ansible will execute on the target hosts.

Inventory File (Hosts): The inventory file, commonly named hosts, is where you define the target machines, including the FortiGate VM's IP address. Ansible uses this file to determine on which machines to run the playbook.

By creating these two files, you will have the necessary components to configure Ansible for the deployment. The playbook contains the automation tasks, and the hosts file lists the machines where those tasks will be executed.

References: This structure is specified in the Ansible documentation, which details the use of playbooks and inventory files to manage and configure target systems.

Immutable infrastructure is a DevOps approach that emphasizes the creation of disposable resources instead of modifying existing ones1. This approach helps to achieve stability, consistency, and predictability in IT operations by reducing the risk of configuration drift and eliminating stateful components1.

One way to implement immutable infrastructure is to use a blue-green deployment strategy, which runs two live environments for configuration changes2. The blue environment is the current production environment, while the green environment is the new version of the application or service. When the green environment is ready, the traffic is switched from blue to green, and the blue environment is destroyed or kept as a backup2. This way, there is no need to update or patch the existing infrastructure, but rather replace it with a new one.

References:

1: Immutable Infrastructure, Architecture, and its benefits

2: Introduction to Immutable Infrastructure – BMC Software | Blogs

The correct answer is D. CloudWatch and S3.

According to the GitHub repository for the Fortinet aws-lambda-tgw script1, this function requires the following AWS services:

CloudWatch: A monitoring and observability service that collects and processes events from various AWS resources, including Transit Gateway attachments and route tables.

S3: A scalable object storage service that can store the configuration files and logs generated by the Lambda function.

By using the Fortinet aws-lambda-tgw script, you can automate the creation and configuration of Transit Gateway Connect attachments for your FortiGate devices. This can help you save time and avoid errors when adding more spoke VPCs to an existing hub and spoke topology1.

The other AWS services mentioned in the options are not required for this task. GuardDuty is a threat detection service that monitors for malicious and unauthorized behavior to help protect AWS accounts and workloads. WAF is a web application firewall that helps protect web applications from common web exploits. Inspector is a security assessment service that helps improve the security and compliance of applications deployed on AWS. DynamoDB is a fast and flexible NoSQL database service that can store various types of data.

1: GitHub - fortinet/aws-lambda-tgw
