In Brocade Fibre Channel fabrics, ISL Trunking allows multiple physical links to behave as a single logical entity. For this to work efficiently, the switch must synchronize the delivery of frames across all physical links to ensure they arrive in the correct order. This process is managed by the Deskew mechanism.

"Skew" refers to the difference in time it takes for a signal to travel across the different physical cables within a trunk, often caused by slight variations in cable lengths. According to the Brocade Fabric OS Administration Guide, the switch hardware automatically measures these differences and applies "deskew units" to the faster (shorter) links to delay them, effectively matching the speed of the slowest (longest) link in the trunk.

A critical rule in SAN design is the distance limitation between cables in a trunk. While Brocade switches are highly capable of compensating for skew, the maximum supported difference in cable length within a single trunk is usually around 30 meters. For calculation purposes, one deskew unit is approximately equal to 20 meters of cable length. If the physical length difference between the shortest and longest cable exceeds the hardware's deskew buffer capacity (which varies by ASIC generation but is measured against this 20m/unit metric), the trunk will fail to initialize or will experience significant performance degradation. Option A is incorrect because the shortest ISL is usually the baseline, not a variable deskew value. Option B is partially true but misses the physical length constraint which is the "dependency" asked for. Option C is incorrect as the deskew unit represents the difference in time (offset), not the total travel time.

HPE CloudPhysics is a SaaS-based analytics platform that collects high-resolution metadata (at 20-second intervals) from a customer's virtualized infrastructure to drive data-led procurement and optimization decisions. In the context of performance analysis and sizing, it is critical to understand not just the average utilization, but how different resource demands interact over time.

The Peak Details statistic is unique within the CloudPhysics analytics framework because it provides time-correlated values across different resource dimensions (CPU, RAM, and Disk I/O). While standard "Storage Metrics" or "Hardware Performance" summaries often present aggregated averages or 95th percentile figures that lose their temporal context, Peak Details allows an architect to see exactly when a spike occurred.

This correlation is essential for determining if a storage bottleneck is being driven by a simultaneous compute peak or if a specific "noisy neighbor" VM is impacting the entire datastore during a backup or batch processing window. By aligning disk latency peaks with IOPS and throughput peaks on the same timeline, CloudPhysics enables the architect to validate if the existing third-party array is truly under-provisioned or simply misconfigured. This time-correlated insight ensures that the new HPE storage solution is sized not just for total capacity, but for the actual performance "burstiness" observed in the customer's production cycle. Other metrics, while useful for high-level summaries, do not provide the granular, synchronized timeline required to perform a deep-dive root cause analysis or precision sizing for mission-critical workloads.

The HPE Peer Motion Utility (PMU) and its integrated counterpart in HPE GreenLake and SSMC are designed for the non-disruptive migration of data between storage systems, such as from an HPE 3PAR to an HPE Alletra 9000 or Primera. A core requirement for the "Online" (non-disruptive) version of this migration is that the storage fabric must support and have N-Port ID Virtualization (NPIV) enabled.

Architecturally, Peer Motion relies on the destination array's ability to "masquerade" as the source array during the transition. When a volume is migrated, the destination array creates virtual ports using NPIV to inherit the identity (WWNs) of the source array's ports. This allows the host's multipathing software to see the new storage paths as if they were additional paths to the original volume, enabling a seamless transition without a server reboot or I/O interruption. According to the HPE Peer Motion Utility User Guide, if the SAN fabric (the switches) does not support NPIV or if NPIV is disabled on the specific ports, the migration utility will default to a Minimally Disruptive Migration (MDM) or an offline migration, both of which involve host-side downtime.

Furthermore, the fabric must be zoned such that the source and destination arrays can "see" each other to establish the Peer Motion relationship and handle the data orchestration. Option B is incorrect because while the management station (running the PMU) requires IP connectivity to send commands, the actual data movement and host-transparent pathing are strictly dependent on the FC fabric's NPIV capability. Option C is incorrect as fabric connections (via switches) are required; direct point-to-point connections between array FC ports are typically not supported for Peer Motion federations.

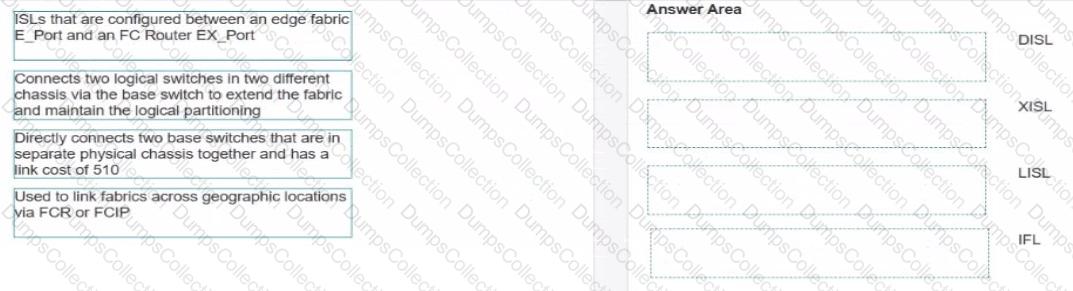

LISL: Directly connects two base switches that are in separate physical chassis together and has a link cost of 510

XISL: Connects two logical switches in two different chassis via the base switch to extend the fabric and maintain the logical partitioning

DISL: ISLs that are configured between an edge fabric E_Port and an FC Router EX_Port

IFL: Used to link fabrics across geographic locations via FCR or FCIP

Brocade Virtual Fabrics (VF) allow a single physical switch to be partitioned into multiple logical switches, each with its own data and control planes. This architectural flexibility requires specialized Inter-Switch Link (ISL) types to maintain logical isolation across physical chassis.

LISL (Logical ISL): These are logical links that directly connect two Base Switches located in separate physical chassis. A defining characteristic of an LISL in Brocade Fabric OS is its default link cost of 510, which ensures it is typically used only for specific inter-fabric control traffic unless manually adjusted.

XISL (Extended ISL): An XISL is a transport link used to connect two logical switches residing in different physical chassis by tunneling through the Base Fabric. This allows the administrator to extend a single logical fabric across multiple physical devices while maintaining strict logical partitioning and reducing the number of physical cables required between chassis.

DISL (Dedicated ISL): These links are specifically configured between an edge fabric E_Port and an FC Router EX_Port. They are used in Fibre Channel Routing (FCR) topologies to provide a dedicated path for inter-fabric traffic between a standard fabric and a meta-fabric router.

IFL (Inter-Fabric Link): IFLs are the foundational links used to connect disparate fabrics across geographic locations. They utilize either Fibre Channel Routing (FCR) or FCIP tunneling to enable communication between devices in different fabrics without merging them into a single logical entity. This is a key component for large-scale disaster recovery and data distribution architectures where fabric stability and distance are primary concerns.

HPE Peer Persistence for the Alletra 6000 (and Nimble) provides synchronous replication and automatic transparent failover (ATF) using the Automatic Switchover (ASO) feature. This process is governed by a Quorum Witness that monitors the health of both arrays in a group.

A fundamental design principle of HPE high-availability storage is to prevent "flapping"—a condition where a workload repeatedly bounces between two sites due to an unstable connection. Consequently, the ASO process is designed to be unidirectional and sticky. When a primary site failure occurs and the Quorum Witness authorizes an automatic switchover, the secondary array becomes the "Upstream" (active) array and begins serving I/O. Once the original primary site is restored and the replication link is re-established, the arrays will automatically begin a resynchronization to ensure data consistency. However, even after the data is fully synced, the system will not automatically move the workload back to the original array. The administrator must perform a manual handover to return the volume collection to its preferred primary site.

Regarding the other options:

Option B: If the witness is unreachable, ASO is automatically disabled to prevent a "split-brain" scenario where both arrays might try to become active simultaneously.

Option C: A single controller failure within an Alletra 6000 does not trigger an ASO. Instead, the array performs an internal controller failover (ALUA) which is transparent to the Peer Persistence relationship.

Option D: In a synchronous relationship, if the target becomes unavailable, the source array typically transitions to an "Out of Sync" state but continues to serve host I/O in order to maintain application availability, rather than rejecting it.

Sites

The Zerto Virtual Replication Appliance (VRA) is a critical architectural component of the Zerto solution. It is a lightweight Linux-based virtual machine that must be installed on every hypervisor host (ESXi or Hyper-V) in both the production and recovery sites that will host protected virtual machines. The VRA is responsible for intercepting the I/O writes from the VMs and asynchronously replicating them to the recovery site.

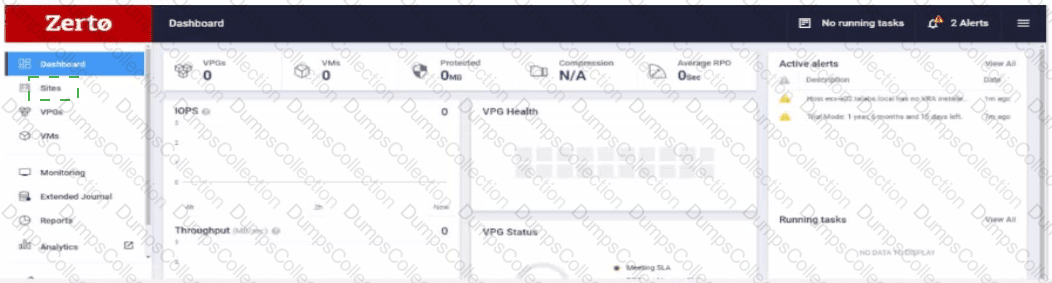

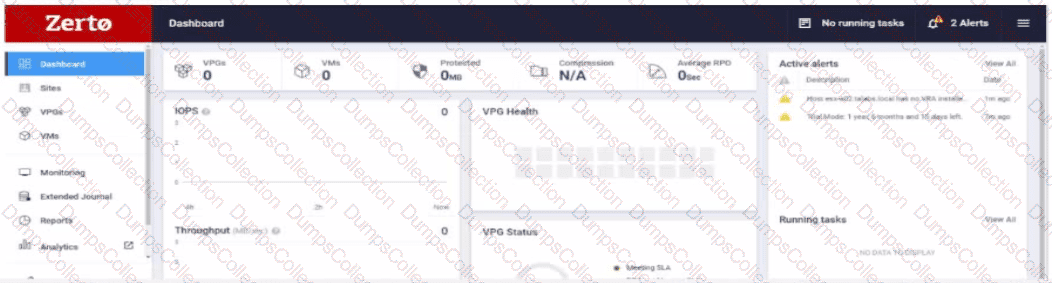

In the Zerto Virtual Manager (ZVM) web interface shown in the exhibit (image_649973.png), the management of site-level infrastructure is centralized within the "Sites" tab. By clicking on this tab, the administrator accesses the view for both local and paired remote sites. Within the Local Site details, there is a sub-tab for "VRAs" or "Hosts" where the administrator can see a list of all hosts managed by the connected vCenter or SCVMM.

To deploy a VRA, the administrator selects the host(s) currently missing the appliance and clicks the "Install" button. The ZVM then automates the deployment, configuring the VRA with the necessary network settings and registering it with the hypervisor. Notably, the "Active alerts" window in the exhibit explicitly provides a hint: it shows an alert stating that "Host esx-e02.telabs.local has no VRA installed". Clicking on the "Sites" tab is the foundational step to resolve this alert and finalize the infrastructure setup required to begin creating Virtual Protection Groups (VPGs).

The requirements provided point toward a "Secondary Storage" use case where the data must be more than just a "cold" backup; it needs to be "active" for DevOps and testing. The HPE Alletra 5000 (the successor to the HPE Nimble Storage Adaptive Flash arrays) is specifically engineered for this hybrid role.

Architecturally, the Alletra 5000 utilizes the CASL (Content Aware Storage Architecture) file system. This allows it to perform high-speed inline deduplication and compression, making it a cost-effective repository for long-term retention. Crucially for the customer's DevOps requirement, Alletra 5000 supports Zero-Copy Clones. This means the storage administrator can instantly create multiple copies of production datasets for development and testing without consuming additional storage space or impacting the performance of the primary backup repository.

When paired with Veeam Backup & Replication, the solution meets the "fast granular restore" and "instant recovery" requirements perfectly. Veeam’s vPower technology enables Instant VM Recovery, which allows a virtual machine to be started directly from the compressed and deduplicated backup file on the Alletra 5000. Because the Alletra 5000 includes a flash tier for metadata and frequently accessed data, it provides the necessary IOPS to run these recovered VMs or DevTest workloads with near-production performance.

In contrast, while Cohesity (Option B) is a strong secondary platform, HPE dHCI is a primary infrastructure solution and not just a backup repository. Scality RING (Option C) is an object storage solution geared toward massive scale and petabyte-level archives, but it lacks the performance characteristics for "instant recovery" and seamless DevOps cloning found in the Alletra 5000. HPE Alletra 4000 (Option D) is a high-density data server (formerly Apollo) which provides the raw hardware but lacks the integrated CASL-based intelligence and "Better Together" orchestration that the Alletra 5000/Veeam partnership offers for this specific customer profile.

The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.

Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.

Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high-density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.

Option E is incorrect because the entire pool is not reserved; a significant portion of the ASIC's buffers remains in a "shared pool" that can be dynamically allocated for long-distance links or high-demand ports via the "Extended Fabrics" feature. Option B is incorrect as it confuses the TCP windowing concept with FC credit-based flow control. Option A is incorrect because BB credits are a local port-to-port negotiation (link-level) and do not need a fabric-wide global "agreement" to form the fabric.

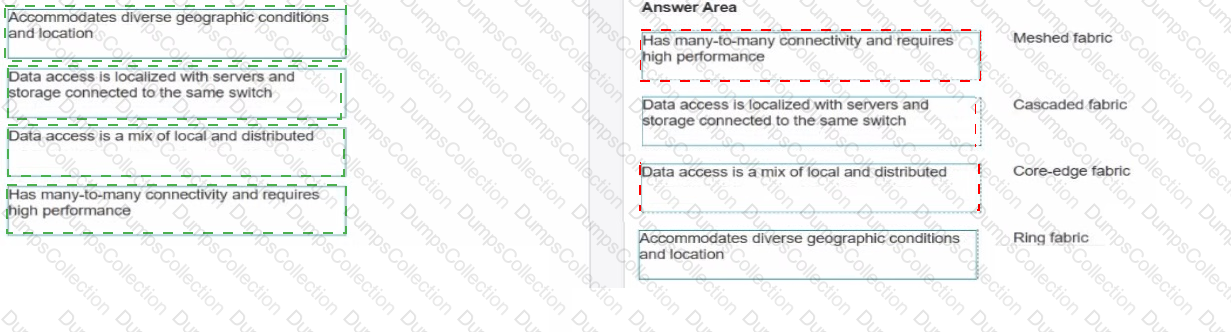

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

Performance Estimation

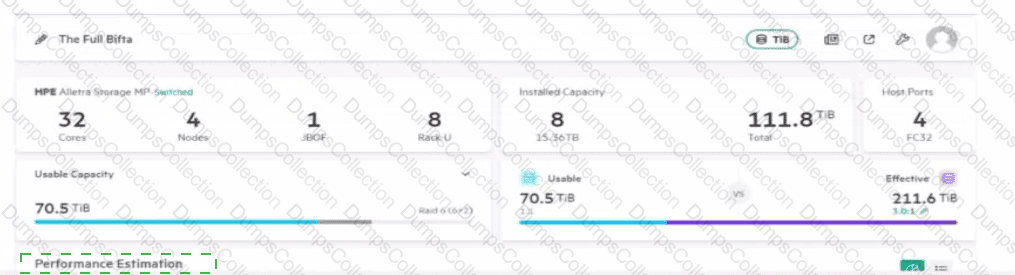

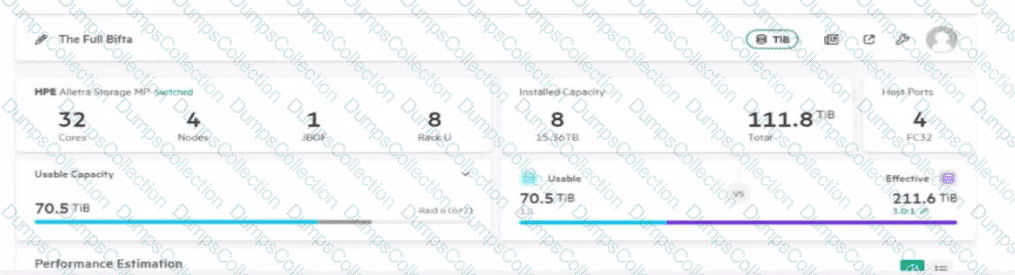

The HPE Ninja Sizer is a vital tool for storage architects to model the "Performance vs. Capacity" trade-offs of the HPE Alletra MP B10000 disaggregated architecture. In this scenario, the current configuration (as shown in the exhibit) consists of 4 nodes and 1 JBOF (with 8 drives of 15.36TB each).

To address poor read/write performance in Ninja Sizer, the partner must analyze the Performance Estimation pane. By clicking the chart/graph icon in the bottom right of the summary dashboard, the tool opens a detailed breakdown of the IOPS, throughput, and latency limits for the selected hardware. In a disaggregated shared-everything (DASE) architecture like the Alletra MP, performance is a direct function of the "node-to-drive" ratio. A configuration with only 8 drives (as seen in image_6491d0.png) may be "disk-bound," meaning the controllers have more compute power than the backend drive count can support in parallel.

By accessing the performance details, the partner can see if the bottleneck is at the node level (CPU/Cores) or the drive level (Flash bandwidth). To "correct this issue" and optimize the sizing, the partner would typically need to increase the drive count within the JBOF to allow for more parallel I/O streams or add additional JBOFs to scale the backend bandwidth. The Ninja Sizer provides real-time feedback; as the partner adds more 15.36TB drives, they will see the Performance Estimation bars move from yellow/red toward green, indicating an appropriately balanced solution that meets the customer's latency and throughput SLAs.
