In dual-link MSB networking with load balancing, the new AP will connect to the AC with the lower number of connected APs. In this case, AC2 has only 20 connected APs, while AC1 has 100. Therefore, the new AP will connect to AC2 ​.

Goal Analysis:

Requirement:

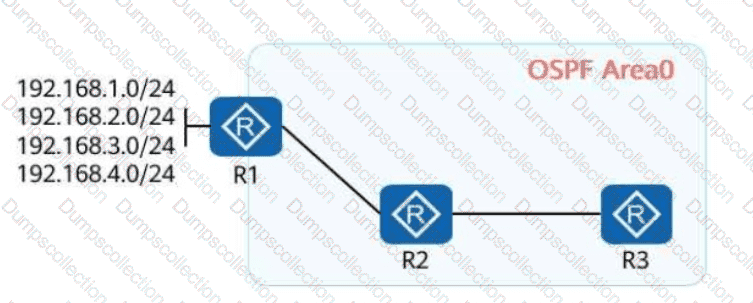

The route to192.168.3.0/24must exist in R1's and R3's routing tables.

The route mustnot exist in R2's routing table.

This requires filtering to ensure the route is either:

Blocked on R2's routing table (via filtering on R2), or

Blocked before it is advertised to R2.

Analysis of Each Option:

Option A (Filter-policy on R2 for filtering received routes):

Applying a filter-policy on R2 to filter received routes will block the route from entering R2's routing table but still allow it to propagate to R3.

This meets the requirement.

Option B (Filter-policy on R2 for filtering the routes to be advertised):

Blocking the advertisement of routes from R2 to other routers does not affect the routes received by R2 itself.

This does not meet the requirement but does not affect the propagation to R3.

This is valid if the received route is blocked.

Option C (Filter-policy on R1 for filtering the routes to be imported):

If the route is filtered on R1 during the import phase, the route will not exist in R1’s routing table and thus cannot be advertised to either R2 or R3.

This fails to meet the requirement because the route must exist in R1's and R3's routing tables.

Option D (Filter-policy on R1 for filtering the imported routes to be advertised):

Filtering routes on R1 before advertising to R2 will prevent R2 from receiving the route but allow R1 to advertise the route to R3.

This meets the requirement.

Correct Option:

C (Filter-policy on R1 for filtering the routes to be imported):This will prevent the route from existing in both R1 and R3, violating the stated requirement.

In the topology, SWB's GE0/0/2 is the Root Port because it has the least cost path to the Root Bridge (SWA). SWC's GE0/0/1 is the Designated Port because it forwards traffic to SWA while maintaining the shortest path to the Root Bridge. This setup ensures efficient traffic flow in the spanning tree topology ​.

Comprehensive and Detailed In-Depth Explanation:

A. TRUE→ Firewalls maintainsession tableswith adefault session timeout; adjusting it depends onnetwork conditions.

B. FALSE→Fast session aging does not affect persistent connection sessions. Persistent connections (e.g., TCP keepalives)maintain sessionseven if aging settings change.

C. TRUE→ Sessionsmust be constantly matchedwith ongoing traffic to remainactive.

D. TRUE→ Evenwithout stateful inspection, the firewallcreates session entriesfornon-first packetsto maintaincontinuity of services.

????Reference:Huawei HCIA-Datacom Study Guide, Firewall Session Table Mechanism.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the IGMP Group Entry:

The IGMP group entry contains key information about multicast groups on the interface:

Group Address (225.1.1.2):The multicast group address that the user has joined.

Last Reporter (10.1.6.10):The IP address of the last host that sent an IGMP Report message for this group.

Uptime:The duration since the group was first reported.

Expires:The remaining time before the group entry ages out if no further reports are received.

2. Analysis of Each Statement:

Option A: This entry can be used to construct the corresponding (S, G) entry.

Incorrect.

This is a group entry for IGMP, which contains information about the group (G) but does not include a specific source (S). (S, G) entries are created in PIM (Protocol Independent Multicast), not IGMP.

Option B: This entry is created when the device receives an IGMP Join message from a user.

Correct.

IGMP Join messages are used by hosts to signal their intent to join a multicast group. When such a message is received, the group entry is created.

Option C: Expires indicates the aging time of the IGMP group.

Correct.

The "Expires" field shows the remaining time before the group entry ages out if no further IGMP reports are received.

Option D: 225.1.1.2 is the address of the group that the user joins.

Correct.

The "Group Address" field explicitly states that 225.1.1.2 is the multicast group that the user has joined.

3. Summary:

Correct Options:B, C, D

 Neighbor Discovery Protocol (NDP):

NDP is a key protocol in the IPv6 protocol suite, replacing ARP (Address Resolution Protocol) in IPv4.

It operates using ICMPv6 (Internet Control Message Protocol for IPv6) and is critical for managing interactions between IPv6 nodes on the same link.

HCIP-Datacom-Core Technology Training Material (NDP Functions and Features)​​.

 NDP Features and Functions:

A. Address resolution:NDP resolves IPv6 addresses into MAC addresses, similar to ARP in IPv4. It uses Neighbor Solicitation (NS) and Neighbor Advertisement (NA) messages for this purpose.Reference:HCIP-Datacom-Core Technology Training Material (Address Resolution in IPv6)​.

B. Neighbor state tracing:NDP tracks the state of neighbors to determine their reachability. It maintains a neighbor cache and uses NS/NA messages to verify whether neighbors are reachable.Reference:HCIP-Datacom-Core Technology Training Material (Neighbor Reachability in IPv6)​.

C. Duplicate address detection (DAD):NDP ensures that IPv6 addresses are unique within a network. Before assigning an address to an interface, DAD is used to verify that no other node is using the same address. This is done via NS messages.Reference:HCIP-Datacom-Core Technology Training Material (IPv6 Address Assignment and DAD)​.

D. Redirection:NDP provides redirection functionality to inform hosts of a better first-hop router for reaching a particular destination. It uses ICMPv6 Redirect messages for this purpose.Reference:HCIP-Datacom-Core Technology Training Material (NDP Redirect Functionality)​.

 Conclusion:NDP supports all the mentioned functions and features:Address resolution,Neighbor state tracing,Duplicate address detection, andRedirection, making it indispensable for IPv6 networks.

 VRRP and BFD Association:

VRRP (Virtual Router Redundancy Protocol) is used to provide gateway redundancy by electing amasterandbackuprouter.

Associating VRRP with BFD (Bidirectional Forwarding Detection) allows faster detection of faults on the master device or the link between the master and the backup.

HCIP-Datacom-Core Technology Training Material (VRRP and BFD Association)​.

 Master_Down_Timer Behavior:

Normally, when a VRRP backup device detects that the master is down (through missed VRRP advertisements), theMaster_Down_Timerdictates the failover timing.

However, when VRRP is associated with BFD:

BFD detects faults immediately (sub-second detection).

The backup device doesnot wait for the Master_Down_Timerto expire. Instead, it immediately assumes the master role upon fault detection by BFD.

Option B isfalse. By default, when the aggregate command is usedwithout any options, BGP generates asummary route, andsuppresses the specific routesthat fall under that summary. To advertise both specific and summary routes, you mustexplicitly configurethe detail-suppressed option to control whether specifics are suppressed or not.

Explanation of the other options:

Ais correct: When suppress-policy is specified, only specific routes matching the policy are advertised; others are suppressed.

Cis correct: The summary automatic command causes summarization based on classful boundaries, which is a legacy behavior.

Dis correct: With detail-suppressed, only the summary route is advertised, not specific prefixes.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“The aggregate command suppresses specific routes by default unless explicitly configured otherwise. Use of suppress-policy or detail-suppressed allows control over which routes are advertised.”

(Chapter: BGP Advanced Features – Section: Route Aggregation)

 ACL in Routing Policies

ACLs are frequently used in routing policies to match specific routes based on criteria such as source IP, destination IP, and more. This allows ACLs to influence route redistribution, filtering, and forwarding decisions.

 HCIP-Datacom-Core Reference

ACL applications in routing policies are discussed in the routing policy chapters​​.

The error indicates "Incorrect remote AS," which refers to a mismatch in the autonomous system (AS) numbers during BGP peer configuration. This issue is unrelated to the neighbor address. The neighbor address (10.1.1.5) and timestamp (2010-03-22 12:40:39) provided in the output are correct, and the error type confirms a neighbor relationship issue ​.
