Huawei defines HyperCDP as a continuous-protection mechanism and states that it provides more intensive and persistent protection than conventional writable snapshots while imposing little impact on source LUN performance.

For block protection, a protection group provides the logical collection of source LUNs that must be protected consistently. A HyperCDP consistency group is then created for that protection group so that the member LUNs can receive a coordinated set of CDP protection points. Therefore, the protection group must already exist before the corresponding HyperCDP CG is created, making B correct.

A protection plan or schedule controls the policy and timing of protection-point generation; it is not the prerequisite object that defines which LUNs belong to the HyperCDP consistency relationship. This distinction is important: membership is established by the protection group, while execution timing is governed by scheduling/policy settings.

Huawei ' s data-protection model consistently separates protected objects/groups from the policies subsequently applied to those groups.

Study Guide Topics: Flash Storage Technology Presentation → HyperCDP → Block Continuous Data Protection → Protection Groups → HyperCDP Consistency Groups.

The course states: “The survey phase includes determining the project scope and collecting design data. Understanding customer needs and project details, and identifying key stakeholders are key success factors in providing designs that meet customer needs. In this phase, the project scope and business objectives are determined.” This directly matches every element of the statement. The survey stage occurs before conceptual design, HLD, and LLD and is intended to establish the technical and business baseline for the entire storage project.

The course further explains that early discussions must cover objectives, restrictions, and project risks. Engineers must evaluate factors such as performance, availability, scalability, cost, and risk because these directly affect subsequent design decisions. Requirements that cannot be met must be discussed with key business personnel before the design proceeds.

This prevents incorrect storage sizing, unsuitable networking, insufficient availability, or a data-protection architecture that fails to meet actual service requirements. Therefore, determining scope, gathering design data, understanding customer requirements and project details, identifying stakeholders, and defining business objectives are all explicitly part of the Huawei survey phase.

Study Guide Topics: Storage Planning and Design → Basic Phases → Survey → Conceptual Design → HLD → LLD.

Huawei ' s LUN-discovery troubleshooting procedure explicitly lists “Cause 1: The storage pool is faulty” and “Cause 2: The link is abnormal.” For an abnormal link, DeviceManager is used to check whether the connected FC or iSCSI port reports Link down. The separate multipathing troubleshooting section states that multipathing malfunction generally leads to storage performance deterioration or failure to discover multiple paths. Typical causes include the multipathing software being blocked or the HBA driver having its own failover function. Therefore, the complete absence of multipathing software does not inherently prevent a Linux host from detecting a mapped LUN through an available single path. Multipathing primarily provides path aggregation, redundancy, failover, and load balancing.

By contrast, a faulty storage pool can make the LUN unavailable; incorrect FC zoning prevents the host initiator from reaching storage targets; and an actual physical or logical link fault prevents device discovery. Consequently, option A is the false statement.

Study Guide Topics: Storage O & M → Basic Storage Service → Failure to Discover LUNs → FC/iSCSI Link Troubleshooting → Multipathing Software.

Huawei describes DME IQ as supporting “remote maintenance and installed base operation.” It collects alarms, performance information, configurations, system logs, and disk information as the data foundation for intelligent O & M.

The full-lifecycle O & M architecture also places DME IQ on the intelligent prediction, remote O & M, online site deployment, and planning-simulation side of the Huawei data-management framework. DME IQ therefore directly supports remote O & M, installed-base operations, and delivery/maintenance-oriented activities.

Service Change, however, is associated primarily with DME Storage ' s data-center management and orchestration capabilities, rather than being one of the principal DME IQ functions. The DME Storage product architecture explicitly lists Service Change, O & M Management, Data Protection, and Data Flow as its operational domains.

DME IQ may analyze or simulate changes—for example workload migration or rollout—but executing service changes and resource orchestration belongs to DME/DME Storage. Consequently, D is the required answer.

Study Guide Topics: Data Storage Management and O & M → DME IQ → Intelligent Cloud O & M → Remote Maintenance → Installed Base Operations → DME Storage Service Change.

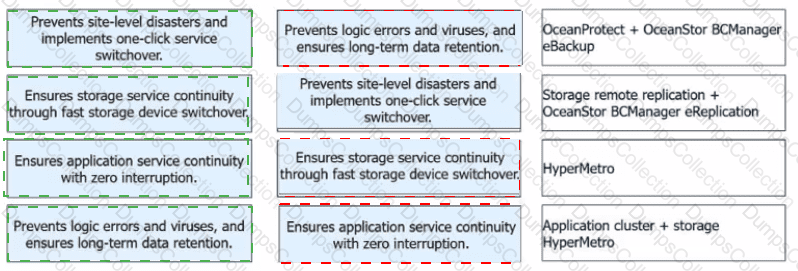

1 → Storage remote replication + OceanStor BCManager eReplication; 2 → HyperMetro; 3 → Application cluster + storage HyperMetro; 4 → OceanProtect + OceanStor BCManager eBackup

The mapping follows Huawei ' s separation of business continuity, data recoverability, and long-term retention.

The course states: “DR ensures business continuity. Backup focuses on data recoverability. Archiving is for long-term storage of cold data and regulatory compliance.”

Remote replication combined with BCManager eReplication addresses site-level disaster recovery, and Huawei states that BCManager provides one-click DR drill and switchover capabilities.

HyperMetro is the appropriate solution for storage-level continuity because Huawei defines it as an active-active storage solution using dual-write technology to provide service continuity and zero data loss.

When continuous availability must extend to the application layer, storage HyperMetro must be combined with an application cluster so that application processing itself can fail over seamlessly.

Finally, backup protects against logical corruption, accidental deletion, and malware-related damage because historical copies remain available independently of production data.

Study Guide Topics: Data Protection Basics → DR vs Backup → HyperMetro → Remote Replication → BCManager eReplication → Application-Level HA.

Huawei describes source deduplication as occurring before backup data is transferred to storage media. Data or files are segmented, fingerprints are calculated, and those fingerprints are sent to the DPA fingerprint repository for duplicate checking.

If an identical fingerprint already exists, Huawei states that the duplicate data block is not saved; instead, the existing block is referenced. Only when no duplicate fingerprint exists is the actual new data block transmitted.

This mechanism supports C: when the data content is already present in the backup system, the backup workflow needs only the metadata/reference information required to point to the existing block rather than retransmitting the duplicate payload.

The principal benefits are reduced network traffic, reduced backup-storage consumption, and a shorter backup window. The feature is not described as a mechanism whose purpose is to improve application-server performance; deduplication processing itself consumes some processing resources. Nor does the course define general source deduplication as being independently enabled or disabled according to application type or backup type in the way described by A and D.

Study Guide Topics: Data Protection Solution → DPA → Source Deduplication → Fingerprints → Duplicate Block Detection → Transmission Reduction.

Huawei states that after a remote replication pair is configured, “the secondary LUN is read-only by default.” If the primary LUN fails, the administrator can cancel write protection and make the secondary LUN writable so that the secondary storage system takes over host services.

Therefore, the statement is TRUE.

The default read-only behavior protects the DR copy from independent host modifications while normal replication is maintained. In a disaster situation, however, the secondary storage may need to become the active service provider. Removing secondary-LUN write protection enables DR-side hosts to perform both reads and writes against the protected copy.

Huawei specifically identifies this function as useful when a conventional primary/secondary switchover cannot be executed normally after failure of the production array. Once the secondary LUN has accepted new production writes, those changes are tracked so that subsequent incremental synchronization can support recovery and switchback.

This design shortens recovery time while preserving the normal protection model: read-only during ordinary replication, manually writable when DR takeover is required.

Study Guide Topics: Data Protection Solution → HyperReplication → Secondary LUN Write Protection → DR Takeover → Failover and Switchback.

The SmartMulti-Tenant section explicitly lists the three components of service isolation between tenants as “Service configuration isolation,” “Service access isolation,” and “Service data isolation.”

Therefore, A, C, and D are correct. Service configuration isolation prevents one vStore administrator or tenant environment from changing the service configuration belonging to another tenant. Service access isolation restricts access so that a tenant reaches only the resources allocated to that vStore. Service data isolation ensures that the data belonging to separate tenants remains logically segregated.

Option B is deliberately different. The course describes network isolation between tenants separately from service isolation. It states that a client can use a specified LIF to access only the file systems and snapshots belonging to the corresponding tenant. Therefore, network isolation is indeed part of the broader SmartMulti-Tenant architecture, but it is not one of the three items classified specifically as service isolation.

Study Guide Topics: Flash Storage Technology Presentation → Flash Storage Features → SmartMulti-Tenant → vStore → Tenant Service Isolation.

The supplied HCIE-Storage question set identifies A, B, and C as correct.

Link compression is an inter-array transmission optimization associated with HyperReplication. Because it operates on the replication path rather than in the host/application data path, it is transparent to the application server. The host continues to perform ordinary reads and writes against the primary storage system while HyperReplication handles the remote synchronization process.

Huawei describes HyperReplication as the core technology used to synchronize copies of local data to a remote storage system and distinguishes synchronous and asynchronous replication modes. For asynchronous replication, changed data is collected and transferred to the secondary system according to the replication period. Compression can therefore be applied inline to the transmission stream to reduce required WAN bandwidth.

Option D is not part of the keyed link-compression sequence. The retrieved Training Materials establish the HyperReplication transport and consistency mechanisms, but the parsed course text available here does not provide a detailed link-compression processing sequence that independently substantiates the specific “decompress first, then verify” assertion. Therefore, that additional sequence should not be inferred.

Study Guide Topics: Data Protection Solution → HyperReplication → Remote Replication Link → Link Compression → Bandwidth Optimization.

All four listed capabilities are included in the DME data-management/O & M framework.

Huawei describes DME Storage as an intelligent storage management platform covering the complete storage lifecycle, including planning, deployment, O & M, and optimization. Its architecture includes intelligent diagnosis, intelligent optimization, resource optimization, planning simulation, operation visibility, insight analysis, and multidimensional analysis.

Planning enables administrators to model and organize resources before deployment. Analysis provides performance, capacity, topology, alarm, and workload insight. Optimization uses those analytics to recommend or execute improvements such as capacity balancing, migration, SLA adjustment, and QoS changes. Search is important for unstructured-data environments because files, objects, and other unstructured content must be located and analyzed according to metadata.

Huawei OceanStor Pacific also provides SmartIndexing for unstructured file, object, and HDFS storage. It can return search results from extremely large metadata sets within seconds and provides unified multi-protocol metadata indexing.

Consequently, DME ' s unstructured-data management workflow spans the complete chain of search, analysis, planning, and optimization.

Study Guide Topics: Data Storage Management and O & M → DME → Unstructured Data Management → Search → Analysis → Planning → Optimization.
