To effectively troubleshoot packet forwarding in a Junos environment, an architect must distinguish between the control plane ' s Routing Information Base (RIB) and the data plane ' s Forwarding Information Base (FIB). While the command show route displays the RIB (the master routing table maintained by the Routing Engine), it does not necessarily reflect the actual instructions being executed by the hardware. The definitive command for viewing the data plane ' s active path selection is show route forwarding-table.

Executing this command reveals the contents of the FIB as it has been pushed from the Routing Engine to the Packet Forwarding Engine (PFE). The output provides critical diagnostic data, including the destination prefix, the specific next-hop IP address, the interface through which the packet will egress, and the type of route (such as unicast or broadcast). This is the " ground truth " for packet movement; if a route exists in the RIB but is missing from the forwarding table, it indicates a failure in the communication between the RE and PFE. Utilizing this command is the primary method for identifying black holes, incorrect next-hop resolution, or issues with hardware-level filter applications that might be impacting transit traffic flow at wire speed.

Transit traffic represents the primary " workload " of a Junos device; it is the data that enters one network interface and exits another, destined for a remote host. Unlike exception traffic, transit traffic is forwarded exclusively by the Packet Forwarding Engine (PFE) . The PFE uses specialized Application-Specific Integrated Circuits (ASICs) or programmable NPUs to perform lookups in the hardware-based forwarding table (FIB) at wire speed.

A defining characteristic of transit traffic is that it does not require control plane processing . Once the Routing Engine (RE) has populated the PFE with the necessary forwarding instructions, the RE steps out of the way. The packets pass through the PFE ' s ingress processing, lookups, and egress queuing without ever consuming CPU cycles on the Routing Engine. This bypass is what allows Junos devices to maintain massive throughput and low latency, even if the RE is busy recalculating a complex BGP table. Routing protocol packets (like OSPF updates) and traffic destined for the router ' s own management IP address are explicitly not transit traffic; they are control plane traffic because they terminate at the device ' s " brain. " Transit traffic is strictly " pass-through " data.

In Junos OS, the Packet Forwarding Engine (PFE) determines the next hop for a packet by performing a lookup in the forwarding table and identifying all valid matches for the destination IP address. When multiple routes encompass the same destination, the router strictly follows the Longest Prefix Match (LPM) rule to select the most specific entry.

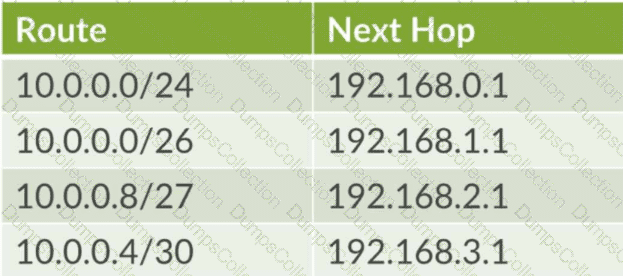

For the destination address 10.0.0.9 , the following evaluation occurs based on the exhibit:

10.0.0.0/24 : This route matches, as the address falls within the 10.0.0.0–10.0.0.255 range.

10.0.0.0/26 : This route matches, as the address falls within the 10.0.0.0–10.0.0.63 range.

10.0.0.8/27 : This route matches, as the address falls within the 10.0.0.8–10.0.0.39 range.

10.0.0.4/30 : This route does not match, as its range ends at 10.0.0.7.

Among the matching entries, the prefix lengths are /24, /26, and /27. The longest prefix match is /27 , as it specifies the most granular network segment. Because 10.0.0.8/27 is the most specific match for the destination 10.0.0.9 , the router selects its associated next hop, which is 192.168.2.1 . This deterministic behavior ensures that traffic follows the most precise path calculated by the routing protocols or defined by the administrator, overriding broader routes like the default or summary advertisements.

In Junos OS, a routing policy is a powerful tool used to manage the flow of routing information between the Routing Information Base (RIB) and routing protocols. Unlike forwarding decisions, which are handled by the Packet Forwarding Engine, routing policies function within the control plane on the Routing Engine. Their primary purpose is to define specific criteria for importing routes into the routing table from neighbors or exporting routes from the routing table to neighbors.

Routing policies consist of terms containing from (match) and then (action) statements. They allow administrators to filter prefixes (e.g., denying specific BGP routes), modify route attributes (e.g., changing OSPF metrics or BGP communities), and manipulate path selection behavior. For example, an export policy might be used to ensure that only specific internal subnets are advertised to an ISP via BGP, preventing the accidental leakage of private infrastructure addresses. By default, Junos applies " default policies " for each protocol (such as OSPF accepting all OSPF routes), but custom policies allow for granular control over how the device interacts with the rest of the network. This ensures that the routing table contains only the desired paths for optimal traffic engineering.

The Junos OS Command Line Interface (CLI) utilizes an advanced command-line editing environment influenced by standard Emacs and Unix terminal behaviors. One of the most critical features for operational efficiency is the command history buffer. This buffer automatically records a sequence of previously executed commands, allowing administrators to recall, modify, and re-execute them without manual re-entry.

The navigation of this history buffer is strictly chronological and operates as a stack. When the up arrow key is pressed once, the CLI retrieves the most recent command that was successfully entered—in this scenario, show chassis errors fpc-slot 0. Pressing the up arrow key a second time moves the cursor one step further back into the history stack to the command that preceded the most recent one. Following the provided sequence, the command executed prior to the " errors " check was show chassis fpc detail. Consequently, the second press of the up arrow key will display show chassis fpc detail at the prompt. This mechanism is essential for architects during intensive troubleshooting sessions, enabling them to cycle through relevant diagnostic commands rapidly while maintaining focus on the hardware output rather than syntax repetition. Reference: User Interfaces, CLI Editing Features, Command History.

==========

In Junos OS, the configuration database is designed with a robust versioning system that facilitates rapid recovery from administrative errors. Every time a commit command is successfully executed, the system automatically archives the previous active configuration and assigns it a " rollback " index. The rollback command is used within configuration mode to revert the candidate configuration to a previously saved state.

The indices are zero-based, where rollback 0 represents the currently active configuration that was just committed. To restore the configuration that was functional immediately before the most recent, problematic commit, the administrator must use rollback 1. This command replaces the current candidate configuration with the contents of the last known working state. It is important to note that executing rollback 1 only populates the candidate buffer; to make this previous configuration active and restore connectivity, the administrator must subsequently issue the commit command. This mechanism is a cornerstone of Junos OS ' s commitment to high availability and operational resilience, allowing for nearly instantaneous restoration of services without the need for manual line-by-line configuration edits during a network outage.

In Junos OS, the naming convention for physical interfaces is highly structured, providing immediate information regarding the media type, hardware location, and port number. The prefix of an interface name is a two-letter or three-letter code that identifies the speed and physical transmission characteristics of the interface. For 10-Gigabit Ethernet (GbE) interfaces, the correct prefix is xe. This prefix is a standard identifier across Junos platforms, regardless of whether the interface is fixed or modular.

Understanding these prefixes is essential for navigating the Junos configuration hierarchy and performing operational monitoring. For comparison, other common prefixes include fe for Fast Ethernet (10/100 Mbps), ge for Gigabit Ethernet (1 Gbps), and et for higher-speed interfaces such as 40-GbE or 100-GbE. When an administrator views the output of commands like show interfaces terse, identifying the xe prefix allows for the quick verification of high-bandwidth links within the network fabric. This standardized nomenclature ensures consistency across different hardware families, such as the EX, MX, and QFX series, facilitating easier management and troubleshooting for network architects. This concludes the provided set of questions from the Junos Associate (JNCIA-Junos) curriculum. Reference: Junos OS Fundamentals, Interface Naming Conventions.

Class of Service (CoS) is a fundamental suite of features in Junos OS designed to manage traffic patterns during periods of network congestion. Rather than treating all packets equally, CoS allows the Packet Forwarding Engine (PFE) to differentiate between various types of traffic—such as latency-sensitive Voice over IP (VoIP), critical routing protocol updates, and standard " best-effort " internet traffic—and prioritize them accordingly. When egress interface buffers become saturated, the CoS mechanism uses defined schedulers and queues to ensure that high-priority packets are transmitted first, while less critical traffic may be delayed or dropped.

It is important to distinguish CoS from security or addressing functions. CoS does not provide encryption services (which is the role of IPsec or MACsec), nor does it manage IP address allocation or VLAN segmentation. Instead, it focuses entirely on the intelligent allocation of bandwidth and buffer resources. By implementing CoS, network architects can guarantee a specific level of performance for mission-critical applications, effectively minimizing jitter and packet loss for the most important data streams. This deterministic behavior is vital for modern converged networks where multiple traffic types compete for limited hardware resources across the switch fabric or WAN links. Reference: Junos OS Fundamentals, Class of Service (CoS) Overview.

==========

In Junos OS, standard firewall filters operate as a primary security and traffic management tool within the forwarding plane. These filters are fundamentally stateless, meaning they evaluate each packet individually and in isolation without maintaining a session table or tracking the state of network connections. This stateless nature allows the Packet Forwarding Engine (PFE) to process filters at hardware speeds, ensuring minimal latency for transit traffic. This distinguishes them from the stateful security policies found on Junos security devices like the SRX Series, which track the entire lifecycle of a flow.

Furthermore, firewall filters are designed to inspect and match header information up to Layer 4 of the OSI model. This capability allows administrators to define terms based on parameters such as source and destination IP addresses (Layer 3) as well as TCP or UDP port numbers and protocol types (Layer 4). While they provide granular control over packet flow, they do not natively inspect Layer 7 application payloads, which is typically reserved for advanced services like Intrusion Detection and Prevention (IDP). By combining stateless execution with Layer 4 matching, Junos firewall filters provide an efficient method for implementing transit protection, rate limiting through policing, and protecting the local Routing Engine through loopback interface filtering. Reference: Routing Policy and Firewall Filters, Firewall Filter Framework.

==========

The architecture of a Junos device is bifurcated into two primary functional planes: the Control Plane, managed by the Routing Engine (RE), and the Data Plane, managed by the Packet Forwarding Engine (PFE). The Routing Engine serves as the " brain " of the device. One of its primary responsibilities is the processing of management traffic, which includes handling CLI sessions (SSH, Telnet), SNMP requests, and system logging. Because the RE runs the Junos OS kernel, it provides the environment for all administrative tasks and system management utilities.

Additionally, the Routing Engine is responsible for the intelligence of the network, which involves running routing protocols (such as OSPF, BGP, or IS-IS) and maintaining the master routing tables. It populates the Routing Information Base (RIB) with all learned paths and then calculates the best paths to build the Forwarding Information Base (FIB). This FIB is then pushed to the PFE for hardware-level packet switching. It is a common misconception that the RE handles transit traffic; however, the RE only handles " exception traffic " or traffic destined for the device itself. This separation ensures that the control plane remains stable and responsive even during periods of heavy transit load on the forwarding plane. Reference: Junos OS Fundamentals, Architectural Overview, Control Plane vs. Forwarding Plane.
