To protect an Oracle RAC Automatic Storage Management (ASM) instance and ensure automated restores, the recommended tool is the NetApp SnapCenter plugin. SnapCenter provides comprehensive backup, restore, and clone capabilities for Oracle databases, including those using ASM. It integrates tightly with Oracle RAC environments and automates the entire data protection process, ensuring that backups are consistent and restores are efficient and reliable.

For more details, refer to:

NetApp Documentation on SnapCenter for Oracle​ ( NetApp )​.

NetApp TR-4964: Oracle Database Backup, Restore, and Clone​ ( NetApp )​.

For enabling jumbo frames on Cisco Nexus switches for NVMe over TCP with tagged VLANs, the following changes are required:

Modify the Cisco Nexus switches to use an MTU of 9216: Setting the MTU to 9216 ensures that the network can handle jumbo frames, reducing the number of packets needed for large data transfers and thus improving performance.

Modify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9216: This setting must match the network configuration to ensure end-to-end support for jumbo frames, which is essential for optimizing performance in NVMe over TCP environments.

For additional information, refer to:

NetApp Documentation on NVMe over TCP

Cisco Documentation on Jumbo Frames

Verification should confirm actual FC logins at both the fabric and ONTAP layers. On Cisco switches, show flogi database displays devices that have successfully completed Fabric Login, enabling the engineer to confirm host and storage WWPN presence within the fabric. On ONTAP, vserver fcp initiator show displays FCP initiators that are currently logged in and identifies their associated SVM, LIF, WWPN, and igroup information. Together, these commands validate end-to-end client connectivity. show zoneset active confirms the currently activated zoning configuration but does not prove that every initiator has successfully logged in. vserver fcp portname show concerns target port-name information rather than currently connected initiators. Relevant SAN ONTAP topics include FLOGI, FC logins, initiator WWPNs, FCP LIFs, zoning validation, and redundant fabric troubleshooting.

To move a WWPN from node1 to node2 in a NetApp ONTAP SAN environment where ALUA is used, you must take the Logical Interface (LIF) offline. Modifying LIFs involves changing their assignment between nodes, which requires them to be temporarily offline. This ensures that the path states are correctly updated without causing disruption to the SAN hosts.

For more details, see:

NetApp Community on Moving LIFs

NetApp Documentation on SAN LIFs

To enable CHAP (Challenge-Handshake Authentication Protocol) authentication on iSCSI sessions, the command vserver iscsi security create should be used. This command sets up the necessary security policies and passwords required for CHAP authentication, ensuring secure access to iSCSI targets.

For more details, refer to:

NetApp Documentation on iSCSI Configuration​ ( NetApp )​.

To clone a LUN from a SnapMirror destination volume for testing purposes, the volume clone create command should be used. This command creates a FlexClone volume from the SnapMirror destination, making the LUN within it accessible for testing without disrupting the original volume.

For more details, refer to:

NetApp Documentation on Volume Clone Create

NetApp Community Discussion on LUN Cloning

The engineer should first execute metrocluster check run to perform a current diagnostic validation of the MetroCluster configuration. NetApp documents that this command checks MetroCluster components and relationships and records any configuration errors. After the diagnostic completes, metrocluster check connection show displays the connection-specific results for MetroCluster IP nodes, including network connectivity checks and error information relating to ping, MTU, and storage connectivity. This directly addresses the requirement to verify backend network connections. metrocluster check cluster show focuses on cluster configuration results, while metrocluster check lif show focuses on LIF placement and related checks rather than the backend connections themselves. Relevant SAN ONTAP and MetroCluster topics include MetroCluster diagnostics, backend IP connectivity, configuration validation, inter-site connections, and post-installation verification.

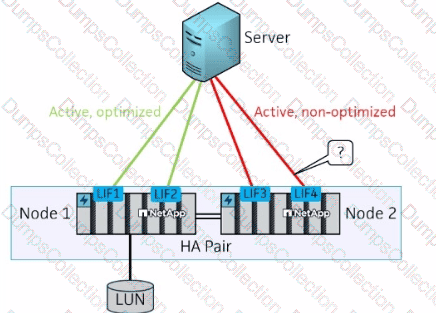

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

To ensure the best performance in an iSCSI SAN implementation:

Connect host and storage ports to the same switches: This minimizes latency and maximizes the efficiency of data paths by ensuring direct connections within the same network segment.

Configure Jumbo frames in the entire data path: Setting a larger Maximum Transmission Unit (MTU) size reduces the overhead for processing each packet, thus improving overall network performance. Ensuring Jumbo frames are configured end-to-end in the data path is crucial for optimal performance.

For further details, check:

NetApp Best Practices for iSCSI

NetApp Community Discussion on iSCSI Performance

NetApp Windows Host Utilities are used to configure Windows hosts correctly for ONTAP SAN storage and include support for Microsoft Multipath I/O configuration. During Host Utilities installation, multipathing support can be selected when multiple paths exist between the Windows server and the storage system. The package also configures required Windows registry and storage parameters so the host correctly handles ONTAP pathing behavior. Device Mapper Multipathing is primarily associated with Linux and is therefore inappropriate for Windows Server. An iSCSI target represents the storage endpoint and does not itself configure host multipathing. ANA is the NVMe multipathing mechanism and does not apply to an iSCSI LUN. Relevant SAN ONTAP topics include Windows Host Utilities, Microsoft MPIO, iSCSI host configuration, ALUA, redundant SAN paths, and Windows Server interoperability.
