Explanation

Correct Answer: Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers

*****************************************

>> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs.

>> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now.

>> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.

Explanation

Correct Answer: Create reusable assets, Make them discoverable so that LOB teams can self-serve and browse the APIs, Get active feedback and usage metrics.

*****************************************

Diagram, arrow Description automatically generated

Explanation

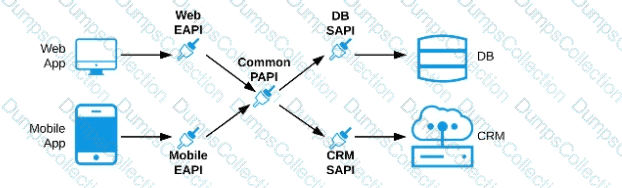

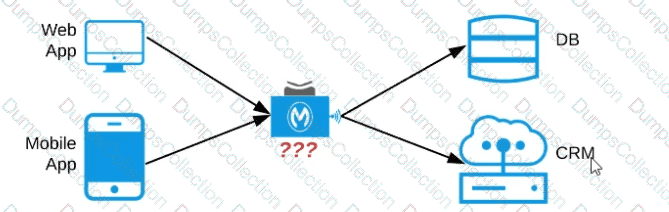

Correct Answer: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

*****************************************

As per MuleSoft's API-led connectivity:

>> Experience APIs should be built as per each consumer needs and their experience.

>> Process APIs should contain all the orchestration logic to achieve the business functionality.

>> System APIs should be built for each backend system to unlock their data.

Understanding Anypoint Monitoring and Its Capabilities:

Anypoint Monitoring provides comprehensive visibility into Mule applications, offering metrics and analytics such as request counts, response times, CPU utilization, memory usage, and other key performance indicators (KPIs). This tool is designed to help teams monitor API usage, troubleshoot issues, and optimize application performance.

Evaluating the Options:

Option A (Correct Answer): Anypoint Monitoring is the ideal tool for this requirement. It provides real-time insights into metrics such as the number of requests, response times, CPU utilization, and active API usage.

Option B (API Manager): API Manager focuses on API lifecycle management, including applying policies, managing contracts, and setting access controls. It does not provide performance monitoring or KPI tracking.

Option C (Runtime Alerts): Runtime Alerts can notify users of specific conditions, like high CPU usage, but they do not provide a full suite of metrics or insights over a given time period.

Option D (Functional Monitoring): Functional Monitoring focuses on functional testing of APIs rather than performance and usage metrics. It does not provide continuous KPI tracking.

Conclusion:

Option A is the correct answer. Anypoint Monitoring is the most suitable tool to track the specified metrics, providing detailed insights into API requests, response times, CPU usage, and active API counts.

For further details, refer to MuleSoft’s Anypoint Monitoring documentation on configuring dashboards and tracking performance metrics.

Understanding Circuit Breaker Policy:

A circuit breaker is a design pattern used to detect failures and prevent an application from continually trying to execute a failing operation. In this case, it will help improve response time and reduce demand on the downstream API.

The specified configuration includes conditions for opening, half-opening, and closing the circuit based on error rates over time:

Circuit Open: Triggered if there are more than 10 errors per minute for three consecutive minutes.

Circuit Half-Open: The circuit transitions to half-open if there is one error per minute.

Circuit Closed: The circuit closes if the error rate is less than one error per minute for five minutes.

Evaluating the Options:

Option A: Creating a custom policy with template expressions could work, but it would require custom development. Since the Anypoint Platform already has a Circuit Breaker policy available, this would be a less efficient and more complex solution.

Option B: Anypoint Monitoring alerts can be used for monitoring the API, but they do not provide circuit-breaking functionality. Additionally, implementing a retry strategy for the half-open state is not sufficient to achieve the required circuit breaker behavior.

Option C (Correct Answer): Adding the Circuit Breaker policy to the API instance on Anypoint Platform allows you to set up circuit-breaking conditions directly. This approach uses the built-in Circuit Breaker policy, where you can configure parameters such as error thresholds and time intervals to match the requirements. This solution is efficient, reliable, and leverages Anypoint’s out-of-the-box capabilities.

Option D: Implementing the strategy within a Mule application with a YAML configuration could be complex and less manageable. Additionally, it does not leverage Anypoint Platform’s built-in Circuit Breaker policy, which is more suited to this scenario.

Conclusion:

Option C is the correct choice, as it leverages Anypoint Platform’s Circuit Breaker policy. This solution allows for configuring thresholds and time intervals as specified, improving response time and reducing demand on the downstream API while utilizing Anypoint's managed policy feature.

Refer to MuleSoft’s documentation on implementing the Circuit Breaker policy in API Manager for detailed configuration guidance.

Explanation

Correct Answer: 8082

*****************************************

>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.

>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.

>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB

>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB

So, API invocations should be sent to port 8082 when calling this HTTPS based app.

Explanation

Correct Answer: When there is one CloudHub deployment of the API implementation to three CloudHub workers that must share the cache state.

*****************************************

Key details in the scenario:

>> Use the CloudHub Object Store via the Object Store connector

Considering above details:

>> CloudHub Object Stores have one-to-one relationship with CloudHub Mule Applications.

>> We CANNOT use an application's CloudHub Object Store to be shared among multiple Mule applications running in different Regions or Business Groups or Customer-hosted Mule Runtimes by using Object Store connector.

>> If it is really necessary and very badly needed, then Anypoint Platform supports a way by allowing access to CloudHub Object Store of another application using Object Store REST API. But NOT using Object Store connector.

So, the only scenario where we can use the CloudHub Object Store via the Object Store connector to persist the cache’s state is when there is one CloudHub deployment of the API implementation to multiple CloudHub workers that must share the cache state.

To accommodate the new requirement of allowing updates to existing quotes, the following actions should be taken:

Update the RAML Definition (Option C):

The RAML specification defines the structure and behavior of the API. Adding a new method (such as PUT or PATCH) for updating quotes requires modifying the RAML to include this new endpoint. This ensures the API specification is up-to-date and accurately reflects the new functionality.

Update the API Implementation (Option A):

Once the RAML is updated, the backend API implementation must also be modified to handle the new update requests. This could involve adding logic to process and validate update requests, connect to necessary backend resources, and apply the changes to existing quotes.

Explanation of Incorrect Options:

Option B (removing and creating new clients) is unnecessary; client applications can remain as they are, with no need for complete replacement.

Option D (deprecating existing versions) may not be required if backward compatibility is maintained.

Option E (adding a new policy) does not facilitate functional changes and is unrelated to implementing the update feature.

ReferencesFor more details on updating RAML definitions and API implementations, refer to MuleSoft’s API Design documentation on RAML and RESTful API practices​.

Explanation

Correct Answer: Manually provisioned customer-hosted runtime plane and customer-hosted control plane

*****************************************

There are two key factors that are to be taken into consideration from the scenario given in the question.

>> Company requires both data and metadata to be resided within the corporate firewall

>> Company would like to go with customer-hosted infrastructure.

Any deployment model that is to deal with the cloud directly or indirectly (Mulesoft-hosted or Customer's own cloud like Azure, AWS) will have to share atleast the metadata.

Application data can be controlled inside firewall by having Mule Runtimes on customer hosted runtime plane. But if we go with Mulsoft-hosted/ Cloud-based control plane, the control plane required atleast some minimum level of metadata to be sent outside the corporate firewall.

As the customer requirement is pretty clear about the data and metadata both to be within the corporate firewall, even though customer wants to move to production as quickly as possible, unfortunately due to the nature of their security requirements, they have no other option but to go with manually provisioned customer-hosted runtime plane and customer-hosted control plane.

Explanation

Correct Answer: Convince the development team of the product API to adopt the API data model of the Order API such that integration logic of the Order API can work with one consistent internal data model

*****************************************

Key details to note from the given scenario:

>> Power relationship between Order API and Product API is customer/supplier

So, as per below rules of "Power Relationships", the caller (in this case Order API) would request for features to the called (Product API team) and the Product API team would need to accomodate those requests.
