In the context of a linear process, implemented with REFramework, the process will enter the Get Transaction Data state only 1 time. This is because the Get Transaction Data state is responsible for fetching the next transaction item from the data source and assigning it to the TransactionItem variable. In a linear process, there is only one transaction item that represents the entire process, and it is fetched at the beginning of the execution. Therefore, the process will enter the Get Transaction Data state only once, and then move to the Process Transaction state, where the main logic of the process is executed. The process will not return to the Get Transaction Data state, unless there is an exception or a retry in the Process Transaction state. References: [Robotic Enterprise Framework], [REFramework for Linear Processes]

In the Robotic Enterprise Framework (REFramework), best practices for logging at the " Information " level suggest recording entries that are informative about the progress of the automation. This would typically include:

The start and end of a transaction.

Status updates of a transaction.

The result of an operation, like a successful data retrieval or submission.

From the provided options, the one that aligns best with this approach would be:

B. Whenever data is fetched from external sources.

This action is a significant step in most automation processes because it usually represents a point where the robot interacts with systems outside of its immediate control, and it ' s important to have a record that this step has been completed successfully. It provides a clear and traceable log entry that helps in understanding the workflow ' s progress and is useful for audit trails and troubleshooting.

Logging every time an argument or value is used (C) would be excessive and not practical for production-level processes. Logging every exception (A) and error on a Queue Item (D) would typically be done at a " Warning " or " Error " level, not " Information " .

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.

An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.

A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

In a UiPath REFramework project, the primary purpose of using Custom Log Fields is to add specific contextual information to log messages that are relevant to the automation process. Custom Log Fields are created using the Add Log Fields activity, which adds custom log fields to the Robot Execution Logs. The new log fields created via this activity are added for every Log Message execution throughout the entire workflow, unless a Remove Log Fields activity is used. Custom Log Fields can help you to maintain contextual insights within log messages, such as the business process name, the transaction data, the transaction status, or any other information that can help you to monitor, analyze, or debug the automation process. Custom Log Fields can also enhance the readability and consistency of log messages, as well as facilitate log filtering and reporting.

A State Machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered. A State Machine consists of four primary components:

•States: These are the nodes that represent the possible situations or conditions of the automation. Each state can have one or more activities inside it that define the behavior of the automation in that state. There are two types of states: State and Final State. A State Machine must have one initial state and one or more final states.

•Triggers: These are the events or conditions that cause the automation to enter a state. A trigger can be an activity, a variable, or an argument that is executed or evaluated before entering a state. For example, a Click activity can be a trigger for entering a state that performs some actions after clicking a button.

•Transitions: These are the arrows or branches that connect the states and define the flow of the automation. A transition can have a condition that determines whether the automation can move from one state to another. For example, a Boolean expression can be a condition for a transition that checks if a certain condition is true or false before moving to the next state.

•Actions: These are the activities or sequences that are executed when the automation moves from one state to another. An action can be performed before or after the transition, depending on the type of the transition. For example, a Log Message activity can be an action that logs a message when the automation exits a state.

You can find out more about state machines on the Studio - State Machines - UiPath Documentation Portal or in the official Workflow Foundation documentation.

The conditional statement attempts to convert all variables to Double and then adds them up to compare against 38.30. However, the string " 9.1 " cannot be directly converted to a Double with CDbl because it is not in a correct format that can be recognized as a number (it might be due to the fact that it ' s a string with a comma instead of a period for a decimal point, depending on the culture settings of the system). This will cause a runtime error during the execution of the conditional statement.References:

Microsoft Visual Basic Guide: Type Conversion Functions

In UiPath, the four job types according to the place of execution and robot impersonation are Foreground unattended, Background unattended, Attended, and Development. These job types differentiate the automation tasks based on whether they require user interaction (Attended), can run in the background without user intervention (Background unattended), are designed for development andtesting purposes (Development), or are unattended tasks that require a virtual environment (Foreground unattended).References:

UiPath Orchestrator Guide: Job Types

The TransactionNumber is incremented only in the SetTransactionStatus.xaml workflow, which is invoked at the end of each transaction. This workflow updates the status of the current transaction item in Orchestrator and increments the TransactionNumber by one. The TransactionNumber is used to keep track of the number of transactions processed by the robot and to get the next transaction item from the queue. References: [SetTransactionStatus.xaml]

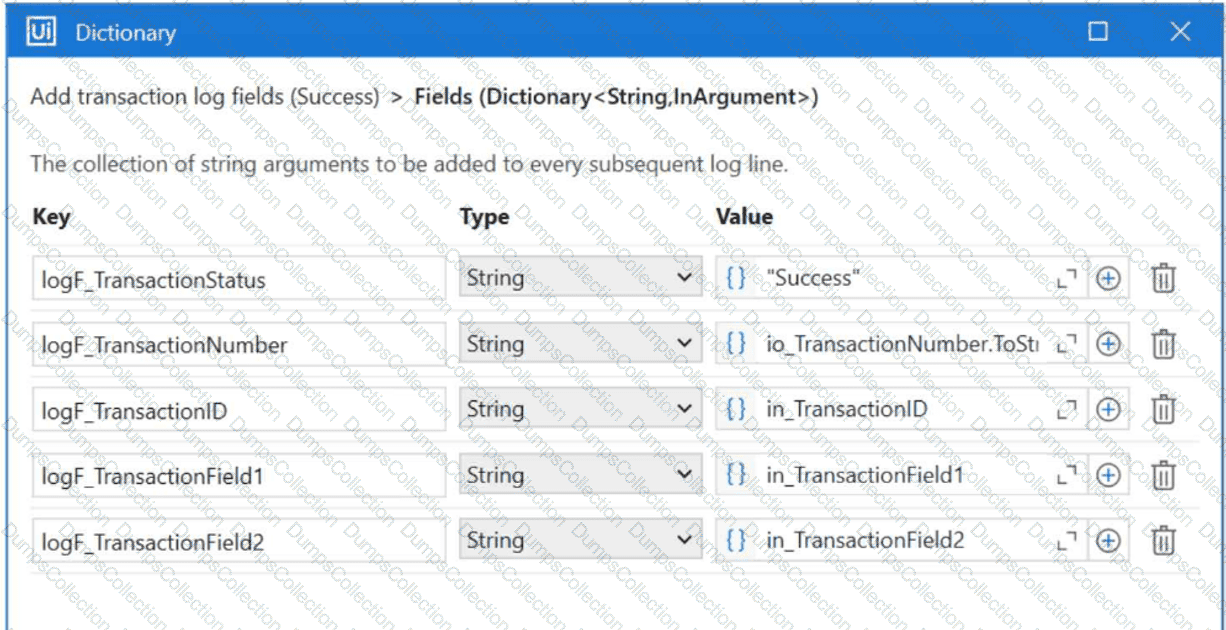

The correct answer is A . In UiPath, the Add Log Fields activity creates custom log fields that are attached to Robot execution logs. The official UiPath documentation specifies that fields created by this activity are added to every Log Message execution throughout the workflow unless they are explicitly removed with Remove Log Fields . The Log Message documentation also confirms that when Add Log Fields activities exist before a Log Message activity, those additional custom fields are appended to the produced log entry.

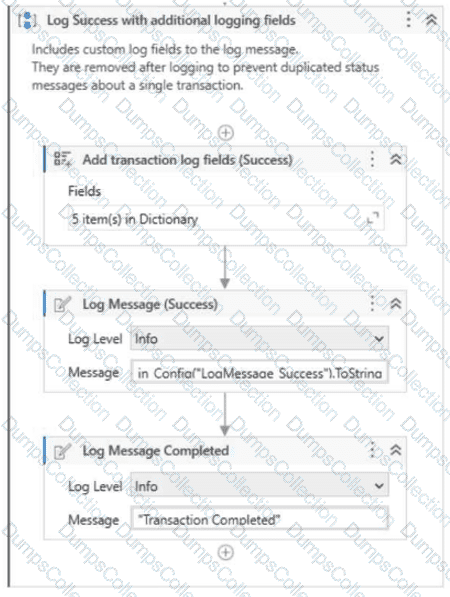

In this scenario, the developer removed the Remove Log Fields activity from SetTransactionStatus. Therefore, the custom fields added by Add transaction log fields (Success) remain active when the later Log Message Completed activity executes. Since the transaction is successful, logF_TransactionStatus is " Success " , io_TransactionNumber.ToString becomes " 1 " , and the remaining fields receive the provided argument values: transaction ID " 07/18/2023 10:27:29 " , field 1 " UI235-80 " , and field 2 " Update Request " . Option B would apply only if the transaction-specific log fields had been removed before the completed message. Options C and D are incorrect because the input arguments are populated, so the fields are neither empty nor blank strings.

Reference topics: Debugging and Logging , Add Log Fields , Remove Log Fields , Log Message , REFramework SetTransactionStatus .
