VMware Advanced VMware Cloud Foundation 9.0 Automation 3V0-21.25 Exam Dumps: Updated Questions & Answers (April 2026)

To meet the requirements of a standardized, governed microservices environment, VCF 9.0 Automation provides several key features. First, Lease Policies are the primary tool for minimizing "environment sprawl" and enforcing automated decommissioning. By assigning a lease, the administrator ensures that resources are automatically reclaimed after a set period unless a renewal is explicitly granted, preventing "forgotten" deployments from consuming expensive capacity. Second, cloud-init (or the similar cloudConfig stanza) allows for the standardized, post-deployment configuration of the VM OS, such as installing security agents or company-specific developer tools, ensuring every environment is consistent from "Day 0". Finally, predefined firewall rules (often delivered via NSX VPC Security Profiles) ensure that newly deployed environments adhere to the organization's security standards. This prevents developers from manually (and potentially incorrectly) configuring networking, thereby automating the "Secure-by-Design" requirement within the self-service catalog item.

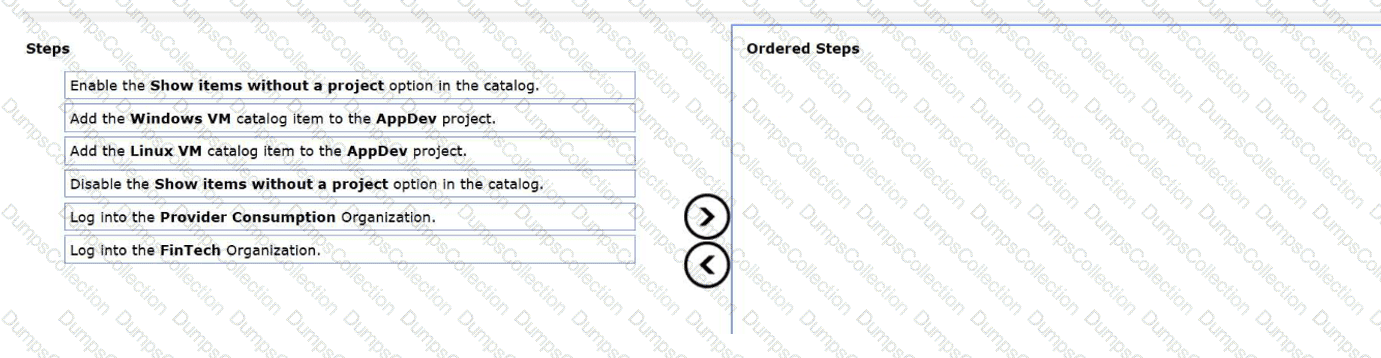

To share a specific catalog item from the Provider Consumption Org (PCO) to a tenant organization and project, follow these ordered steps:

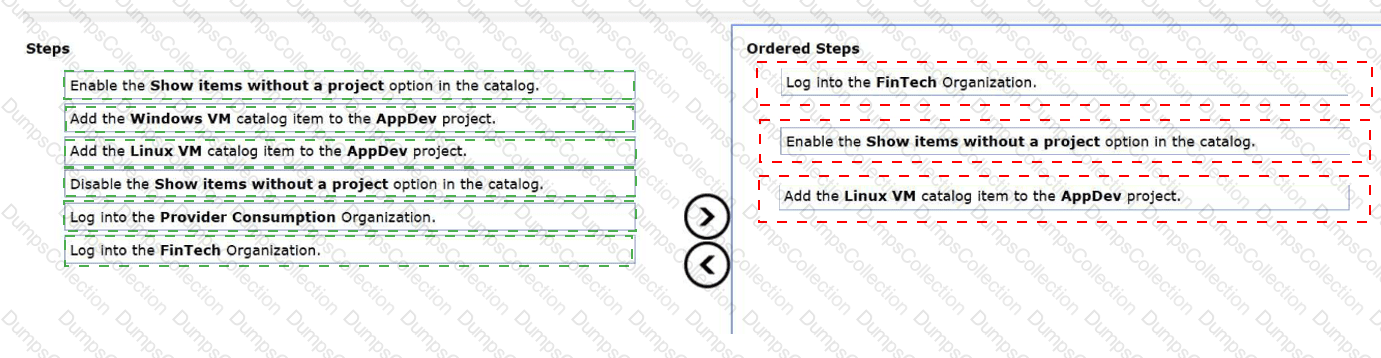

Ordered Steps

Log Into the FinTech Organization.

Enable the Show items without a project option in the catalog.

Add the Linux VM catalog item to the AppDev project.

In VMware Cloud Foundation (VCF) 9.0, catalog items from the Provider Consumption Org (PCO) can be shared across multiple tenant organizations, such as the FinTech organization, to promote infrastructure standardization. To manage these shared items, the administrator must first Log into the FinTech Organization portal directly. Within this context, catalog items shared from the provider do not initially have a project association within the local tenant workspace.

Therefore, the administrator must Enable the "Show items without a project" option in the catalog view. This setting reveals global or provider-shared items that are available to the organization but have not yet been entitled to a specific local group. Once visible, the administrator can perform the entitlement task by selecting the specific Linux VM catalog item and adding it to the AppDev project. This step creates the final link in the role-based access control (RBAC) chain, ensuring that only users assigned to the AppDev project can request and deploy the Linux virtual machine according to the organization's governance policies. This workflow allows providers to maintain "golden" templates at the fleet level while granting tenants the flexibility to assign those resources to their own internal development teams.

In VMware Cloud Foundation 9.0, multi-tenancy is structured around the concept of Organizations. To meet the requirement of hosting multiple companies within a single private cloud with strict segregation and governance, the administrator must utilize the VMApps Organization model. Unlike the AllApps model, which is highly optimized for modern containerized and VPC-driven workloads, the VMApps Organization is specifically designed for environments requiring traditional VM-centric segregation and access control while sharing underlying physical infrastructure. Enabling a Supervisor cluster on the vCenter instance is a foundational prerequisite for these advanced automation capabilities. The Supervisor provides the necessary integration between the vSphere compute layer and the VCF Automation control plane, allowing for the instantiation of the Namespace and Organization constructs that enforce RBAC and resource quotas. By configuring a VMApps Organization per company, the administrator ensures that each tenant has a distinct administrative boundary, private catalog, and isolated resource allocation, effectively satisfying the requirements for hard tenancy within a consolidated private cloud environment.

In the architectural framework of VCF 9.0's AllApps (AIIApps) organization, the Region is the fundamental resource provider construct. A Region represents a logical grouping of one or more vSphere Supervisor clusters that share a common NSX Manager instance. It is at the Region level that the cloud provider discovers and identifies the available infrastructure capacity—including Kubernetes namespaces, VM classes, and storage policies—that can then be allocated to a tenant organization. When an administrator creates a Region in the Provider Management Portal, they are effectively defining a "pool" of resources that spans physical workload domains, allowing the automation engine to intelligently place workloads across different Supervisors as needed. While a Project is used for user-level resource entitlement and a Cloud Zone is used in the older VMApps model, the Region is the mandatory infrastructure anchor for any modern AIIApps organization seeking to consume Supervisor-based services in VCF 9.0.

VCF 9.0 supports both Single-Zone and Multi-Zone Supervisor cluster deployments. In a single-zone deployment, all Supervisor control plane VMs and worker nodes reside within a single logical and physical fault domain (a single vSphere cluster). Consequently, the cluster will not have zone-level fault isolation. If the underlying hardware, power, or top-of-rack switch for that specific zone fails, the entire Supervisor instance and all hosted workloads (VMs and Pods) will go offline. Multi-zone clusters, by contrast, distribute nodes across three distinct zones to ensure that the control plane and workloads can survive the complete loss of one zone. While a single-zone cluster is suitable for non-critical development or testing, it represents a significant risk for production environments that require the high-availability and fault-tolerance features inherent to the VCF 9.0 multi-zone architecture.

To achieve the goal of "quick and consistent" deployments with "no manual configuration," the administrator must leverage preconfigured catalog items. In VCF 9.0 Automation, this is achieved by creating blueprints where all variables (such as CPU, RAM, and network segments) are either hardcoded or driven by hidden logic, and then publishing these as Catalog Items with specific Custom Forms. By providing blueprints with all required inputs preconfigured, the platform eliminates the "request-time" complexity that leads to configuration errors or environment drift. This approach ensures that the development team only sees a "click-to-deploy" interface for approved application stacks. Unlike Option A or B, which introduce user-driven variability, or Option C, which requires manual Git interaction, this model provides a highly governed, "golden-image" style of infrastructure consumption that aligns perfectly with the requirement for zero manual configuration by the end-user.

In VMware Cloud Foundation 9.0, the Virtual Private Cloud (VPC) model utilizes a profile-based approach to standardize and automate network and security services for tenants. The Connectivity Profile is the primary construct used to define the "boundary" of the VPC, determining how the VPC connects to the regional Transit Gateway and whether it has access to external networks or remains isolated. The Security Profile allows administrators to define baseline security postures, such as distributed firewall (DFW) rules and group memberships, that are automatically applied to workloads within the VPC. Finally, the Service Profile is used to enable and configure additional network services, such as Load Balancing or NAT, within the VPC environment. By using these three profile types, the VCF Automation engine can provision consistent, "secure-by-default" network spaces for different organizations or projects, significantly reducing the manual configuration required compared to traditional NSX-T segment management.

In VMware Cloud Foundation 9.0, branding is managed within the Organization Portal to allow for tenant-specific customization. To meet the specific requirement that branding only appears after a user has authenticated, the administrator must navigate to the Branding section of the portal. The critical configuration step is to Disable the Enable Login and Logout Page Branding setting. By default, if this is enabled, the custom logos and colors are displayed on the public-facing login screen. Disabling it ensures that the generic VCF/Broadcom login page is presented to the public, and the custom tenant identity is only loaded into the browser session once the user’s organization context is established through successful login. This is a common requirement for service providers who want to maintain a consistent entry point for all users while providing a personalized "white-labeled" experience once the user is inside their specific environment.

VCF 9.0 introduces a more granular RBAC model to support complex operational requirements. To meet the first requirement regarding cluster lifecycle management, the administrator must assign the Cluster Administrator role to the operations group. This role provides the specific permissions needed to perform actions such as scaling, patching, and modifying the configuration of Supervisor or TKG clusters. By scoping this at the cluster level (or within the project containing those clusters), the operations group is empowered to maintain the resources without having broad administrative access to other organizational settings. For the second requirement, the Security Administrator role in NSX must be assigned to the network administrators group. By scoping this to the project, the network admins can manage distributed firewall rules, gateway policies, and security profiles specific to that project’s VPCs while being prevented from interfering with the compute lifecycle managed by the operations team. This separation of duties is essential for large-scale enterprise deployments to prevent unauthorized security changes or accidental cluster disruptions.

To automate the export or backup of Blueprints (Cloud Templates) in VCF 9.0, the Event Broker Service (EBS) is the required mechanism. While Velero (Option A) is used for backing up vSphere Pods and ArgoCD (Option C) is for continuous delivery, neither is designed to "listen" for internal automation metadata changes. By creating an Event Broker Subscription mapped to the "Blueprint Released" or "Template Version Created" topic, the administrator can trigger an action every time a developer finalizes a new version of their infrastructure code. This triggered action (typically an ABX or Orchestrator task) can then programmatically retrieve the YAML definition of the blueprint via the VCF Automation API and push it to an external third-party storage solution or a secondary Git repository for long-term archival and backup. This ensures that the organization maintains a complete, off-appliance history of its infrastructure designs, satisfying auditing and disaster recovery requirements.
