Comprehensive and Detailed Explanation From Exact Extract:

Cardiac tamponade occurs when fluid accumulation in the pericardial space increases intrapericardial pressure, restricting ventricular filling and reducing cardiac output. A hallmark clinical feature is hypotension due to decreased stroke volume and cardiac output.

Jugular venous pressure is typically elevated (not decreased) because of impaired right heart filling. Tachycardia, not bradycardia, is usually present as a compensatory response. Blood pressure tends to be low or normal, not hypertensive.

This pathophysiology and clinical presentation are well documented in adult echocardiography literature and clinical cardiology textbooks, where tamponade is diagnosed with signs such as right atrial and ventricular diastolic collapse and associated clinical hypotension and elevated venous pressures【16:Textbook of Clinical Echocardiography, 6e†p.280-285】【12:ASE Pericardial Disease Guidelines†p.300-305】.

Comprehensive and Detailed Explanation From Exact Extract:

The apical two-chamber echocardiographic view displays the inferolateral wall (also called posterior lateral). The arrow points to this inferolateral segment, which is located inferiorly and laterally in the left ventricle.

Anteroseptum and inferoseptum relate to the interventricular septum, while anterolateral is the anterior lateral wall, opposite the inferolateral wall. Correct regional wall motion assessment is essential for ischemic disease evaluation.

This identification and terminology are described in ASE stress echocardiography and chamber quantification guidelines【12:ASE Stress Echocardiography Guidelines†p.310-315】【16:Textbook of Clinical Echocardiography, 6e†p.380-385】.

Frame rate in echocardiography is affected by the sector width, depth, and line density. Narrowing the sector width reduces the number of scan lines per frame, thus increasing the frame rate and temporal resolution. This improves the ability to capture rapid cardiac motion.

Decreasing overall gain affects image brightness, not frame rate. Increasing dynamic range increases the number of gray shades, which may slightly decrease frame rate due to processing load. Increasing transducer frequency improves resolution but reduces penetration depth and can decrease frame rate due to longer pulse duration.

This principle is emphasized in echocardiography physics and instrumentation texts and ASE imaging guidelines【16:Textbook of Clinical Echocardiography, 6e†p.40-45】【12:ASE Imaging Protocols†p.10-15】.

Comprehensive and Detailed Explanation From Exact Extract:

A continuous murmur is a heart murmur that occurs throughout both systole and diastole. Among the options, a ruptured sinus of Valsalva aneurysm produces a continuous murmur due to persistent flow between the aorta and a cardiac chamber (usually the right atrium or ventricle) during both systole and diastole.

Aortic regurgitation causes a diastolic murmur, mitral stenosis causes a diastolic murmur, and a muscular ventricular septal defect typically causes a holosystolic murmur but not continuous.

Ruptured sinus of Valsalva aneurysm causes a continuous shunting of blood, resulting in the characteristic continuous murmur, often described as “machinery-like.”

This clinical correlation is covered in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root and Sinus of Valsalva Pathology【20:420-425†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The suprasternal long axis window is best accessed with the patient in the supine position with the neck extended. To optimize image quality, instructing the patient to turn their head slightly toward the left side moves the trachea and clavicle away from the ultrasound beam path, allowing better visualization of the aortic arch and great vessels.

Moving the probe inferior to the sternum accesses the subxiphoid window rather than suprasternal. Left lateral decubitus improves parasternal and apical windows but not suprasternal. Rotating the transducer indicator toward the patient's right shoulder would change the imaging plane but is not a primary method to improve image quality.

This technique is highlighted in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Windows and Acoustic Access【20:90-95†Textbook of Clinical Echocardiography】.

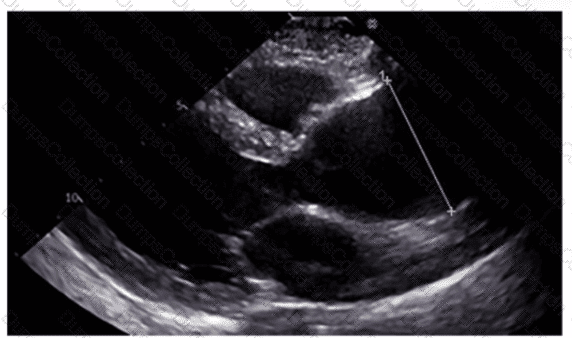

The echocardiographic image shows measurement of the ascending aorta, identified by its position above the aortic valve and before the arch vessels. The ascending aorta is a critical region assessed for dilation or aneurysm.

The sinus of Valsalva refers to the dilated portion just above the aortic valve cusps, while the aortic root includes the annulus, sinuses, and sinotubular junction. The descending aorta is posterior and visualized in other windows.

This measurement and its importance are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Root and Ascending Aorta Evaluation【20:380-385†Textbook of Clinical Echocardiography】.

In cardiac tamponade, there is a characteristic reciprocal respiratory variation in transvalvular flow velocities due to ventricular interdependence and impaired cardiac filling. During expiration, the intrathoracic pressure increases, which leads to decreased right ventricular filling and thus decreased transtricuspid flow velocity. Simultaneously, left ventricular filling increases, causing an increase in transmitral flow velocity.

Therefore, during expiration, the transmitral gradient increases while the transtricuspid gradient decreases. This phenomenon reverses during inspiration, where transtricuspid flow increases and transmitral flow decreases. These respiratory variations are diagnostic hallmarks of tamponade physiology and help distinguish it from other conditions.

This principle is illustrated in Doppler echocardiographic studies of ventricular inflow and is described with diagrams in the "Textbook of Clinical Echocardiography, 6e" (Chapter 10: Pericardial Disease), highlighting the changes in transmitral and transtricuspid velocities during the respiratory cycle in tamponade .

Comprehensive and Detailed Explanation From Exact Extract:

The P wave on the ECG corresponds to atrial depolarization, which precedes atrial contraction (atrial systole). On echocardiography, atrial contraction can be observed as the atrial "kick," contributing to ventricular filling during late diastole.

Ventricular contraction (QRS complex) and ventricular relaxation (T wave) correspond to other phases of the cardiac cycle. Atrial relaxation occurs during ventricular systole but is not represented by the P wave.

This timing relationship is critical for correlating echocardiographic Doppler inflow patterns, such as the late diastolic A wave, with the ECG. These concepts are outlined in the foundational echocardiography references, including ASE guidelines and the "Textbook of Clinical Echocardiography"【16:Textbook of Clinical Echocardiography, 6e†p.150-155】【12:ASE Echocardiography Guidelines†p.50-55】.

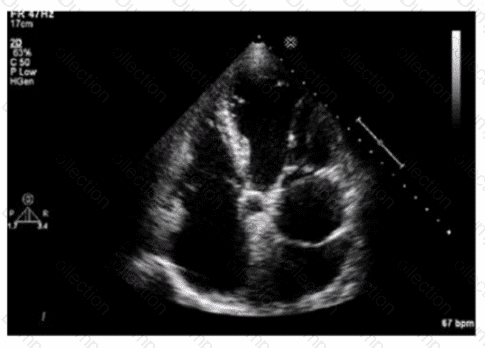

The echocardiographic image shows a mobile, highly echogenic, mesh-like structure within the right atrium consistent with the Chiari network. The Chiari network is an embryologic remnant of the right valve of the sinus venosus, appearing as a fenestrated, reticulated membrane that is usually thin and mobile, found near the orifice of the inferior vena cava or the coronary sinus.

This structure is benign and often an incidental finding but can be confused with thrombus or atrial tumors. Unlike left atrial thrombus, which appears as a more solid, immobile mass often located in the left atrial appendage, the Chiari network is mobile and located in the right atrium. Cor triatriatum is a rare congenital membrane dividing the left atrium into two chambers and appears differently on echocardiography. Artifact refers to non-anatomic echoes which do not persist or move consistently.

Recognition of Chiari network is important to avoid misdiagnosis, and its characteristics are well described in echocardiography literature such as the "Textbook of Clinical Echocardiography" and ASE imaging guidelines【16:Textbook of Clinical Echocardiography, 6e†p.400-402】【12:ASE Guidelines on Cardiac Masses†p.150-155】.

Takotsubo cardiomyopathy, also known as stress-induced cardiomyopathy or "broken heart syndrome," predominantly affects postmenopausal women (usually older than 50 years) and often presents with acute chest pain and ST-segment elevation on the ECG mimicking acute myocardial infarction. However, coronary angiography reveals normal or non-obstructive coronary arteries.

Echocardiographically, Takotsubo cardiomyopathy is characterized by transient left ventricular systolic dysfunction with a typical pattern of apical ballooning and basal hyperkinesis. The wall motion abnormality extends beyond a single coronary artery territory, differentiating it from ischemic cardiomyopathy.

The diagnosis is supported by the clinical presentation, typical echocardiographic findings, and exclusion of obstructive coronary artery disease. The condition is usually reversible over days to weeks.

This is extensively described in the "Textbook of Clinical Echocardiography, 6e" (Chapter 8: Coronary Artery Disease and Takotsubo Syndrome), which highlights the typical patient demographics, presentation, echocardiographic features, and prognosis .
