Cisco Designing Cisco Enterprise Wireless Networks (ENWLSD) 300-425 Exam Dumps: Updated Questions & Answers (October 2025)

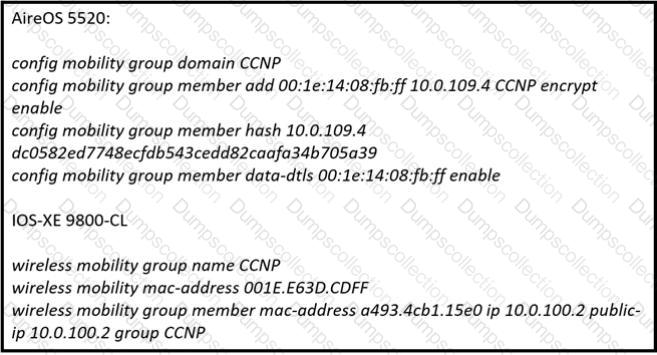

The data path issue between the Cisco Catalyst 9800-CL and AireOS 5520, despite an active control path, is likely due to encrypted mobility being enabled on the AireOS 5520. Encrypted mobility requires both peers to have a matching configuration for encryption, which includes proper certificates and shared secrets. If there’s a mismatch, the control path may be established, but the data path can fail due to the inability to establish an encrypted tunnel.

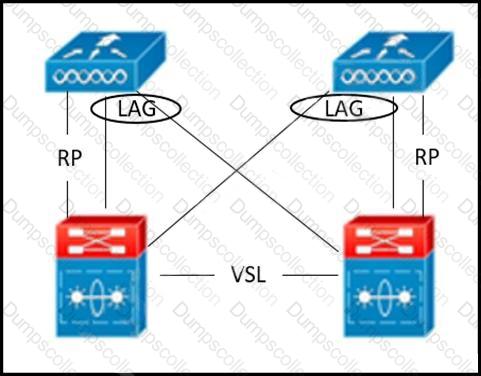

The Virtual Switching Link (VSL) is essential for communication between the active and standby Wireless LAN Controllers (WLCs) in a Stateful Switch Over (SSO) setup. If the VSL goes down, it can lead to a split-brain scenario where both WLCs assume they are active, causing network disruptions and inconsistencies in client handling. References: Designing Cisco Enterprise Wireless Networks (ENWLSD 300-425) Official Cert Guide.

Typically, a Cisco workgroup bridge can support up to 20 wired client connections. This allows for a reasonable number of devices to be connected while maintaining performance.

When designing a wireless network for diverse clients, it’s crucial to ensure that the network will be reliable for all users. Therefore, surveys should be conducted with the client that has the worst RF characteristics, as indicated in option D. This approach ensures that the network is designed to support even the weakest client, thereby providing a consistent experience for all users.

https://documentation.meraki.com/MR/WiFi_Basics_and_Best_Practices/Conducting_Site_Surveys_with_MR_Access_Points

 For a WLAN design that supports services like internet, email, voice, and database access, a signal strength of -67 dBm is considered good for voice and streaming services. A 25-dB SNR (Signal-to-Noise Ratio) is also desirable for high-quality voice and video applications, and a maximum of 1 percent packet loss is acceptable to ensure reliable connectivity and service quality.

https://www.cisco.com/c/en/us/support/docs/wireless/5500-series-wireless-controllers/116057site-survey-guidelines-wlan-00.html

 The Cisco 8540 Wireless Controller is designed for large enterprise and high-density environments. It has the capacity to manage up to 6000 access points, making it suitable for a multicampus architecture that needs to accommodate 4500 access points. Its high availability features ensure that all access points can be supported on one controller setup with minimal downtime.

 The Cisco Aironet 3800 Series APs support mGig, which allows for higher throughput over existing cabling. However, the maximum cable length that supports 5G operation is limited by the quality of the cable and signal attenuation. Category 5e cabling can support 5G operation up to a length of 130 meters, which is within the acceptable range for maintaining the required signal integrity for 5G speeds.

Voice services on a wireless network require a strong and stable signal, as well as low interference and retransmission rates. An RSSI (Received Signal Strength Indicator) of at least -67 dBm is considered the minimum for acceptable voice quality, and -65 dBm is even better, providing a buffer for signal fluctuation. A noise floor of -87 dBm would be too high and could interfere with signal clarity. Retransmission rates should be kept as low as possible; 15% or below is a good target to ensure efficient communication.

References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Band Select is a feature on Cisco WLCs that encourages dual-band capable clients to connect to the less congested 5 GHz spectrum. It works by delaying the response to clients’ probes on the 2.4 GHz band, making the 5 GHz band more attractive to the client devices.

 Cisco FastLocate technology is part of the Cisco Hyperlocation solution, which enhances location tracking accuracy and refresh rates. Implementing Cisco FastLocate technology can address issues with refresh rates for location updates in a custom mobile app by increasing the number of location data points captured, thus providing more frequent and accurate location updates.

References := AP4800 Hyperlocation Deployment Guide - Cisco
