Internet Gateway Requirement:

For an Elastic IP (EIP) to be assigned to an instance's primary ENI, the VPC must have an Internet Gateway (IGW) attached. The IGW enables the VPC to communicate with the internet, allowing the EIP to function properly (Option C).

Process of Assigning EIP:

Once the Internet Gateway is attached to the VPC, the EIP can be successfully assigned to the primary ENI of the FortiGate VM, providing it with internet access.

Other Options Analysis:

Option A is incorrect because the primary ENI is already in a public subnet.

Option B is not necessary and may not solve the issue without an attached Internet Gateway.

Option D is partially correct about the routing table but does not address the primary issue of needing an Internet Gateway.

References:

AWS Elastic IP Documentation:Elastic IP

AWS Internet Gateway:Internet Gateway

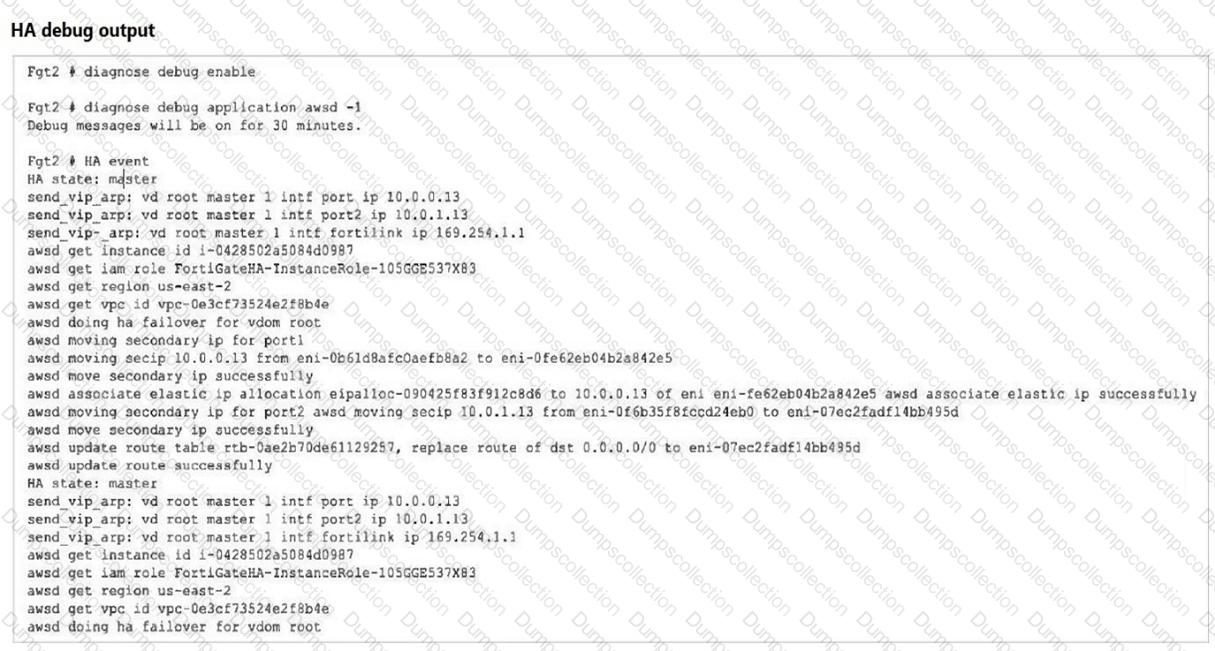

HA Event and Failover:

The debug output indicates that a failover event occurred and the secondary instance (Fgt2) is now taking over as the master.

Elastic IP Association:

The debug output shows the process of moving the Elastic IP (eipalloc-090425f83f912c8d6) to the new master instance. This involves associating the Elastic IP with the appropriate network interface (eni) of the new master.

Specific IP Address Association:

The Elastic IP is specifically associated with port1 of Fgt2. The message "associate elastic ip eipalloc-090425f83f912c8d6 to 10.0.0.13 of eni eni-0f6b35f8fccd24eb0" indicates that the Elastic IP is now linked to the primary IP address (10.0.0.13) on port1 of the new master.

Other Options Analysis:

Option A is incorrect because the routing table update details are not explicitly stated.

Option C is incorrect because the IP address association mentioned relates to an Elastic IP, not eni-0b61d8afc0aefb8a2.

Option D is incorrect because it specifically mentions port2 for the Elastic IP association, which is not indicated in the debug output.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Elastic IP Documentation:Elastic IP

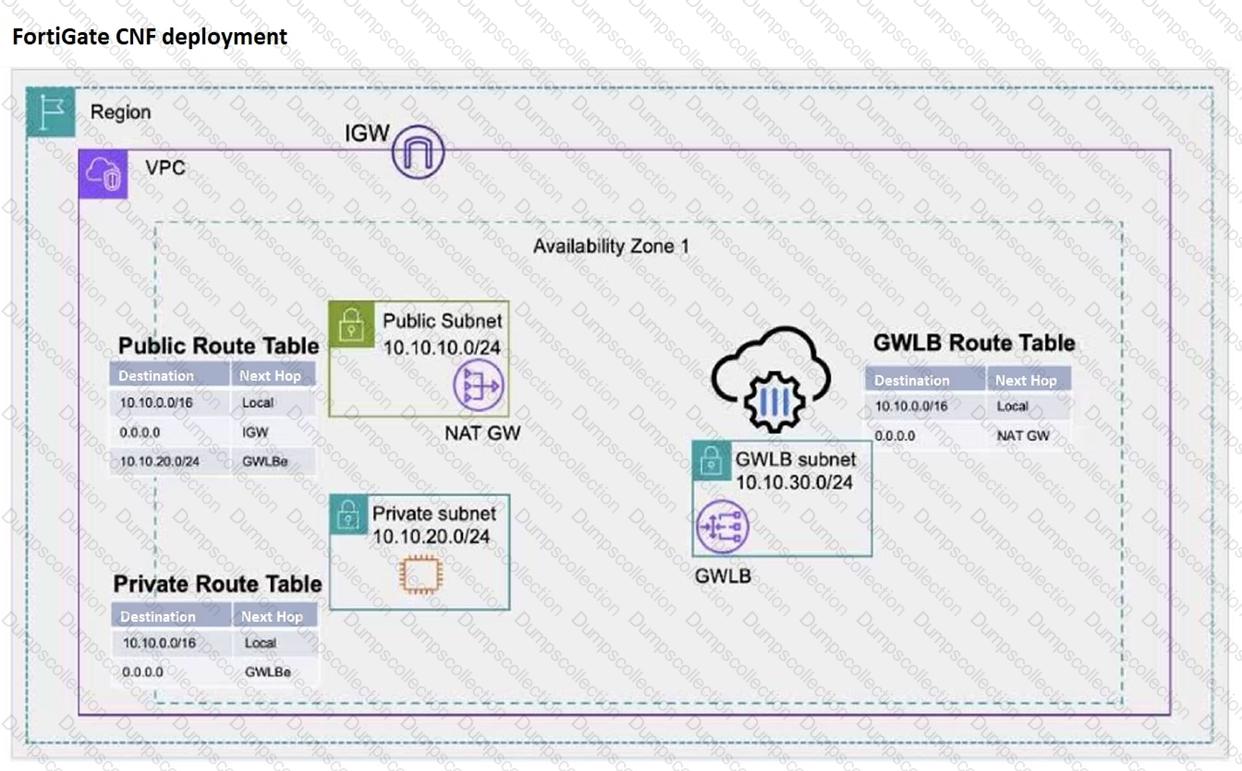

Understanding the Architecture:

The architecture includes an EC2 instance in a private subnet, a Gateway Load Balancer Endpoint (GWLBe), a NAT Gateway (NAT GW), and an Internet Gateway (IGW).

Route Tables and Routing:

The private route table for the subnet containing the EC2 instance has a route pointing to the GWLBe for internet-bound traffic.

The public route table for the subnet containing the NAT Gateway has routes to the IGW.

Traffic Flow Analysis:

Traffic initiated from the EC2 instance destined for the internet will first be routed to the GWLBe as per the private route table.

The GWLBe will forward the traffic to the NAT Gateway.

The NAT Gateway will then route the traffic to the IGW, which finally sends the traffic to the internet.

Comparison with Other Options:

Option A suggests direct routing to the NAT GW from the EC2 instance, which is incorrect.

Option B incorrectly states there is no route to the internet in the private route table.

Option D suggests direct routing from GWLBe to the internet, which is not the case.

References:

AWS Documentation on Route Tables:AWS Route Tables

Gateway Load Balancer Overview:AWS Gateway Load Balancer

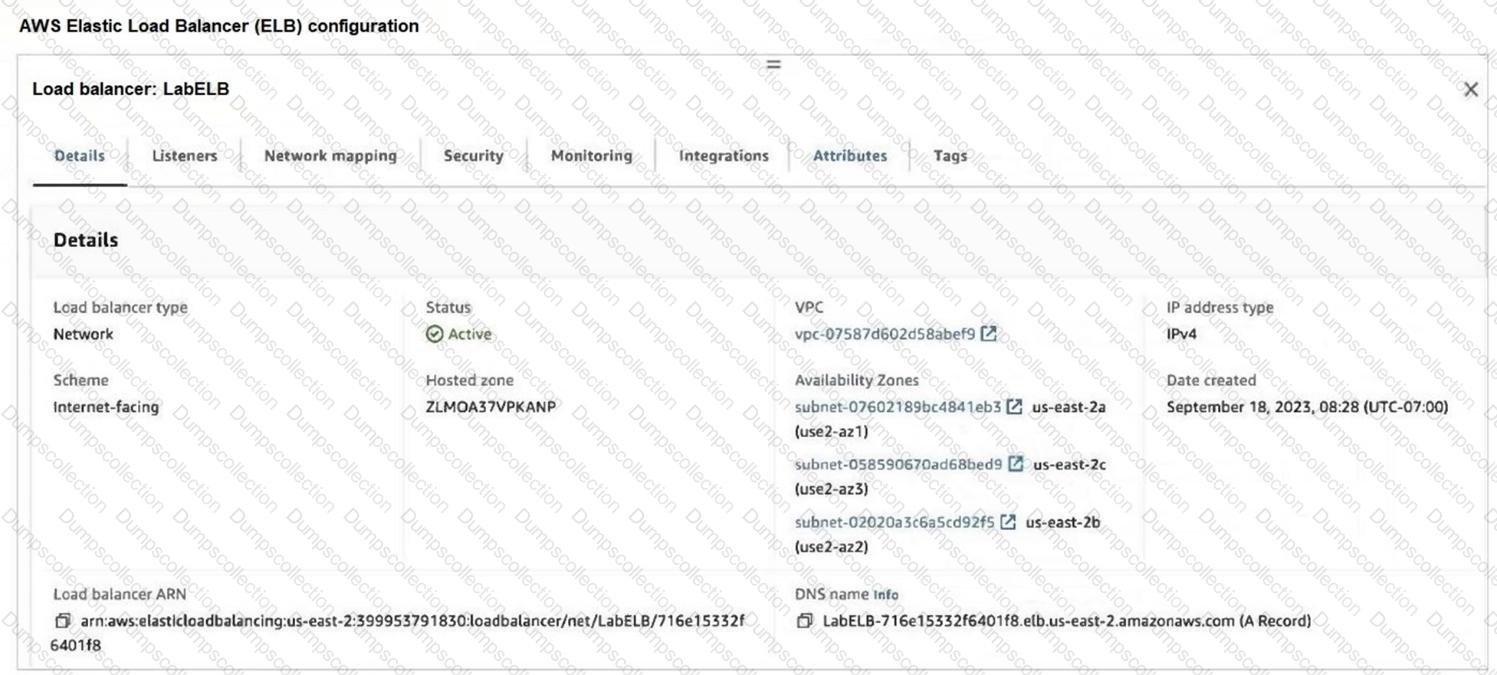

Load Balancer Configuration Overview:

The provided configuration indicates that the ELB is an internet-facing load balancer.

Multi-AZ Load Balancing:

The load balancer is configured to distribute traffic across multiple availability zones (A, B, and C), ensuring high availability and fault tolerance (Option A).

Accessing Targets via DNS:

The DNS name of the load balancer (LabELB-716e15332f6401f8.elb.us-east-2.amazonaws.com) can be used to reach the targets behind the ELB, facilitating traffic routing to the appropriate instances (Option C).

Comparison with Other Options:

Option B is incorrect as the ARN is not used to access the load balancer directly.

Option D is incorrect because the load balancer is configured for internet-facing traffic, not just internal VPC traffic.

References:

AWS Elastic Load Balancer Documentation:AWS ELB

Understanding ELB DNS:AWS ELB DNS

Network Load Balancer:

Deploying a network load balancer ensures that incoming traffic is distributed across multiple web servers, providing high availability andredundancy. This setup helps in managing traffic efficiently and maintaining service uptime even if some servers fail (Option A).

Multiple Availability Zones:

Deploying web servers in multiple availability zones (AZs) enhances fault tolerance and availability. If one AZ goes down, servers in other AZs can continue to handle the traffic, ensuring the web application remains accessible (Option D).

Other Options Analysis:

Option B is incorrect because NAT Gateways are used to provide internet access to instances in private subnets, not to make private addresses reachable from the internet.

Option C is not sufficient on its own for high availability. Adding a route to the default VPC route table forwarding traffic to the internet gateway makes the VPC internet-accessible but does not ensure high availability.

References:

AWS High Availability and Fault Tolerance:AWS High Availability

AWS Network Load Balancer:Network Load Balancer

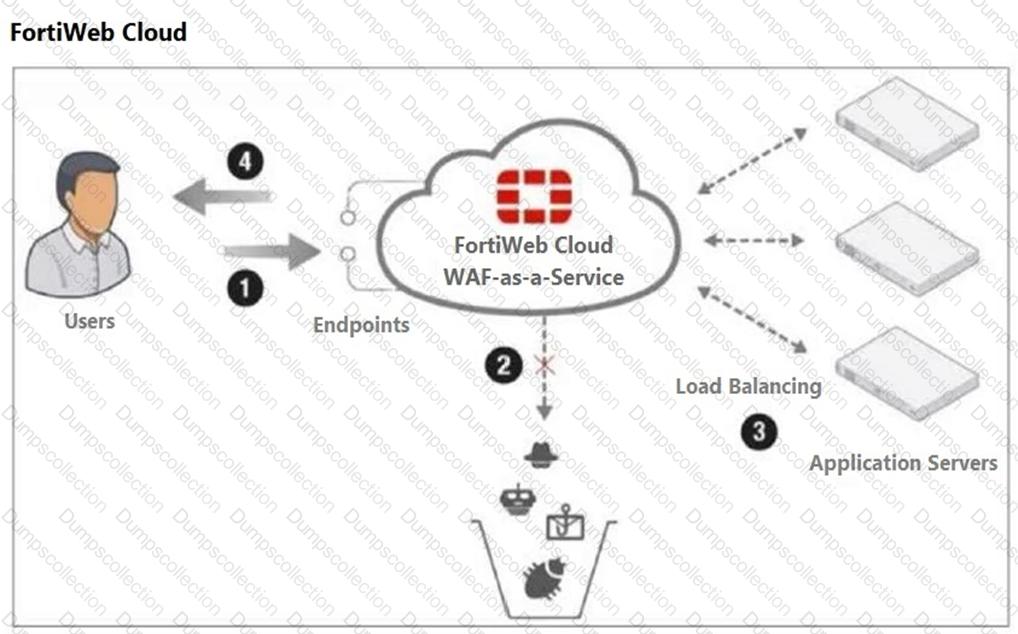

DNS Configuration:

For FortiWeb Cloud to effectively protect web applications, the DNS records for the application servers must be configured to point to FortiWeb Cloud. This ensures that all incoming traffic is routed through FortiWeb Cloud for inspection and protection (Option A).

Traffic Filtering:

FortiWeb Cloud provides robust protection by filtering incoming traffic to block the OWASP Top 10 attacks, zero-day threats, and other application layer attacks. This ensures the security and integrity of the web applications it protects (Option B).

Other Options Analysis:

Option C is incorrect because FortiWeb Cloud can protect application servers across different VPCs or regions, not just within the same VPC.

Option D is incorrect because step 2 does not require an AWS S3 bucket; it refers to the inspection and filtering of incoming traffic.

References:

FortiWeb Cloud Overview: FortiWeb Cloud

DNS Configuration for Web Applications:DNS Configuration

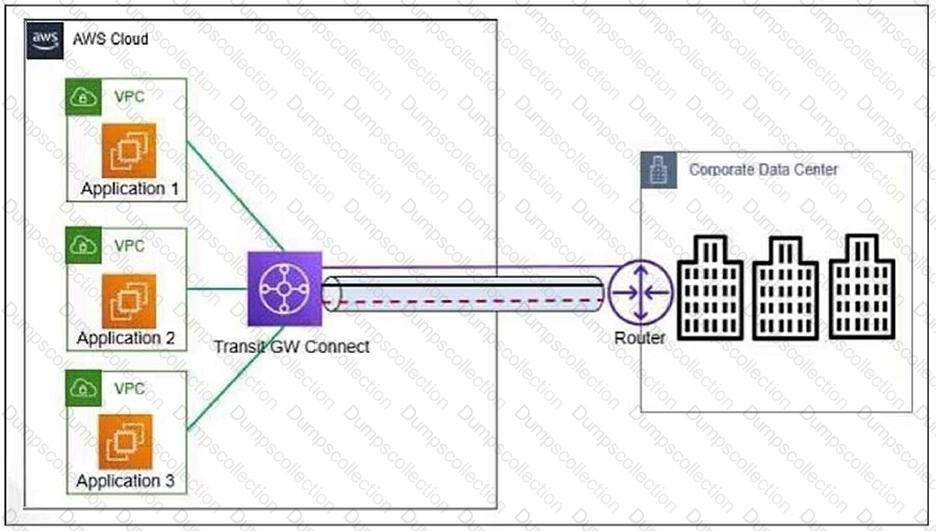

Understanding Transit Gateway Connect:

Transit Gateway Connect is a feature of AWS Transit Gateway that simplifies the integration of SD-WAN networks with AWS. It uses Generic Routing Encapsulation (GRE) tunnels to facilitate this connection.

GRE Tunnels and Bandwidth:

GRE tunnels can dynamically scale to meet increasing bandwidth demands. They allow multiple tunnels between the same endpoints, which can aggregate bandwidth without requiring additional configuration.

Scaling Bandwidth with GRE:

The GRE protocol used by Transit Gateway Connect can support high bandwidth requirements by spreading traffic across multiple tunnels. As demand grows, additional tunnels can be automatically used to handle the increased traffic load.

Comparison with Other Options:

Option A suggests using public IP addresses, which is not relevant to bandwidth scaling.

Option B is incorrect because bandwidth can be increased through GRE scaling.

Option D suggests adding a Transit VPC, which is unnecessary for increasing bandwidth when using Transit Gateway Connect.

References:

AWS Transit Gateway Documentation:AWS Transit Gateway

GRE Tunnels and AWS:AWS GRE Tunnels

Scalability:

FortiGate Cloud-Native Firewall (CNF) is designed to scale seamlessly with your cloud infrastructure, providing the necessary protection without requiring manual intervention for scaling (Option B).

Firewall-as-a-Service:

FortiGate CNF is offered as a Firewall-as-a-Service (FWaaS), which simplifies the deployment and management of firewall capabilities directly in the cloud environment (Option D).

Management:

FortiGate CNF can be managed using FortiManager and AWS Firewall Manager, providing comprehensive management capabilities both from Fortinet's platform and AWS's native management tools (Option E).

Other Considerations:

Option A (carrier-grade protection) is not specifically highlighted as a feature of FortiGate CNF.

Option C (uses AWS Elastic Load Balancing) is incorrect as FortiGate CNF operates independently of AWS ELB, although it can integrate with various AWS services.

References:

FortiGate CNF Documentation: FortiGate CNF

AWS Firewall Manager:AWS Firewall Manager

Web Application Name:

When onboarding a web application to be protected by FortiWeb Cloud, you need to provide a name for the web application. This helps in identifying and managing the application within the FortiWeb Cloud console (Option B).

DNS Records:

To ensure that traffic to your web application is correctly routed through FortiWeb Cloud, you must create DNS records in the domain server that hosts your application. This ensures that requests are directed to FortiWeb Cloud for inspection and protection (Option C).

Other Considerations:

Option A (Waiting for the EC2 instance) is incorrect as it is not a necessary step for onboarding a web application to FortiWeb Cloud.

Option D (Enabling a CDN) is not a mandatory step for onboarding but can be part of a broader strategy for improving performance and protection.

References:

FortiWeb Cloud Documentation: FortiWeb Cloud

Windows Firewall Blocking Traffic:

The firewall on the Windows VM might be configured to block incoming ICMP traffic (ping requests). By default, Windows Firewall is set to block ICMP traffic, which could be a reason for the connectivity issue (Option A).

Security Group Configuration:

AWS Security Groups act as virtual firewalls for instances. If there is no rule allowing ICMP traffic in the security group attached to the Windows server, the ping requests from FortiGate will be blocked. An inbound allow ICMP rule must be added to the security group to permit this traffic (Option D).

Other Options Analysis:

Option B is incorrect because the default AWS Network Access Control List (NACL) allows all inbound and outbound traffic.

Option C is incorrect as AWS does allow ICMP traffic between subnets if properly configured with Security Groups and NACLs.

References:

AWS Security Groups:AWS Security Groups

Windows Firewall Configuration:Windows Firewall
