HP HPE Compute Solutions HPE0-S59 Exam Dumps: Updated Questions & Answers (April 2026)

In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.

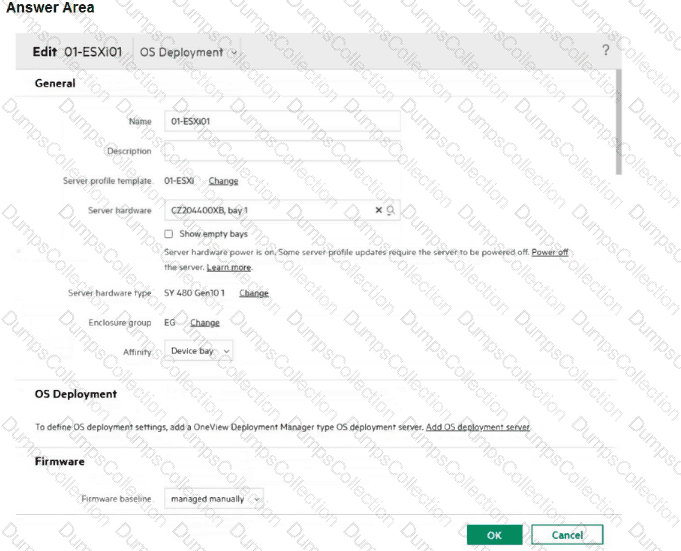

Click the Change link located next to Server hardware type .

In HPE OneView, a Server Profile is a logical software-defined representation of a server. A key component of its definition is the Server Hardware Type , which acts as a " schema " describing the physical characteristics of the server (such as the number of processors, drive bays, and mezzanine slots).

Hardware Incompatibility: Because the HPE Synergy 480 and Synergy 660 have different physical architectures, they are classified as different Server Hardware Types. You cannot simply assign a profile created for a 480 directly to a 660 blade; the " Server hardware " dropdown would show the 660 blades as incompatible.

The Migration Path: To perform this migration, the profile must first be unassigned from its current physical hardware. Once unassigned, clicking the Change link next to Server hardware type allows the administrator to select the hardware type that matches the Synergy 660.

Identity Preservation: By changing the hardware type within the existing profile rather than creating a new one, the profile retains its Virtual Identities (WWNs, MAC addresses, and Serial Number). This is critical in environments with manual storage zoning or strict network security, as it ensures the " new " physical server is recognized by the fabric as the " old " logical server.

Validation: After changing the type, HPE OneView performs a validation check to ensure the existing settings (like Mezzanine card mappings) are compatible with the new hardware layout before allowing the profile to be assigned to the new 660 compute module.

When troubleshooting a server profile in HPE OneView that is in a critical state due to a Link Aggregation Group (LAG), it is important to check if both FlexNICs are configured with the same speed. Inconsistent speeds can cause issues with link aggregation, leading to network instability and performance degradation.

HPE Synergy management rings have a maximum capacity for the number of frames they can manage. With 18 frames already managed in 6 logical enclosures, adding 5 more frames would exceed this capacity. Therefore, the customer needs to create a new management ring for the new logical enclosure to ensure proper management and operation.

In HPE Synergy configurations, compute nodes must have a second CPU installed to access the second fabric. This requirement is due to the architecture of the Synergy compute nodes, where the second CPU is necessary to enable the additional PCIe lanes required for connectivity to the second fabric.

To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.

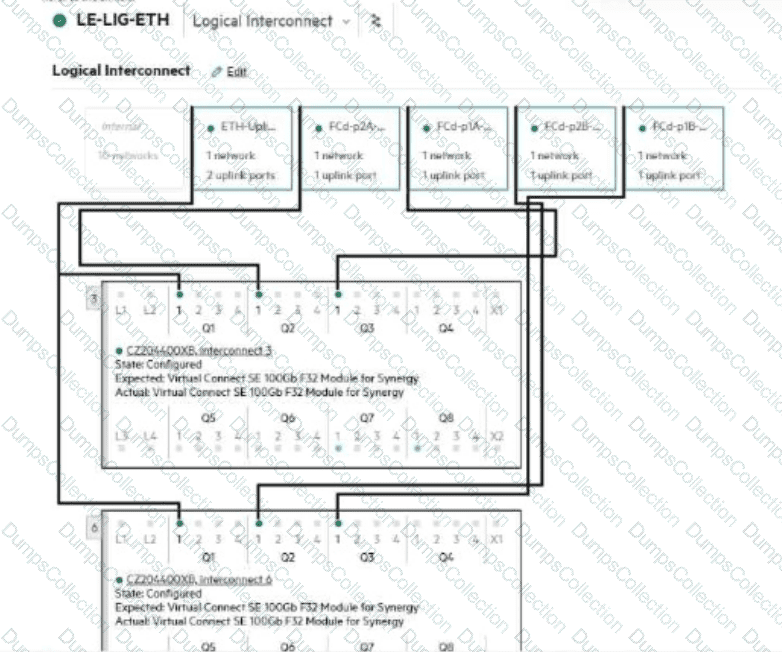

The HPE Synergy Master/Satellite architecture is strictly defined by the compatibility between the " Master " (Primary) interconnect modules and the " Satellite " (Interconnect Link Modules - ILM) modules across multiple frames.

Fabric Generations: HPE Synergy fabrics are categorized into generations. The HPE Virtual Connect SE 100Gb F32 Module is a second-generation (Gen2) " Master " module. It is designed to work with the HPE Synergy 50Gb Interconnect Link Module as its satellite to extend the fabric to additional frames.

ILM Compatibility (The 20Gb vs 50Gb Issue): The 20Gb Interconnect Link Modules mentioned in the proposed new frame are first-generation (Gen1) satellite modules. They were designed to work with the HPE Virtual Connect SE 40Gb F8 Module (Gen1 Master).

According to HPE Synergy cabling and fabric rules, you cannot mix Gen1 satellites (20Gb ILM) with Gen2 masters (100Gb F32).

For the 100Gb F32 Master modules in Frame 1 to extend the Ethernet/FCoE fabric to Frame 2, Frame 2 must use the 50Gb Interconnect Link Modules .

Fibre Channel Connectivity: Unlike the Ethernet fabric, the HPE Synergy Virtual Connect SE 32Gb FC Modules are not master/satellite modules. They are standalone SAN interconnects. Each frame that requires native Fibre Channel connectivity typically contains its own pair of FC modules. They are managed within the same Logical Enclosure in HPE OneView, but they do not use " Interconnect Link Modules " or " stacking " in the way Ethernet masters do.

Why other options are incorrect:

Option A: There is no requirement to " balance " the number of compute modules across frames (12 in one, 8 in another) for a Logical Enclosure to function.

Option C: HPE OneView licensing for Synergy is per-node/per-frame (OneView Advanced). There is no specific " Extended Logical Enclosure " license required to add a second frame to an existing LE; the management infrastructure simply scales as frames are added.

Option D: " Stacking " is a term often used for traditional switches. In Synergy, the 32Gb FC modules provide individual uplinks to the SAN fabric. While they are part of the same logical management entity, the term " stacked " is technically inaccurate for how these modules are interconnected or managed across frames in this specific architecture.
