This statement is false . In an Eth-Trunk operating in LACP mode , if the administrator sets the maximum number of active links to 3 and there is 1 standby link, then when one active member fails, LACP can automatically promote the standby member to active status. The purpose of the standby member is to maintain the configured active-link capacity whenever possible.

Therefore, after one active link fails, the normal expectation is not that the active-link count is reduced from 3 to 2 while the standby link remains idle. Instead, the standby link should participate and replace the failed member, so that the Eth-Trunk continues operating with 3 active links if the standby link and negotiation conditions are normal. This reflects the redundancy and fast recovery capabilities of LACP-based aggregation. HCIA-Datacom highlights that compared with manual mode, LACP provides more intelligent link selection, active/standby management, and fault adaptation. The statement is wrong because it ignores the intended behavior of the standby link in maintaining the number of active forwarding links after a failure.

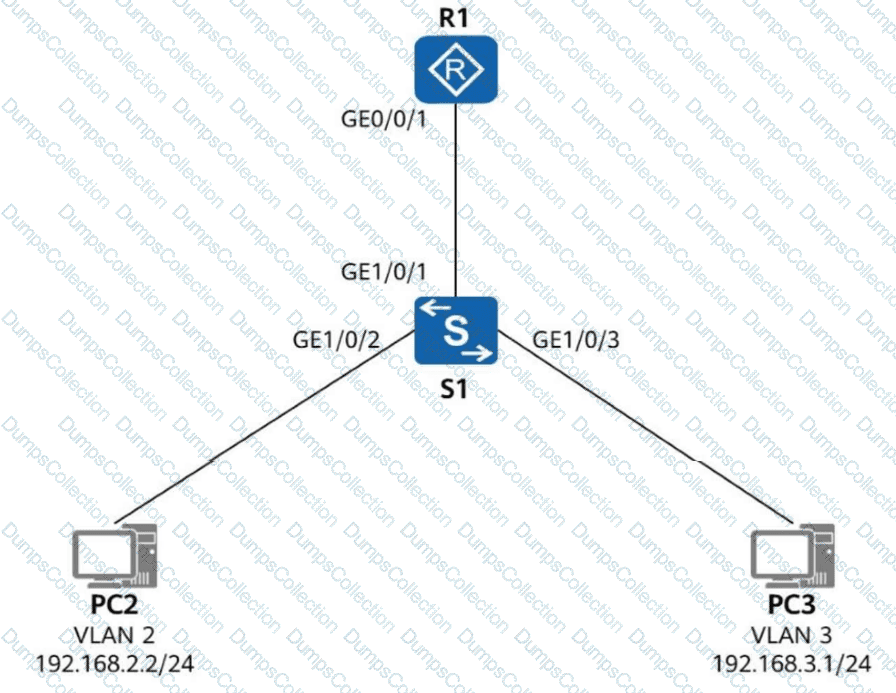

This scenario describes the classic router-on-a-stick inter-VLAN routing design. A single physical interface on R1 connects to switch S1, and multiple sub-interfaces are created on that physical interface to serve as gateways for multiple VLANs. Therefore, if R1 provides Layer 3 gateway functions for VLAN 2 and VLAN 3, sub-interfaces such as GE0/0/1.2 and GE0/0/1.3 must be configured, so option A is correct.

Because PC2 and PC3 are connected to switch S1, S1 learns their source MAC addresses dynamically and stores them in its MAC address table, making option B correct. R1 receives tagged frames from different VLANs on the trunk link and, through its sub-interfaces, can identify and terminate frames for VLAN 2 and VLAN 3, so option C is also correct. Option D is incorrect because hosts in different VLANs do not need to be connected to different physical switches; VLAN separation is logical, not necessarily physical. HCIA-Datacom uses this deployment to explain inter-VLAN communication, 802.1Q trunking, and flexible campus gateway design using limited router interfaces.

The address 224.0.0.1/24 cannot be configured as a normal host IP address by default because it belongs to the Class D multicast address range . IPv4 multicast addresses range from 224.0.0.0 to 239.255.255.255 and are reserved for multicast group communication rather than assignment to host interfaces as ordinary unicast addresses. Therefore, option D is correct.

The other three options are all private unicast address ranges and can be configured on hosts in private networks. 10.0.0.1/8 belongs to the 10.0.0.0/8 private range, 172.16.1.1/16 belongs to the 172.16.0.0/12 private range, and 192.168.1.1/24 belongs to the 192.168.0.0/16 private range. These are commonly used in enterprise and campus networks. HCIA-Datacom teaches that host IP address planning must distinguish between unicast, multicast, loopback, broadcast, and other special-purpose ranges. Multicast addresses identify multicast groups and are processed differently by hosts and network devices, so they are not valid default host addresses for ordinary end-to-end IP communication.

============

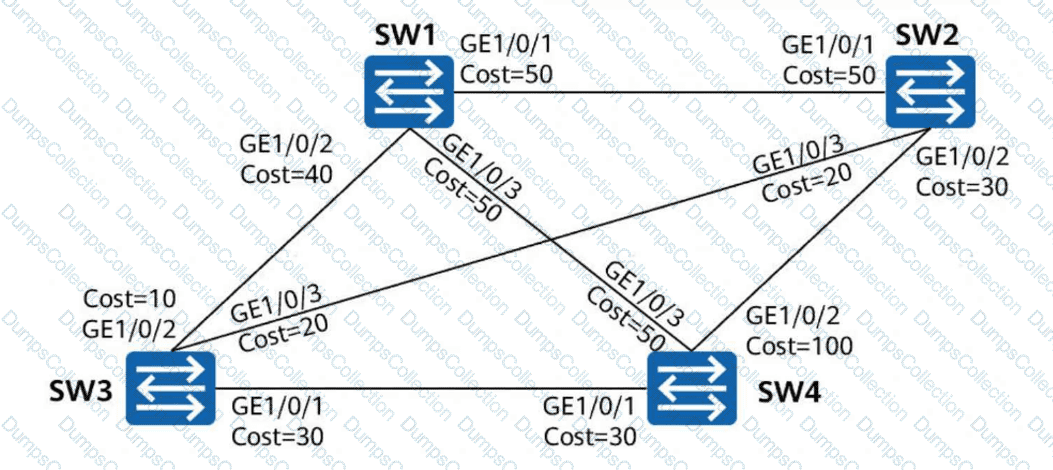

After STP convergence, only ports in the forwarding state participate in active traffic forwarding, while redundant ports may be placed into the blocking or discarding state to eliminate loops. According to the topology and STP role election shown in the question, the valid forwarding path from SW1 to SW4 is SW1 → SW3 → SW4, so option B is correct.

This means that the direct alternative path or the path through SW2 is not the active spanning-tree forwarding path after election and state transition. STP selects paths based on the root bridge, path cost, bridge ID, and port ID. Once the root bridge and port roles are determined, some links remain active and others are blocked to ensure a loop-free Layer 2 topology. HCIA-Datacom emphasizes that the resulting forwarding topology is a tree, not a mesh, even if the physical topology contains redundant links. Understanding the actual forwarding path after STP convergence is important for troubleshooting connectivity, predicting traffic behavior, and verifying whether bridge priority and path-cost settings have produced the intended design outcome in campus switching networks.

============

Several upper-layer management and file transfer protocols use SSH as their secure transport foundation. SFTP is the SSH File Transfer Protocol and operates over SSH, making option C correct. STelnet is secure Telnet implemented over SSH, so option D is also correct. NETCONF commonly uses SSH as its transport protocol for secure configuration management and device orchestration, making option B correct as well.

Option A, DNS, does not use SSH as its normal transport protocol. Traditional DNS operates over UDP or TCP port 53, depending on the query or transfer type. Although DNS security extensions and encrypted DNS variants exist, they are not based on SSH. HCIA-Datacom emphasizes the role of SSH in secure network management because it replaces insecure plaintext protocols and provides confidentiality, integrity, and authentication. In practical Huawei enterprise deployments, SSH-based protocols are widely used for interactive device login, automated configuration delivery, and secure file operations. This question tests recognition of management protocols that inherit SSH’s secure channel rather than protocols that operate independently at the application layer.

============

This statement is false . In campus network VLAN planning, VLAN IDs do not have to be allocated strictly consecutively without any gaps. In fact, leaving some reserved VLAN IDs is often a practical and recommended design approach. VLAN planning should focus on clarity, scalability, maintainability, and service separation , rather than on forcing all VLAN IDs to be contiguous.

For example, an administrator may reserve certain VLAN ranges for user access, voice services, management, wireless services, guest access, future expansion, or specific departments. Such structured planning makes later network expansion easier and reduces the risk of service conflicts or disruptive renumbering. HCIA-Datacom emphasizes that good campus network planning should consider current requirements and future growth. Consecutive allocation may look tidy at first, but it can actually reduce flexibility and make later additions more difficult. Therefore, the idea that VLAN IDs must be assigned consecutively without redundancy to avoid omissions is not a correct design principle. Reasonable reservation and categorized allocation are often more beneficial in real enterprise campus networks.

============

The establishment of an SSH connection includes multiple mandatory phases that ensure both secure communication and authenticated access. First, the SSH client and server perform version negotiation to determine a mutually supported SSH protocol version. Then they carry out algorithm negotiation, during which they agree on the encryption algorithm, key exchange algorithm, integrity algorithm, and other security parameters to be used for the session.

After that, the peers perform key exchange, which is used to derive shared session keys securely over an insecure network. This stage is essential because it enables subsequent communication to be encrypted and protected against interception. Finally, once the secure channel has been established, user authentication is performed so that the server can verify the identity of the client user. This can be done using a password, public key, or other supported authentication method. Therefore, all four options are required phases in the SSH connection establishment process. HCIA-Datacom emphasizes these steps because SSH is a core secure management protocol used to replace insecure protocols such as Telnet and FTP in modern network operation and maintenance.

============

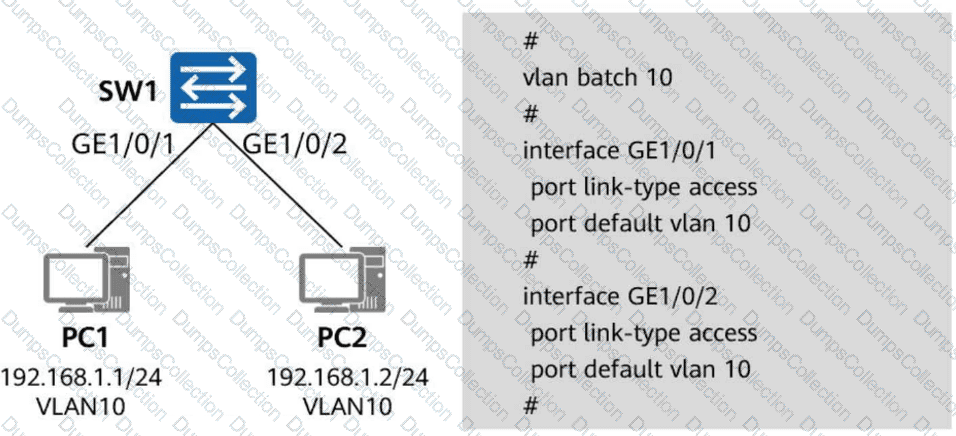

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.

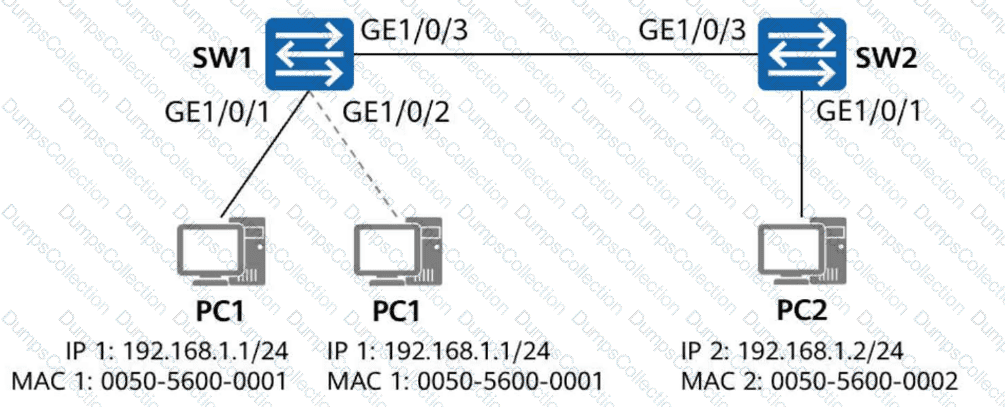

An Ethernet switch learns MAC address entries dynamically by examining the source MAC address of incoming frames. When SW1 first receives frames from PC1 on GE1/0/1, it creates a MAC address table entry mapping PC1’s MAC address to that port. If PC1 later sends frames that arrive on GE1/0/2, SW1 updates the learned entry to reflect the new incoming interface. Therefore, option B is correct: SW1 saves the mapping between PC1’s MAC address and GE1/0/2 and removes or overwrites the old mapping associated with GE1/0/1.

Option A is incorrect because a single dynamic MAC address is not normally maintained on two different ports within the same VLAN at the same time; that would cause forwarding ambiguity. Option C is incorrect because a normal move of one MAC address does not require clearing the entire MAC table. Option D is also incorrect because switches update MAC learning dynamically upon receiving new source traffic and do not have to wait for the previous entry to age out. HCIA-Datacom uses this principle to explain MAC address learning, migration, and troubleshooting of loops or host movement in switched Ethernet networks.

============

The protocol that cannot directly modify device configurations such as interface IP addresses or device names is SFTP , so option C is correct. SFTP is a secure file transfer protocol that runs over SSH and is mainly used to upload, download, and manage files between a client and a network device. It is commonly used for tasks such as transferring configuration files, system software, patches, or log files, but it does not itself provide an interactive or structured configuration modification mechanism.

By contrast, STelnet allows secure remote CLI login, through which an administrator can directly enter commands to change device settings. NETCONF is specifically designed for network configuration management and can modify configurations in a structured manner. SNMP can also modify certain managed object values through write operations when permissions and MIB support allow it, although in practice it is used more often for monitoring. HCIA-Datacom distinguishes between management-plane protocols based on their roles: interactive access, structured configuration, monitoring, and file transfer. This question checks whether the learner can identify SFTP as a file transfer tool rather than a direct configuration protocol.

============
